Window balances and removal clips

Question

Dear Sirs &/or Madams:

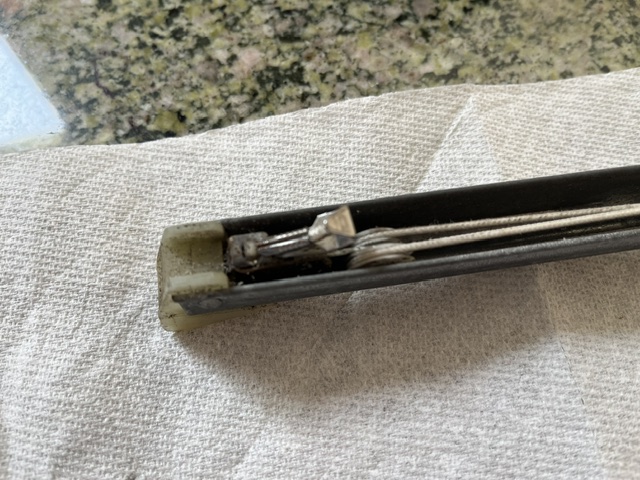

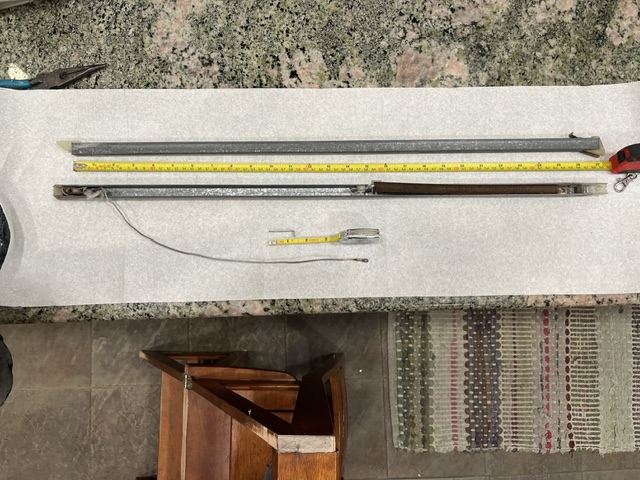

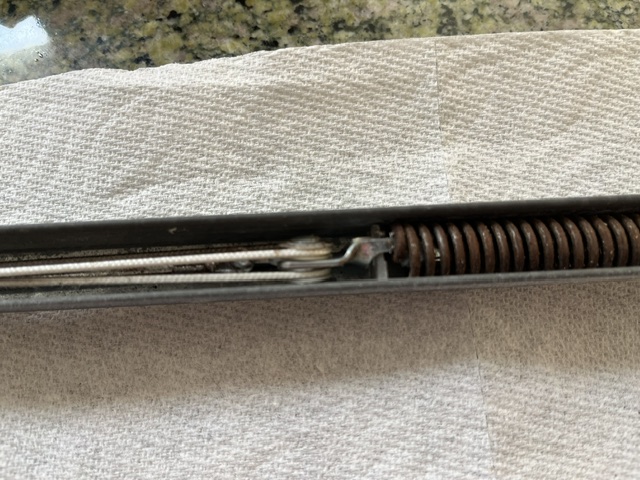

Attached are several photos of Window balances and removal clips from "Crown single hung, 2 sashed windows that I purchased back in 1999?. The window sash weighs 18 pounds, and the balance is 27", measuring the metal only top to bottom. The banance is 1/2 thick. It appeared to have "Coldwell" written on the frame and thn "2?".

The clip is about 1 1/4" in length and 1/4" in width.

Hopefully , you can identify these items.
I'll need two window balances and two clips.

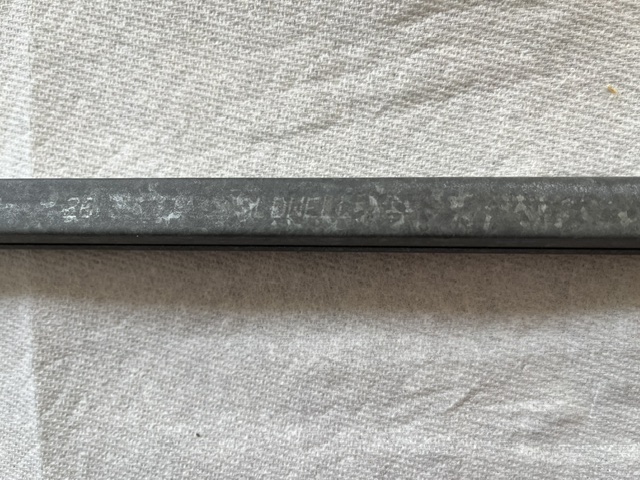

Please find attached the close up pics requested. I also attached the best picture I could get of the stamp. It is worn and difficult to read. Please let me know if there is anything else you need.

Jasmine · Accepted Answer

Thanks for posting! Your window balances can be replaced with either the S351-27 or the S390-27. To determine the correct series, measure the depth of the shoe.

For an 18lb sash, you'll need the 2630 stamp option. A pair of these will support 13 to 19lbs.

The clips you are searching for are the 16-002 Take Out Clips.

Comparison of the S351 and S390 balance shoes.
