2730. / 2740

Professional from Niwot CO
These are a very old vinyl window.

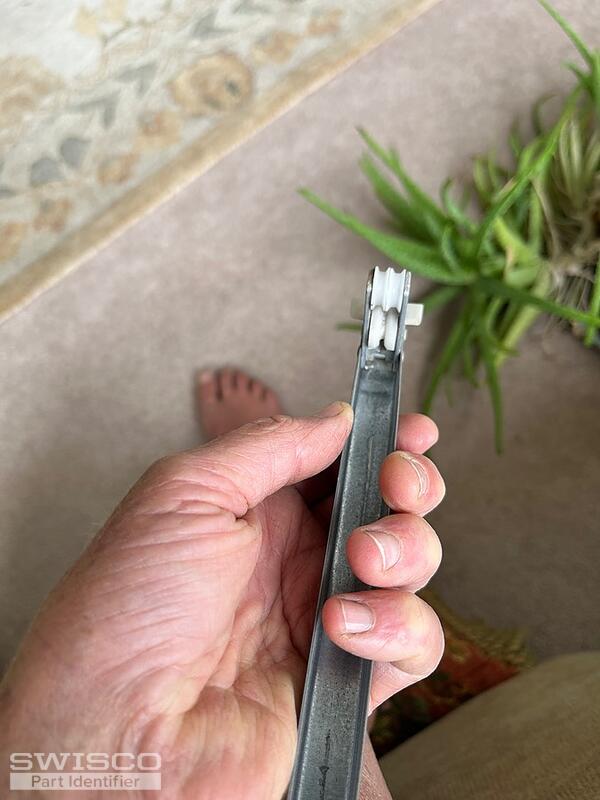

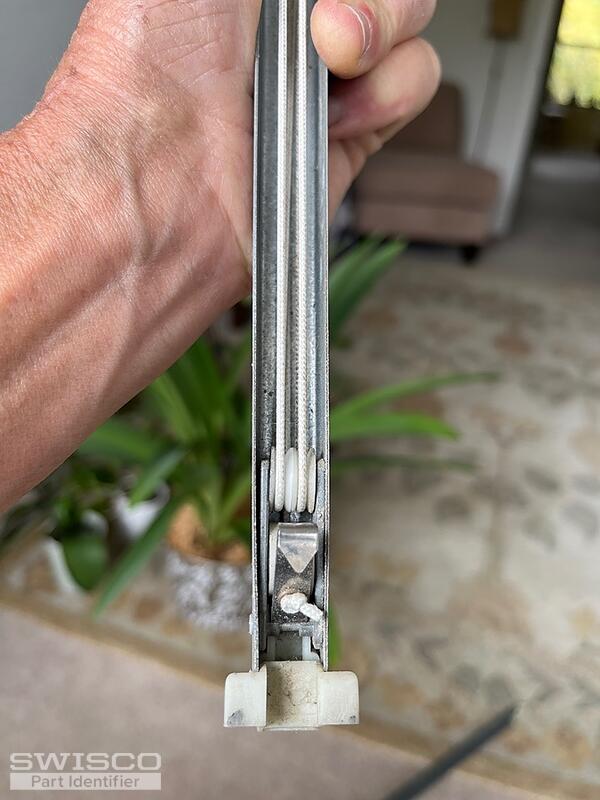

5 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Hey there. I am confident we can help, but we need to see both nylon end attachments, unobstructed and undamaged. I only see the bottom one clearly in these photos. Also, are these balances with different stamps for the same window? That should not be--both balances in a window should have the same stamps. Please weigh the window sash these balances support so we can determine what the right stamp code is.

Professional from Niwot CO
The sash  weighs 18.6 lbs

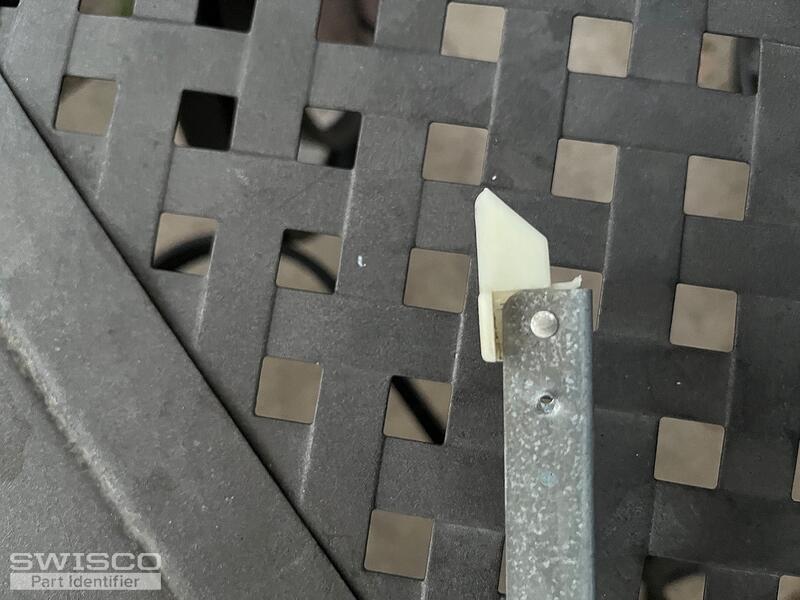

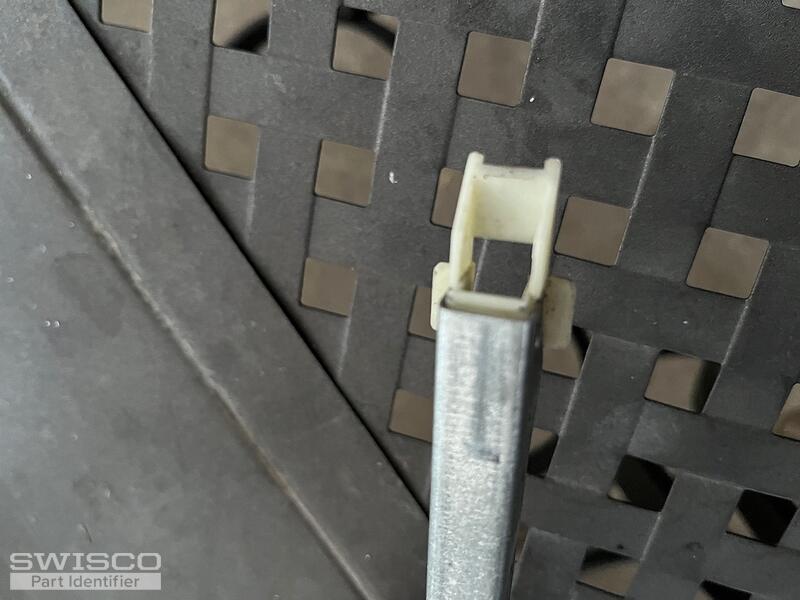

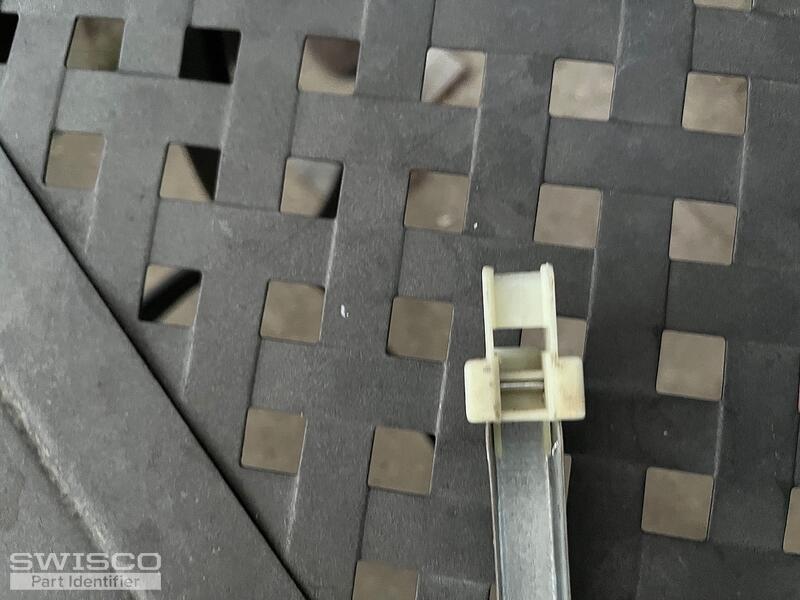

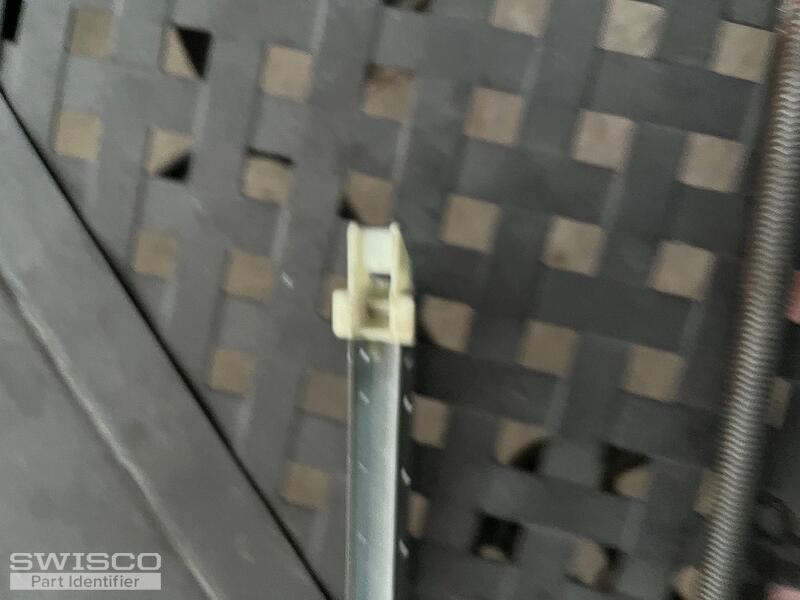

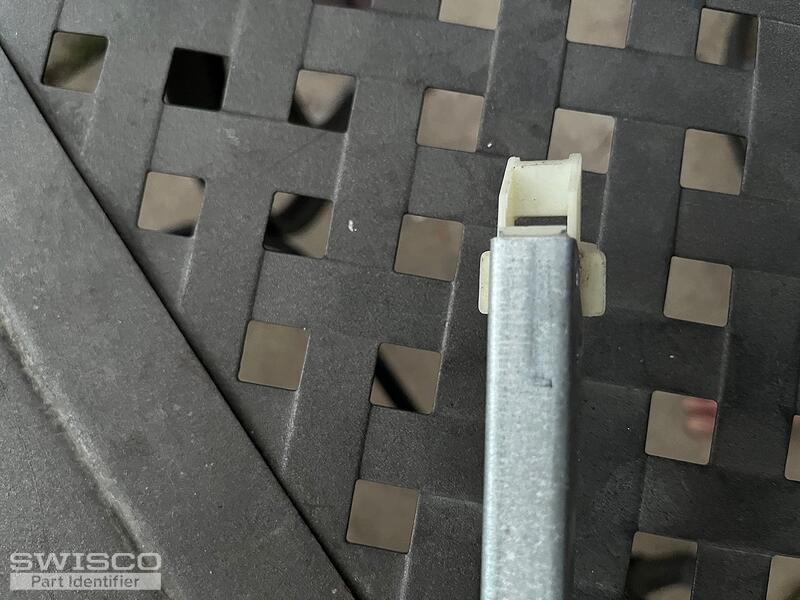

5 user uploaded images
Bob
Bob from SWISCO
SWISCO
Expert

Perfect, thanks. This is either an S380-28 or S385-28, depending on the shoe depth. See below. For a stamp option, go with 2530 (15 through 19 pounds).

Comparison of the S378, S380 and S385 balance shoes.
Comparison of the S378, S380 and S385 balance shoes.
