28" 2740 & 2730 window balance winged guides

Quick Learner from Hemet CA
Aug 15, 2024 12:52 am
28" 2740 & 2730 window balance winged guides

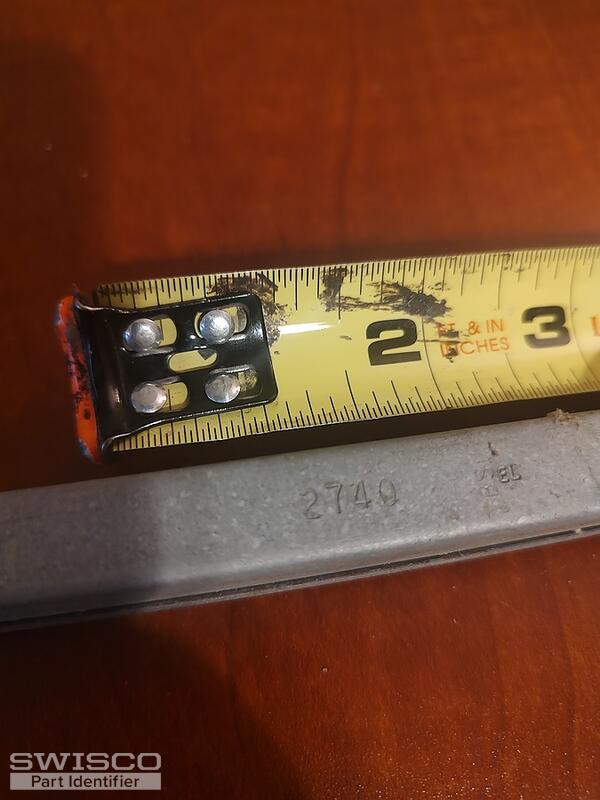

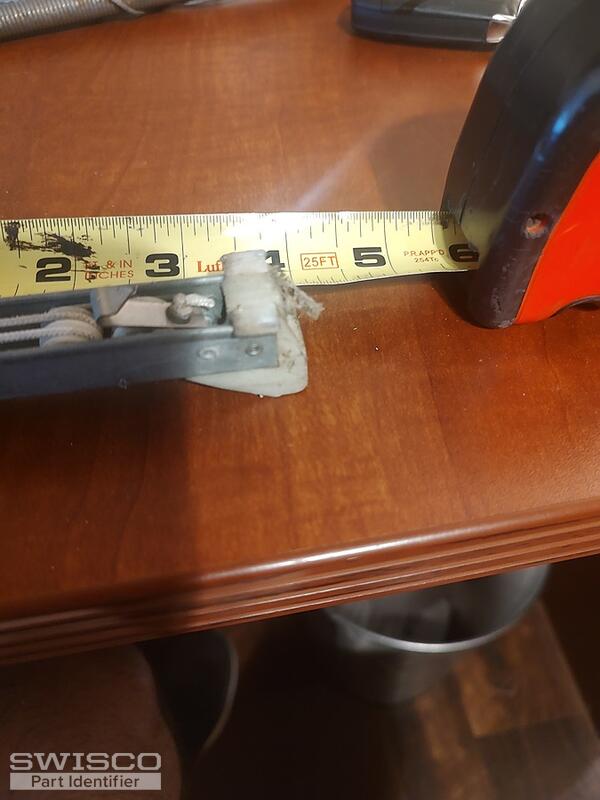

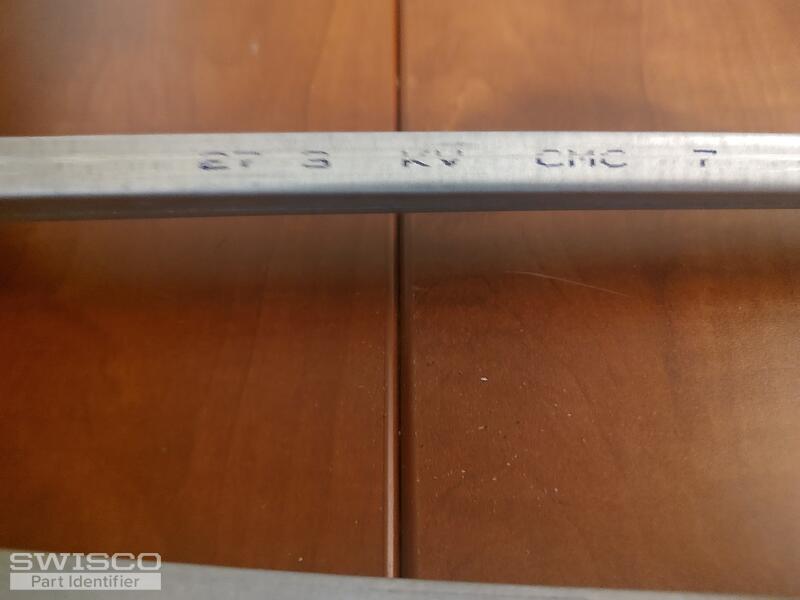

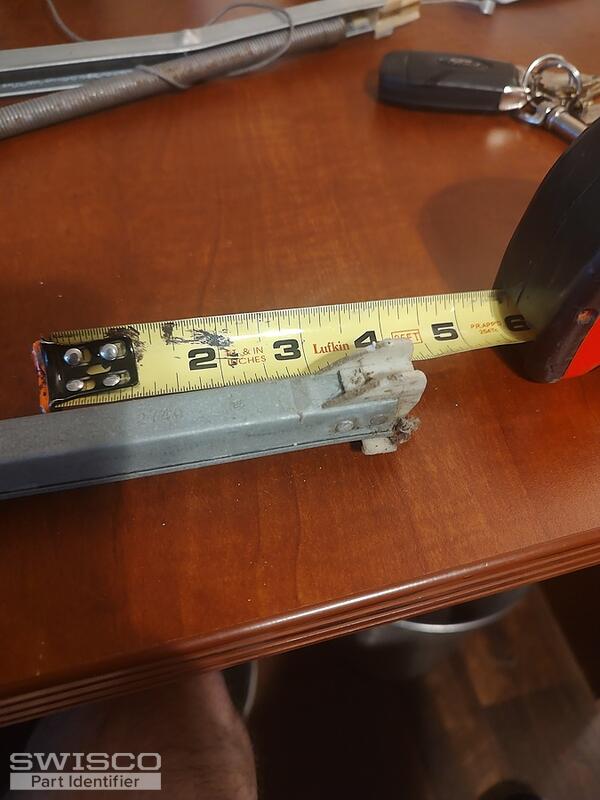

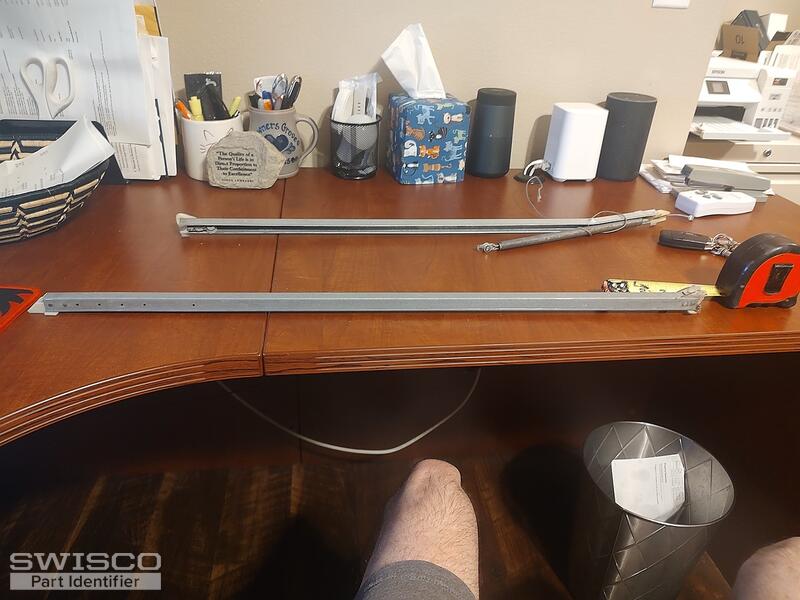

IMG_20240814_214050207 IMG_20240814_214035690 IMG_20240814_214026473 IMG_20240814_214019431 IMG_20240814_214009197_MP
5 user uploaded images
1 Replies
Jasmine
Jasmine from SWISCO
Aug 16, 2024 1:52 pm
SWISCO
EXPERT

Thanks for posting! Your channel balances can be replaced with the either the S380-28 with a 1" shoe or the S385-28 with a 1-3/32" shoe. To be sure of which replacement is right for you, confirm the measurement for the depth of your bottom shoe.

Since you have two different stamps here, it may be a good idea to confirm the weight of the sash; especially if the balances were removed from the same window.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
