28 3 dv cmc 7

Handy Person from LAs Vegas

Feb 12, 2025 7:48 pm

Hello I need to replace two window channel balances. The print on them is 28 3 dv cmc 7, the metal part appears to measure 29 inches though.

(I am relatively unfamiliar with window channel balances so the 28 print versus the 29 inch measurement is confusing me) The window weighs around 40 lb.

I'd love help identifying a replacement! Thank you!

6 Replies

Lauren from SWISCO

Feb 13, 2025 8:49 am

Hello, thank you for posting,

We can assist with replacements, but to further review, we will need to see the balance removed where we can see clear images of the top and bottom nylon attachments.

We will also need to see a picture of the inside of the metal channel where we can view the connection point between the spring and pulley system. From there we can narrow down the correct series for your window. Thank you!

Handy Person from LAs Vegas

Feb 26, 2025 10:44 pm

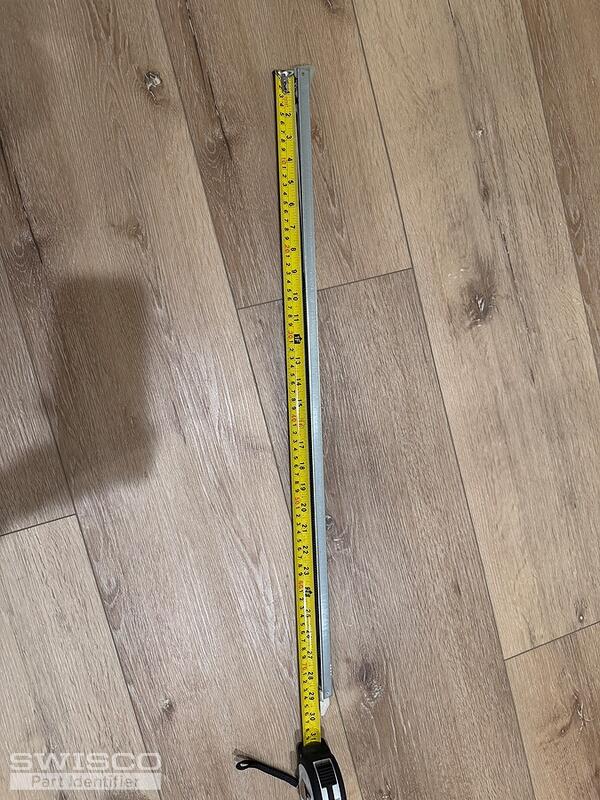

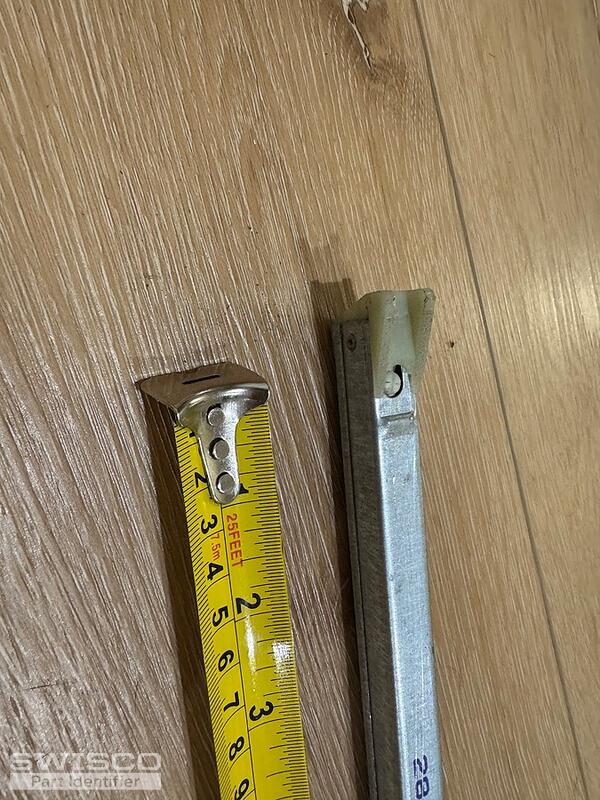

I have attached the pictures! Please let me know what the best match may be!
thank you :)

5 user uploaded images

Lauren from SWISCO

Feb 27, 2025 10:29 am

Hello, thank you for posting,

With these attachments, please see the Series 395 channel balance as a replacement. Take a look at the S395-29 balance.

Are you able to double check the weight of the window sash? The original 28 3 stamp indicates the spring tension is rated to support a 16-23 pound window sash. This balance strength would not support a 40 pound window. Let me know to move forward!

Handy Person from LAs Vegas

Feb 27, 2025 11:55 am

That's probably right then! I'll go ahead and order those, thanks for the help.

Lauren from SWISCO

Feb 27, 2025 11:58 am

No problem!

The 28 3 would translate to a 2830 stamp option on the S395-29 product page when ordering. Let us know if you have any future hardware questions!
