2820 and 2830 PSI

A quick learner from Bakersfield, CA says:

October 2, 2022

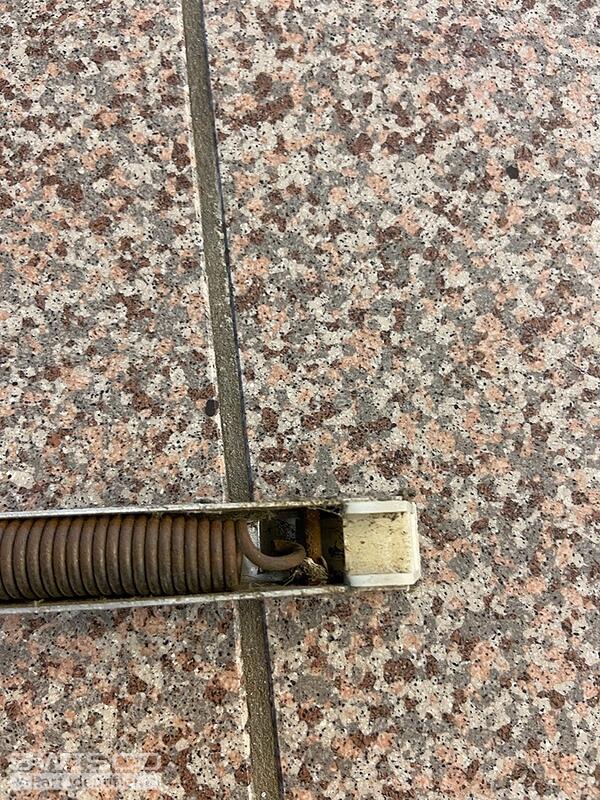

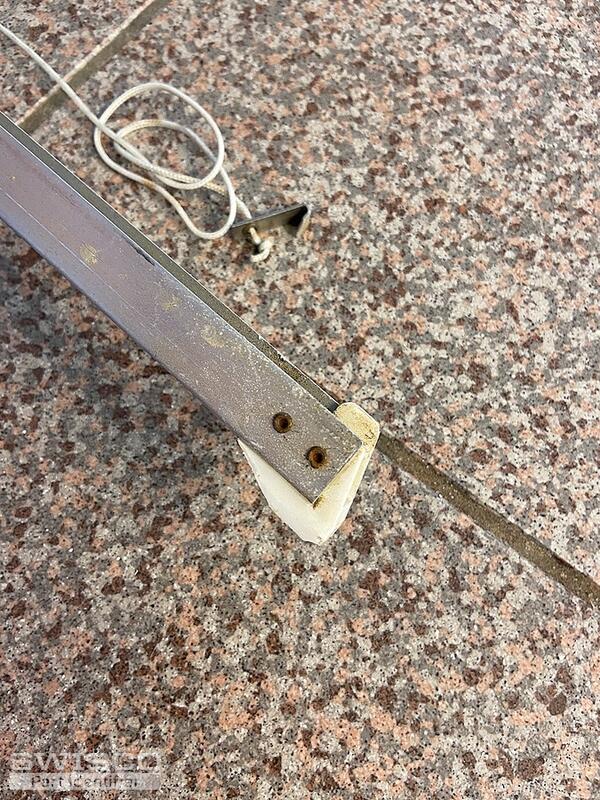

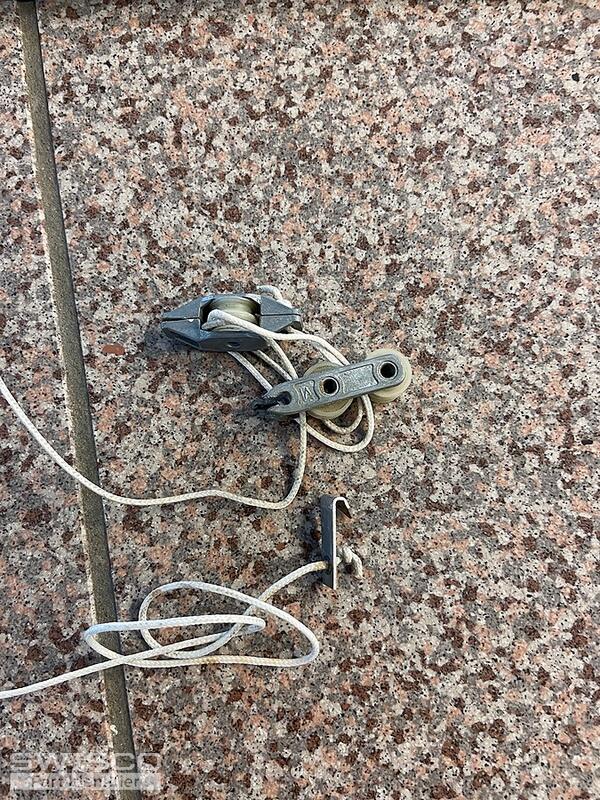

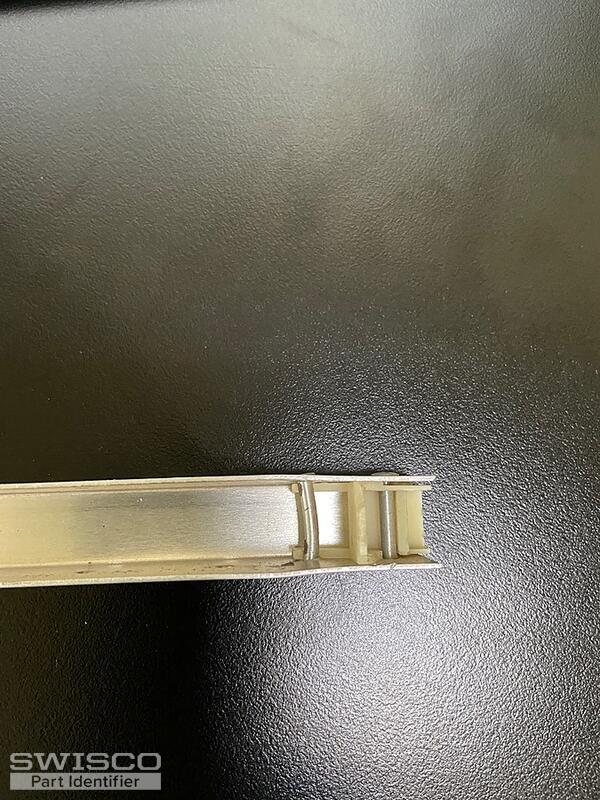

I only have a couple of damaged balances and the rest are missing from the windows all together. They are 29" long, and 9/16" wide. I have two windows that have the 2830 size, and 3 windows that have the 2820. Will you please help me determine what hardware I need to repair these windows? The windows are metal frame, and probably from the 1980's.

Thank you so much.

Thumbnail of the uploaded file named IMG_3143.JPG

Thumbnail of the uploaded file named IMG_3147.JPG

Thumbnail of the uploaded file named IMG_3151.JPG

Thumbnail of the uploaded file named IMG_3153.JPG

Emily from SWISCO responded:

October 7, 2022

Hi there!

We can certainly help but I'll just need one more piece of information in order to do so. Can you show us a photo of an undamaged top fitting on your balance? Once I see that, I can identify what Series of balance you need.

A quick learner from Bakersfield, CA says:

October 7, 2022

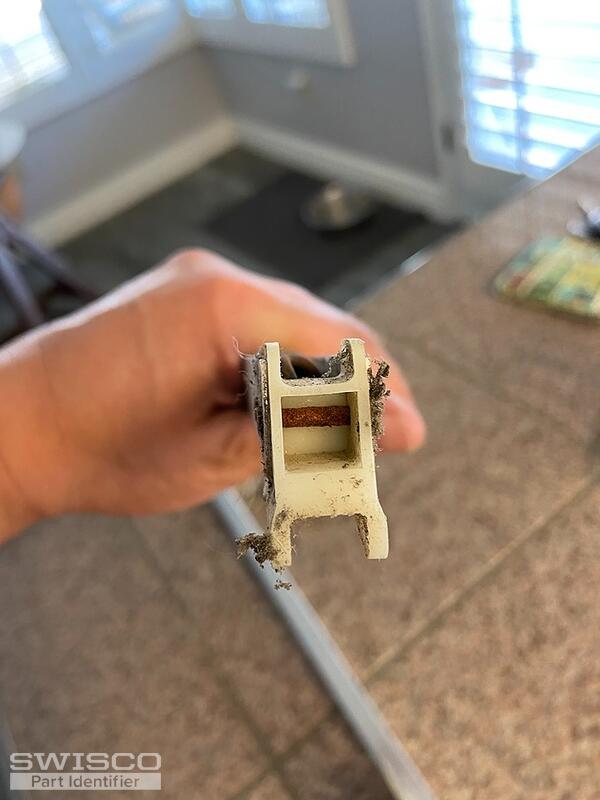

I sent pics of those yesterday by email, but I've also uploaded them here now.

Thumbnail of the uploaded file named 9F0284C6-A29E-44D5-AB52-9AB8F29F03BD.jpeg

Thumbnail of the uploaded file named C808FD83-BAB3-4FC7-9B9C-34E112146797.jpeg

Emily from SWISCO responded:

October 7, 2022

Your top fitting is too damaged, unfortunately. In order for us to provide a recommendation, we'd like to see an undamaged version of your top fitting.

A quick learner from Bakersfield, CA says:

October 7, 2022

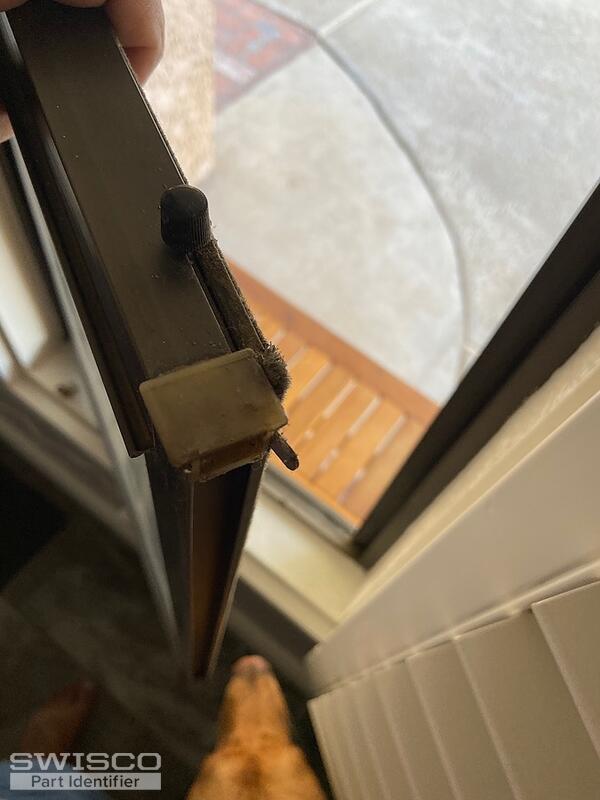

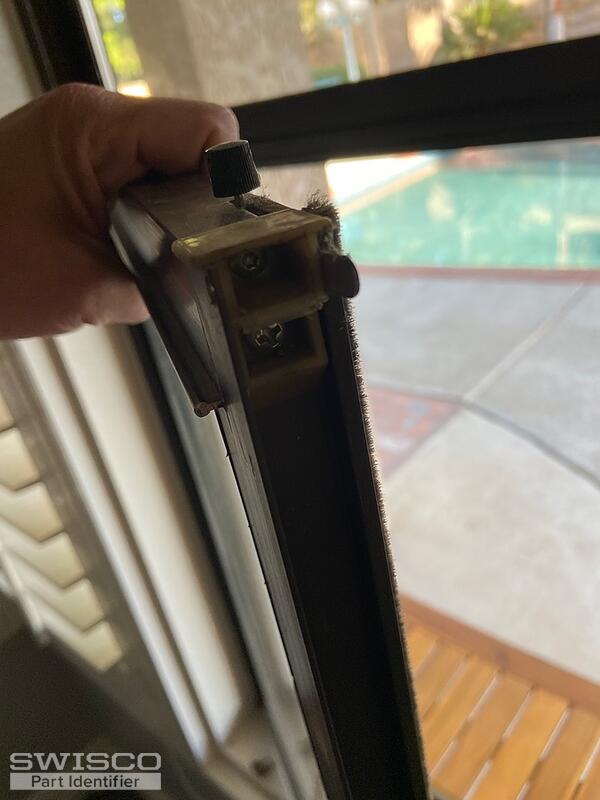

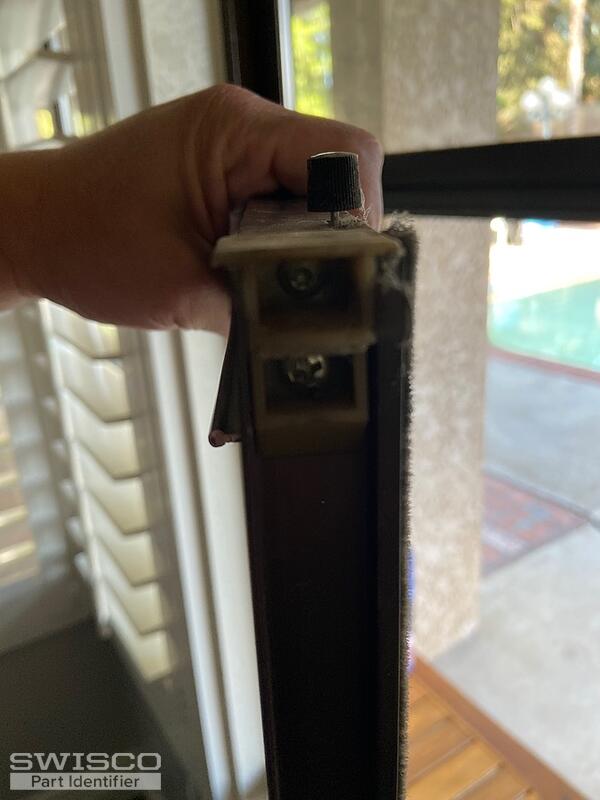

I don't seem to have any undamaged ends n the channel balances. There s a piece on a few of the windows that the balance would fit in, I have included pics. Hopefully that helps?

Thumbnail of the uploaded file named CFD223BA-E888-482B-BB91-7C15023BAC9F.jpeg

Thumbnail of the uploaded file named C245D43E-6AD7-4033-A6B6-AFA3665CE0F2.jpeg

Thumbnail of the uploaded file named EDA64E47-02CF-4211-AF52-B79C59244CCD.jpeg

Emily from SWISCO responded:

October 7, 2022

I'm afraid these new photos don't help us ID your balance. Is there an identical window in the house? If there is, we can use that balance's top fitting as a reference.

A quick learner from Bakersfield, CA says:

October 8, 2022

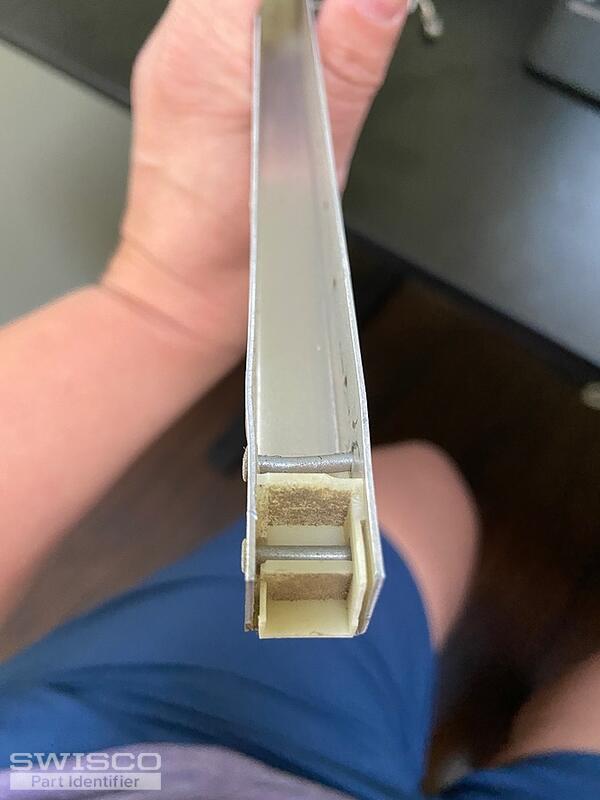

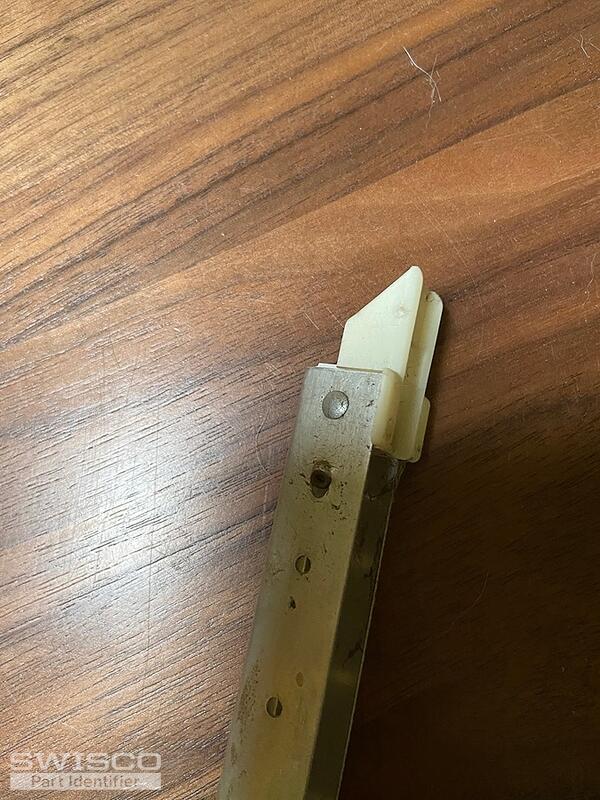

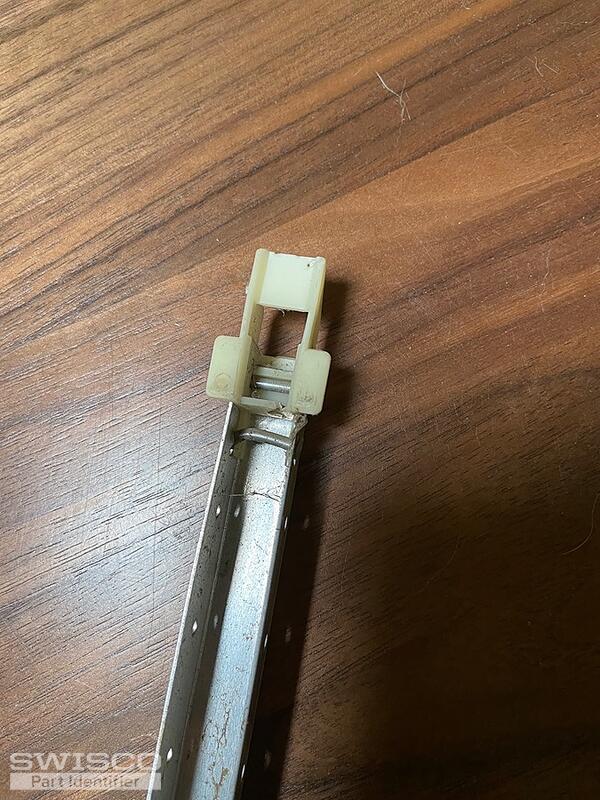

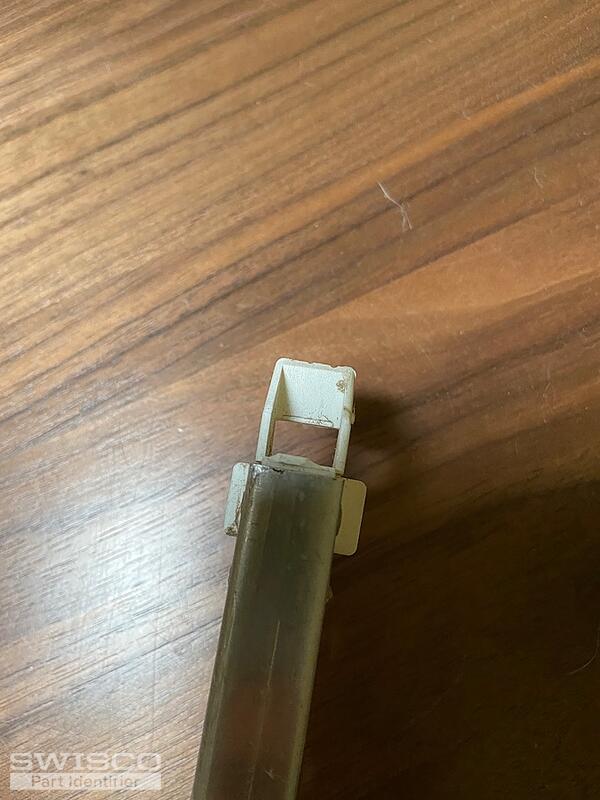

I found an undamaged one! Hopefully now we can find the right balance. Also is there a top piece that these clips in to, like in the pictures I sent at 11:45 am on 10/7? Do you have those pieces as well?

Thumbnail of the uploaded file named EC2F5D61-9EB7-4DB6-8FDF-8D153F704423.jpeg

Thumbnail of the uploaded file named EA0B3324-382D-4B30-8423-9879BB243155.jpeg

Thumbnail of the uploaded file named 5494BC5A-37C5-49B4-A511-A0F4F963F71C.jpeg

Tom from SWISCO responded:

October 10, 2022

Hey there! Emily isn't here today but I'll do my best to help.

Reviewing these fittings, my recommendation would be our Series 395. This has a 19-005 top and 15-001 bottom nylon fitting, so as long as these match up you should be good to go.

Detail of 19-005

Detail of 15-001

29" Series 395 Channel Balance

S395-29

$10.87

Channel Balance Top, Winged

19-005

$0.74

Channel Balance Shoe, 1-1/8" Depth

15-001

$0.74
