283 EX CMC 7 Channel Balance

A quick learner from San Jose CA says:

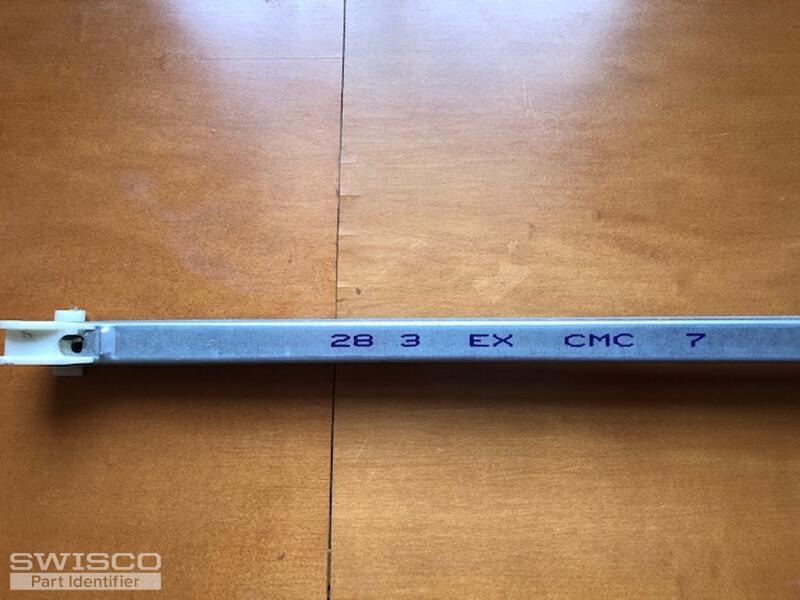

I need the following sliding window channel balance - model 28 3 EX CMC 7.

What part should I buy? Thanks!

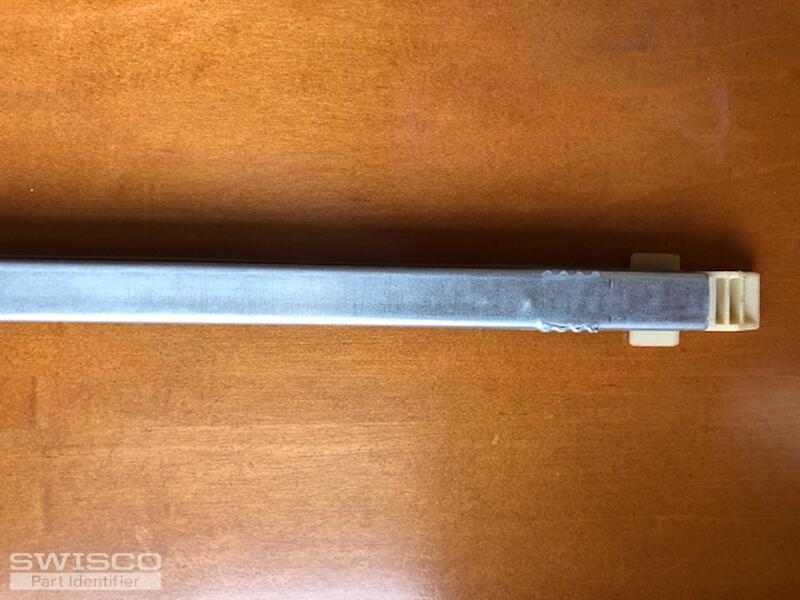

Thumbnail of the uploaded file named ChannelBalance1.jpg
Thumbnail of the uploaded file named ChannelBalance2.jpg

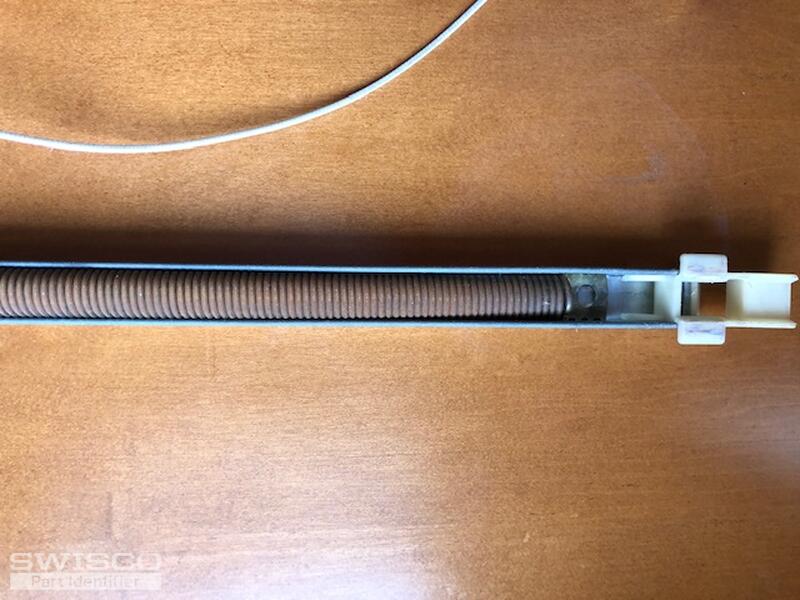

Thumbnail of the uploaded file named ChannelBalance3.jpg

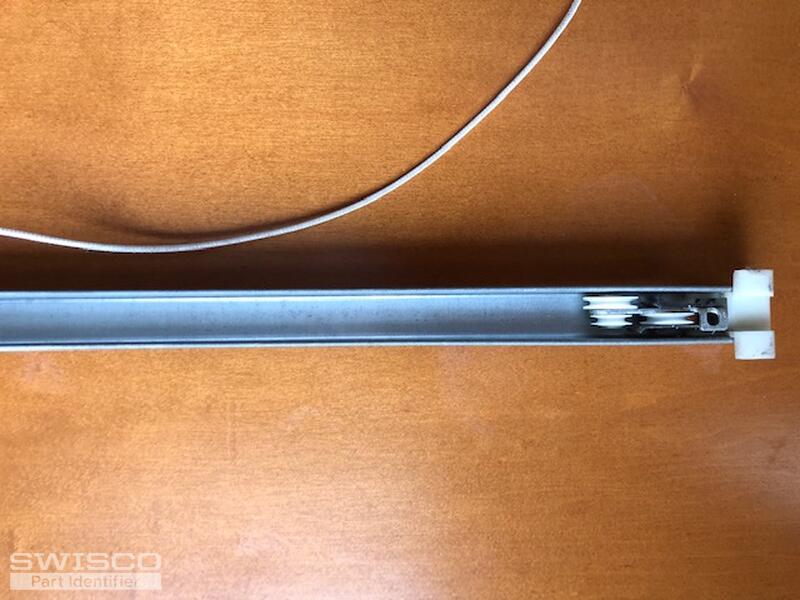

Thumbnail of the uploaded file named ChannelBalance4.jpg
Profile picture of Emily
Emily from SWISCO responded:

Hello!

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need a 2830 stamp option.

If you have any questions just let us know!
