S380-29

29" Series 380 Channel Balance

Name: 29" Series 380 Channel Balance
SKU: S380-29
Price: 11.1 USD
Availability: InStock

Product Code: S380-29

$11.10/each

Quantity	Price
1-11	$11.10
12-49	$9.99
50-99	$9.44
100-249	$8.88
250+	$8.33

Please Note: Bulk pricing applies only to purchases of the same option

Discounts starting at 12 pcs.
View Bulk Pricing

How to measure the length of the Series 380 channel balance.

Product Description

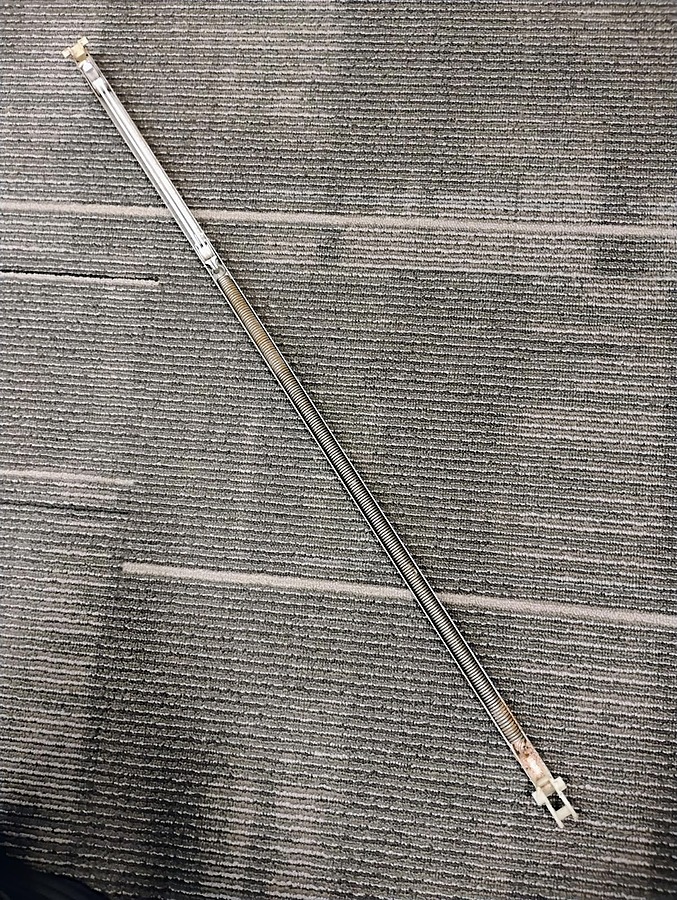

This is a Series 380 channel balance for non-tilt windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

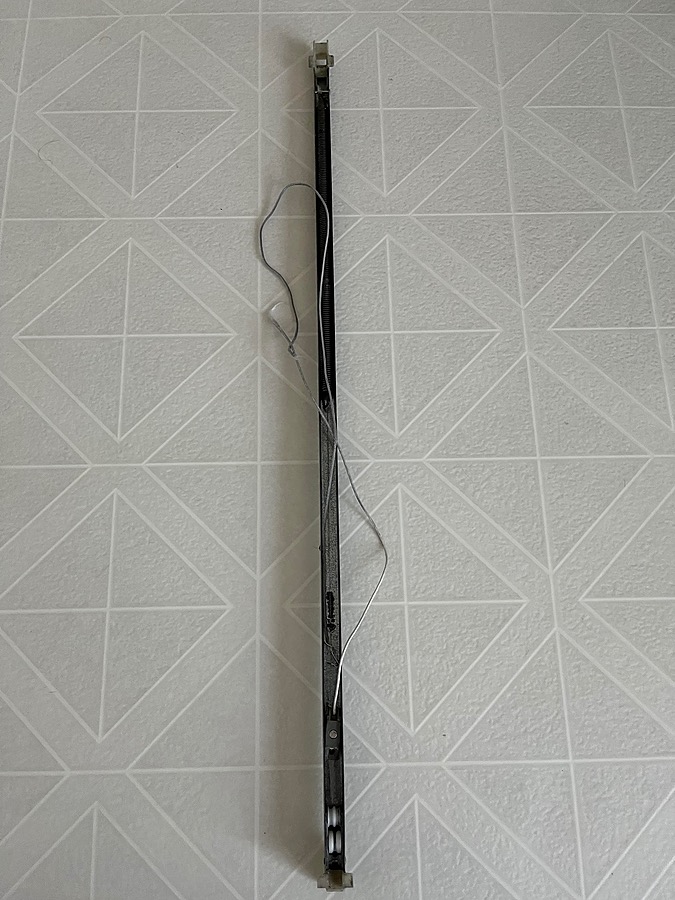

This balance has a 29" long metal channel. When determining the length, do not include the attached fittings. Only measure the metal channel.

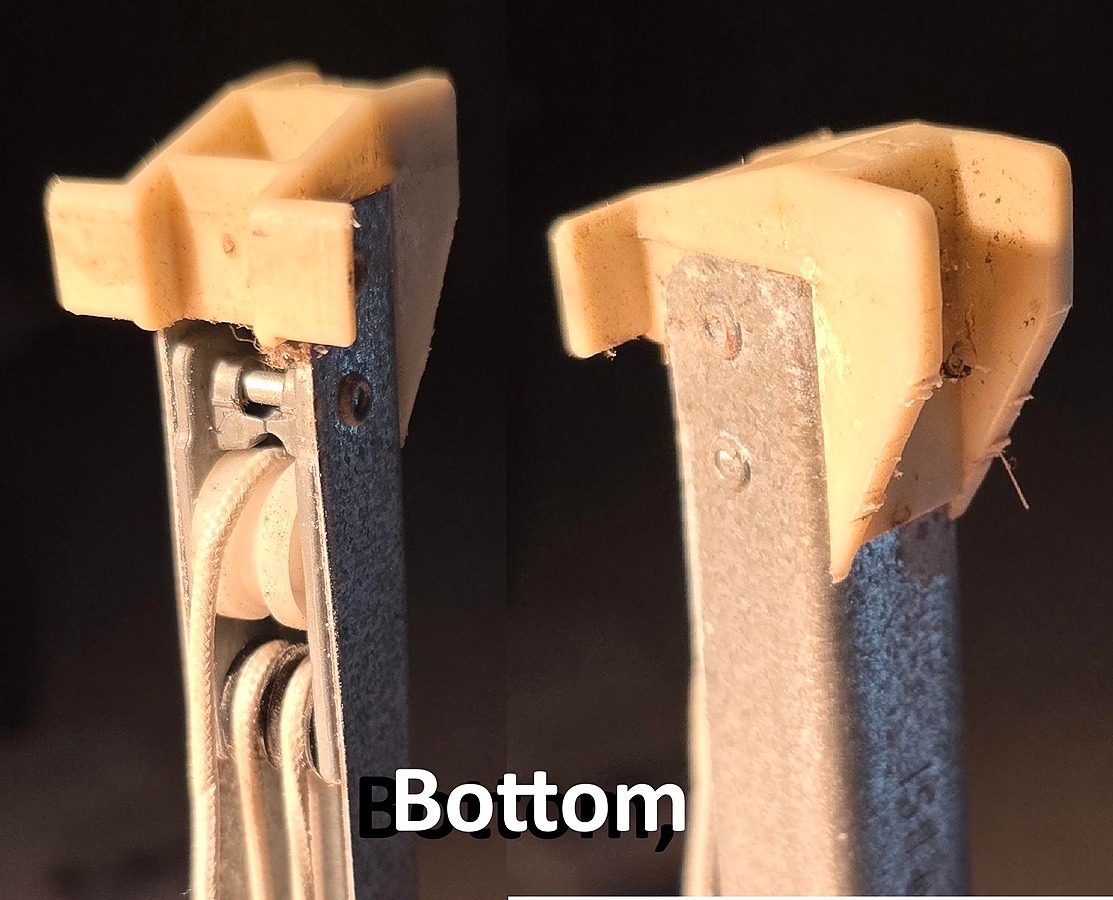

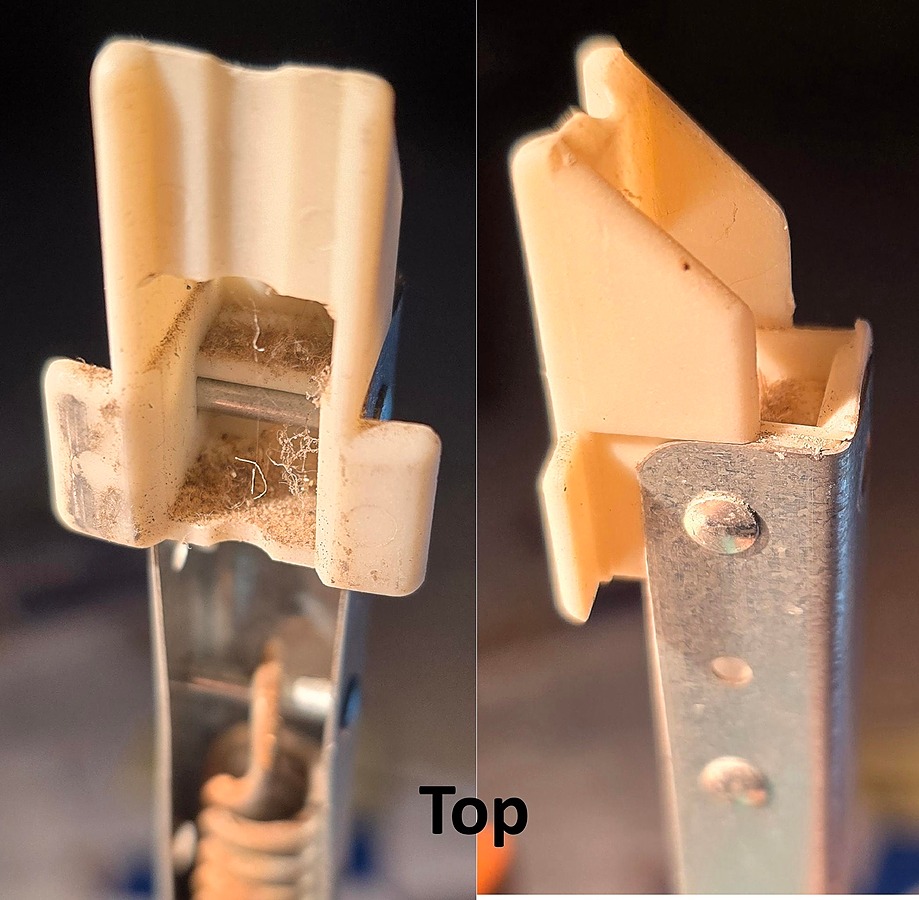

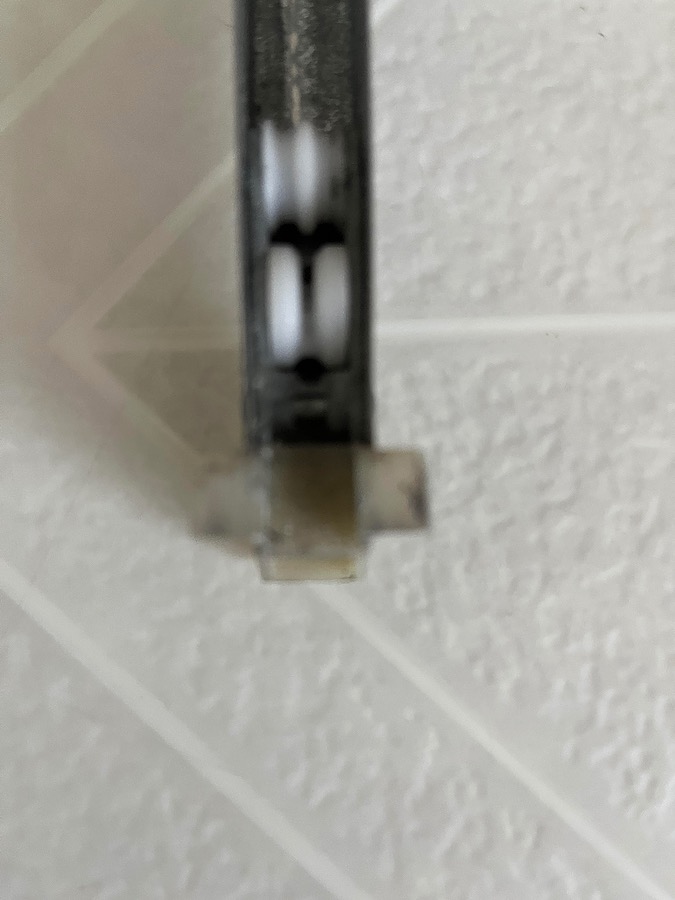

Comes fully assembled with the 19-005 top and 15-005 (1" deep) bottom fittings and will be ready to install out of the box.

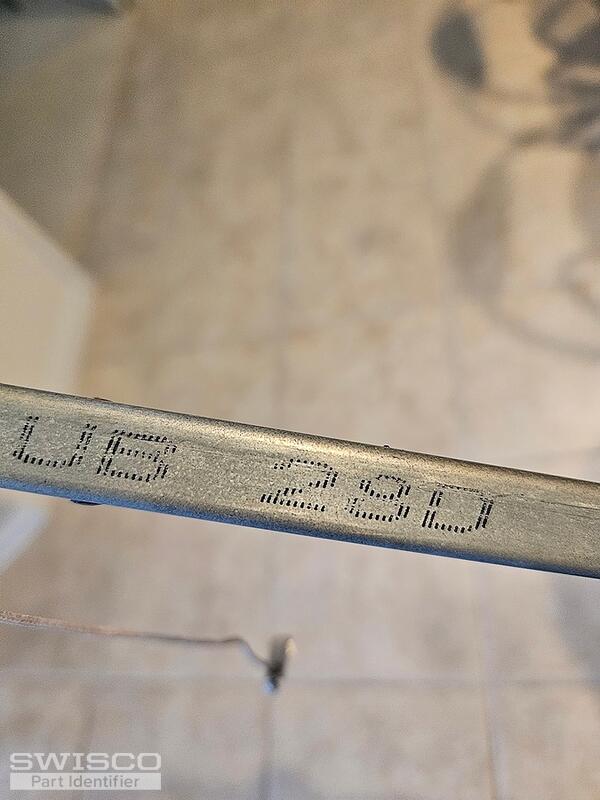

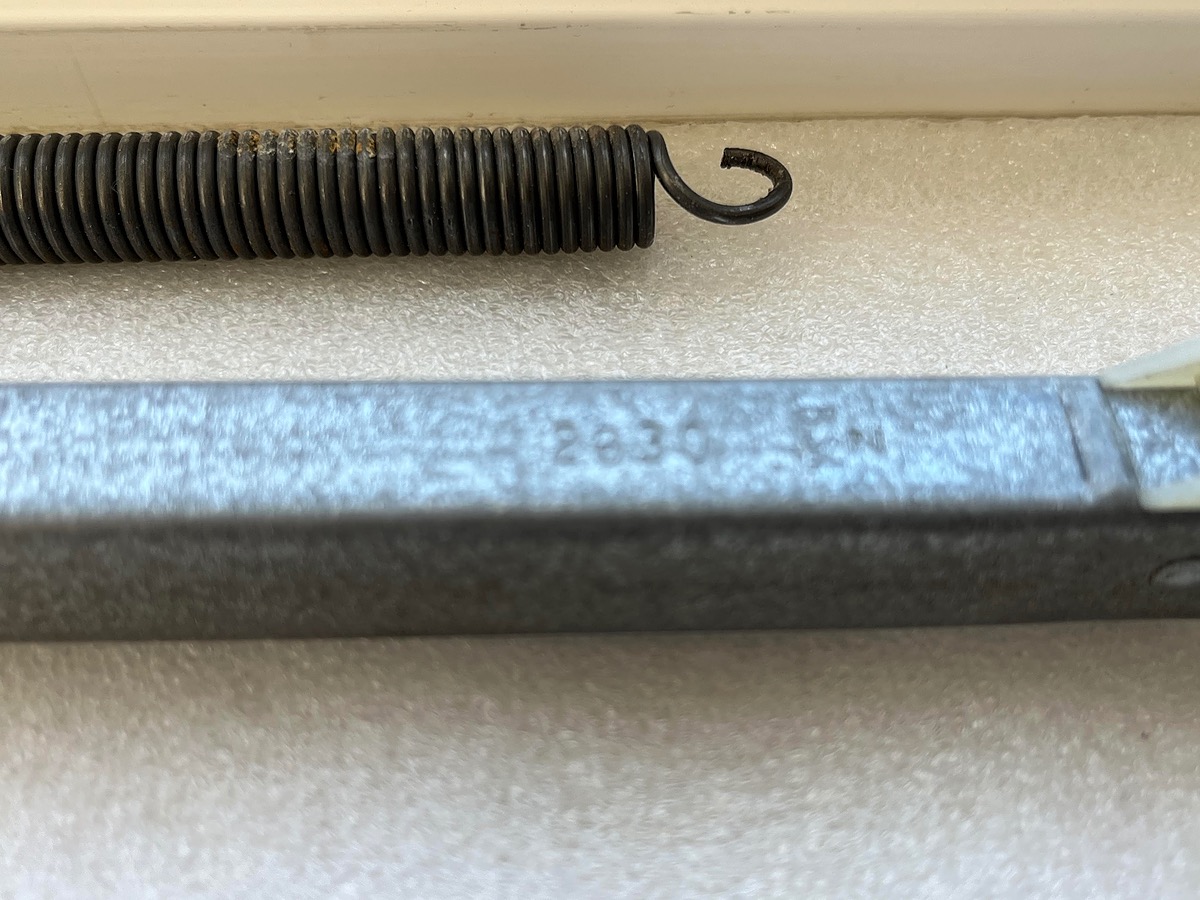

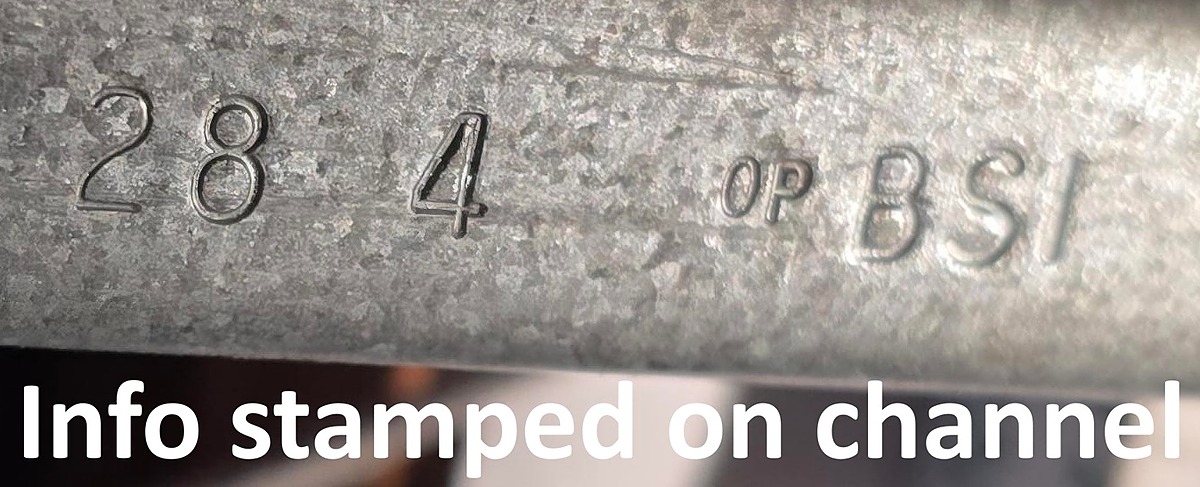

The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
The width of the metal channel measures 9/16" but is considered 1/2" in the trade.
Can work for either the left or right side of the window interchangeably.

Stamp Option	Sash Weight Range
2810	7 to 12 lbs
2820	12 to 16 lbs
2830	16 to 23 lbs
2840	23 to 28 lbs
2850	28 to 32 lbs
2860	32 to 35 lbs
2865	35 to 39 lbs
2870	39 to 42 lbs
2875	42 to 45 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Good Idea!

Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.

Helpful Tip!

The stamp option is a code that indicates how much weight a pair of balances can support. You can use the stamp on your original channel balance as a reference in most cases, or you can weigh your sash and refer to the chart above. If your sash’s weight falls outside the weight ranges listed on that chart, or you are still unsure how to proceed, ask our experts for help.

Guides

How to replace a channel balance

Related Item(s)

15-005

$0.74

Winged Channel Balance Shoe, 1" Depth

5/8" Sash Guide, Howmet

Channel Balance Top, Winged

Customer Questions & Answers

Discussion	# Of Replies	Last Post Date
Window Repair	2	Apr 11, 2014
channel balance option weight differences	4	Jan 10, 2014
Window balance	4	May 28, 2023
Replace Harcar window balance rods	2	May 22, 2023
less than 1" shoe	2	May 19, 2023
Need Replacement Channel Balance	8	May 18, 2023
Window balance	2	May 11, 2023

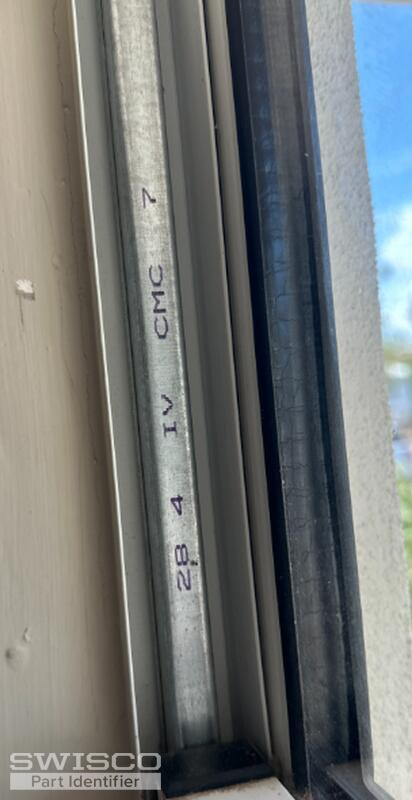

Searching for 28 5 AX CMC 11	4	May 9, 2023
