28C Channel Balance

A quick learner from Florida says:
June 24, 2019

Hi,

I would like to order a pair of channel balances. The current channel balance indicate 28C inscribed on it. It is half an inch wide and 29 inches in length.

It's for a non- tilting window.

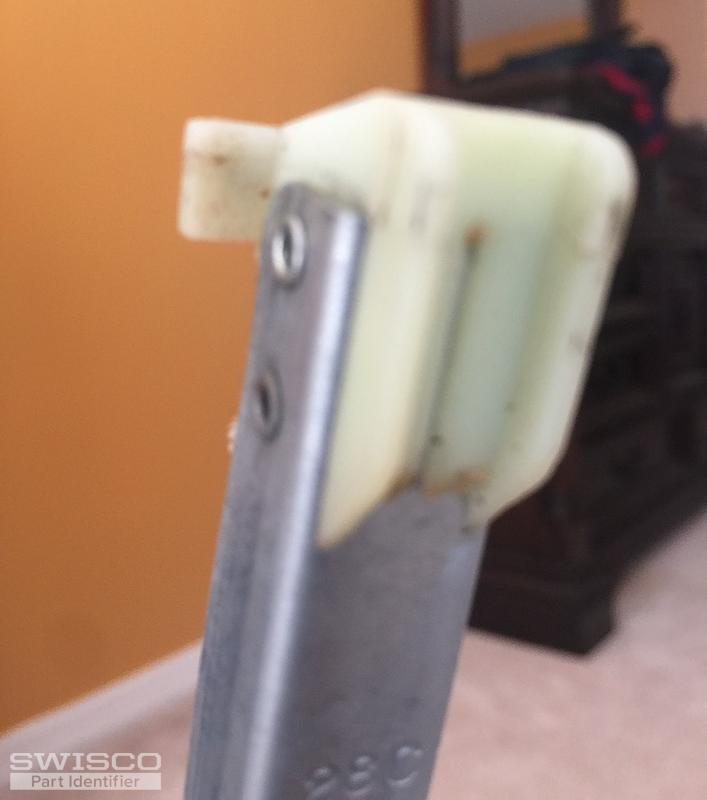

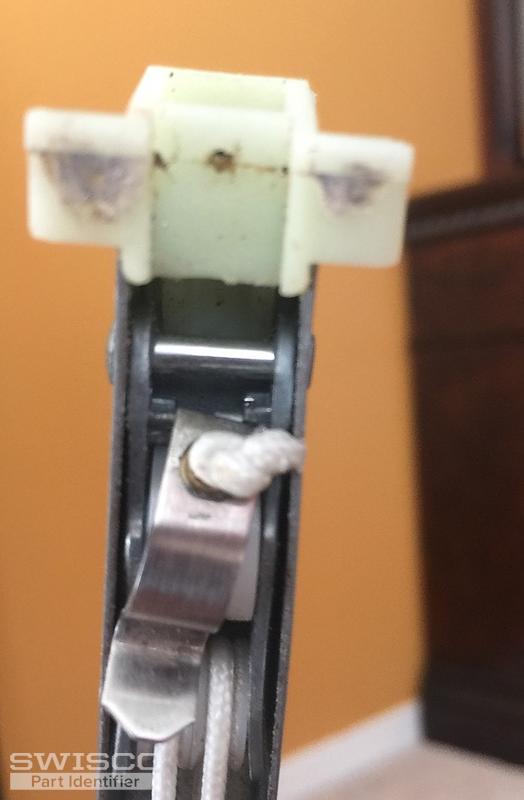

It seems like S380 or S385 but is not sure about the shoe. Based on my measurement of the shoe it's 30/32 of an inch.

Any help would be much appreciated.

Thanks

B

Thumbnail of the uploaded file named 5E647837-1370-4DE9-9200-CEE93054D033.jpeg
Thumbnail of the uploaded file named 9D708E3C-B9E6-4B38-923A-388FA608BEE4.jpeg
Thumbnail of the uploaded file named 18B59C53-1CEE-4F03-98CD-FC8CCB59AC30.jpeg
Thumbnail of the uploaded file named 7DF04572-18D3-4E4D-9E72-C0D1DEFA3138.jpeg
Thumbnail of the uploaded file named 4AFC72AE-A092-4DA0-96A8-9FC74DB8F5AB.jpeg
Profile picture of Bob
Bob from SWISCO responded:
June 26, 2019

Thanks for writing in. This looks more like the S380-29, which has a shoe with a depth of 1". But carefully measure the depth to be certain; the Series 385 has a depth of 1-3/32". Once you know what balance you need, you'll need a stamp option of 2830.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
29" Series 380 Channel Balance
29" Series 380 Channel Balance
S380-29
$11.10
29" Series 385 Channel Balance
29" Series 385 Channel Balance
S385-29
$11.10
