28C USB

A quick learner says:

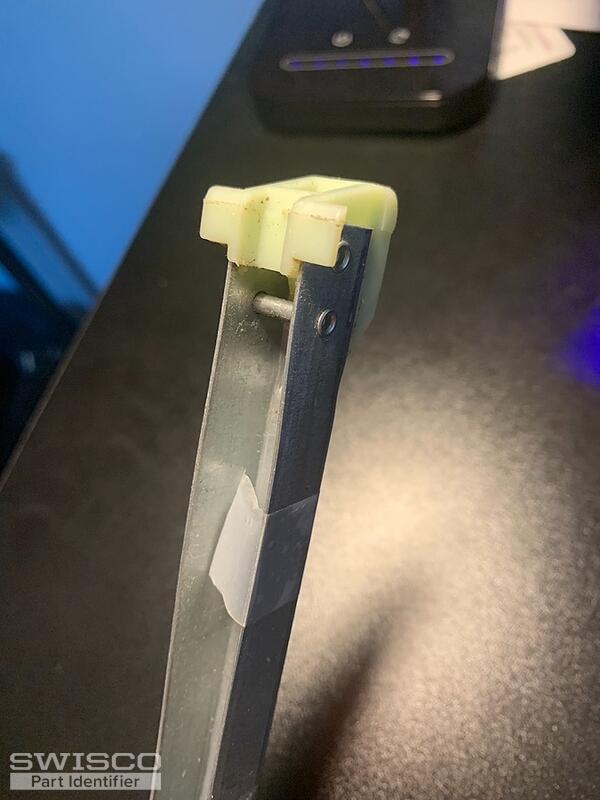

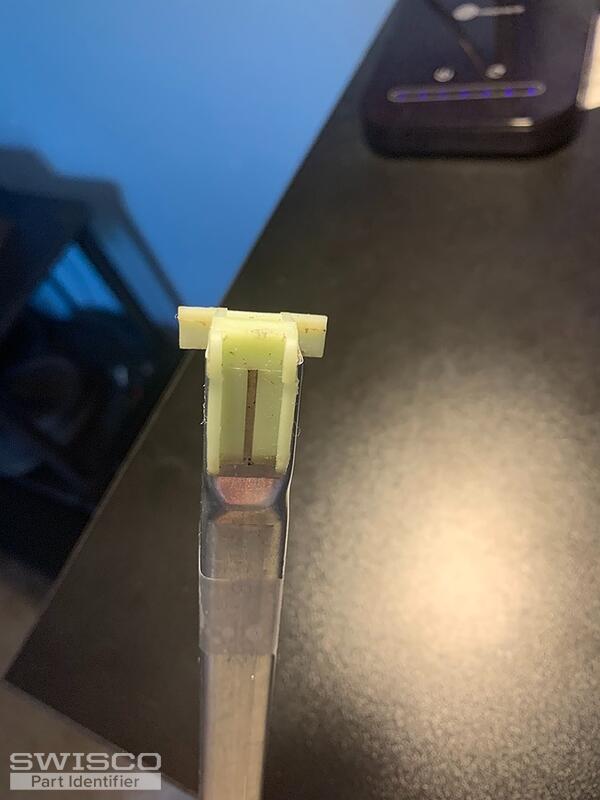

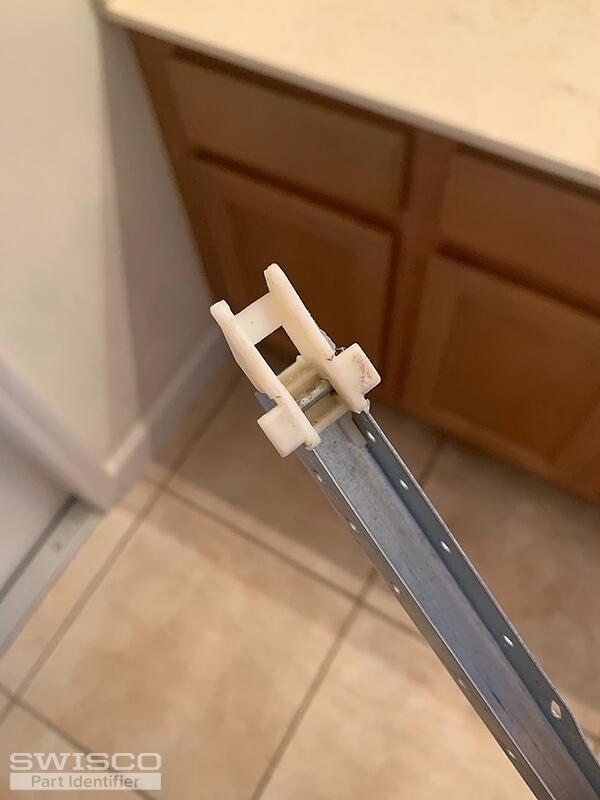

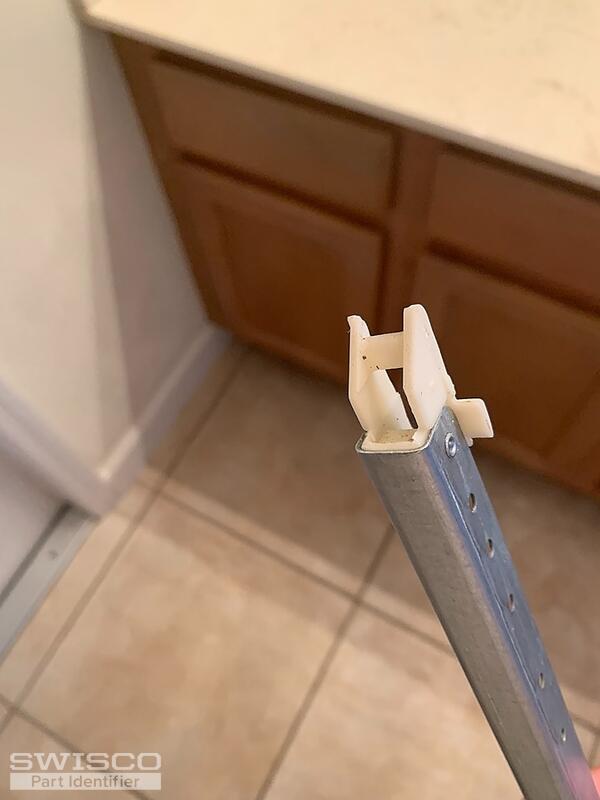

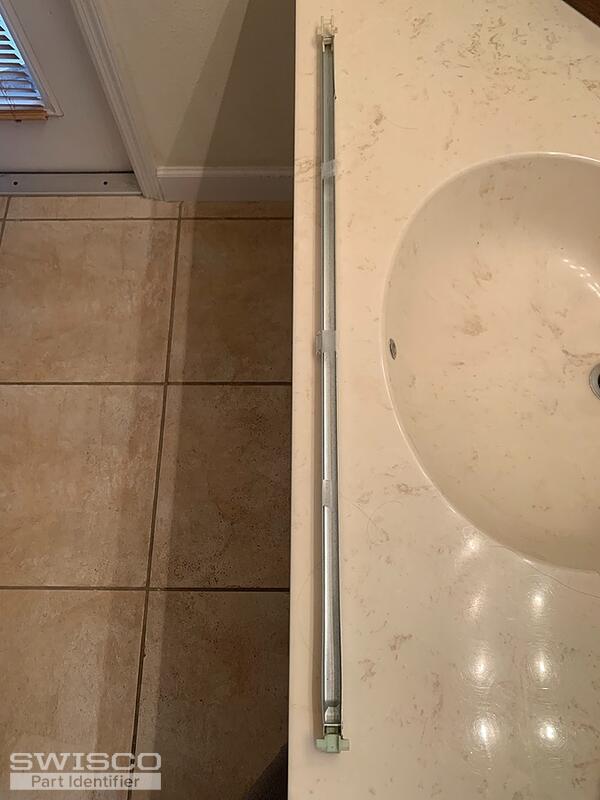

Hi, I was hoping you guys might be able to assist me. I recently purchased some channels believing they were the ones I needed. My order number was #1779801 but upon first look, I want to say I purchased an incorrect one. I was hoping that with these pictures included you might be able to tell me the correct channel that I need. The stamp included on my old channel in the pictures also says "28C USB" on it since I didn't include that in there. Also, depending on if this is one that you carry, I was hoping that I can be assisted in either an exchange or refund
Thumbnail of the uploaded file named IMG_4885.JPEG
Thumbnail of the uploaded file named IMG_4886.JPEG
Thumbnail of the uploaded file named IMG_4887.JPEG
Thumbnail of the uploaded file named IMG_4881.JPEG
Thumbnail of the uploaded file named IMG_4882.JPEG
Profile picture of Emily
Emily from SWISCO responded:

Hi there!

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. Your 28C stamp usually corresponds to our 2830 option but you can always weigh your sash on a scale to be certain. There's a chart on the S380-29 and S385-29 's store pages that will show you which option you'll need based on the weight of your sash.

You can also see our return policy here .

Let me know if you have any questions!

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
