29-3 AA CMC 7

Home Owner from Petaluma, CA
Jul 10, 2024 5:51 pm
30" net length x 1/2"
Sash Weight = 18.6 pounds
Glass height 30"
Window size 3'0"x 5'6"
Also need side clip replacement
Need a pair for both sides of window

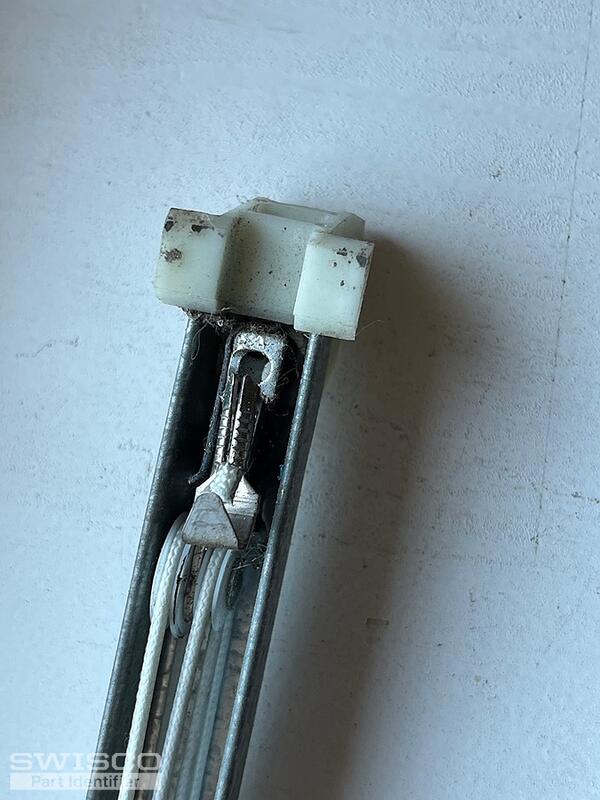

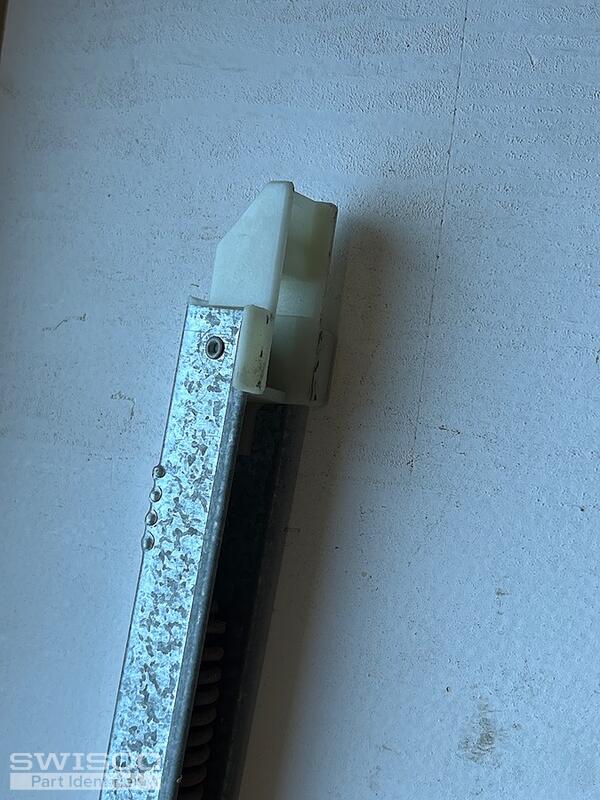

IMG_7593 IMG_7592 IMG_7591 IMG_7587 IMG_7590
5 user uploaded images
4 Replies
Quick Learner from Petaluma, CA
Jul 10, 2024 5:58 pm
30" net length, width = 1/2"
Glass height in sash = 30"
Sash weight = 35- pounds
Window size 4'0"x 5'6"
Need a matching pair

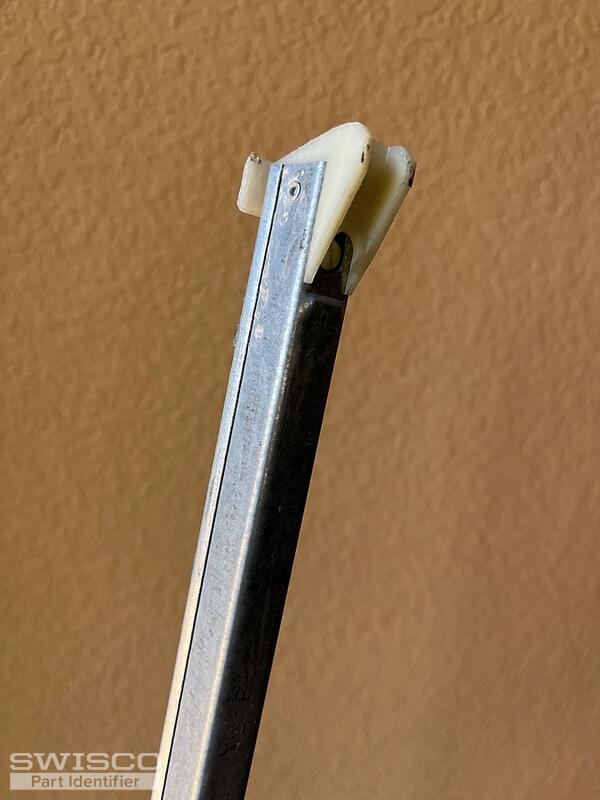

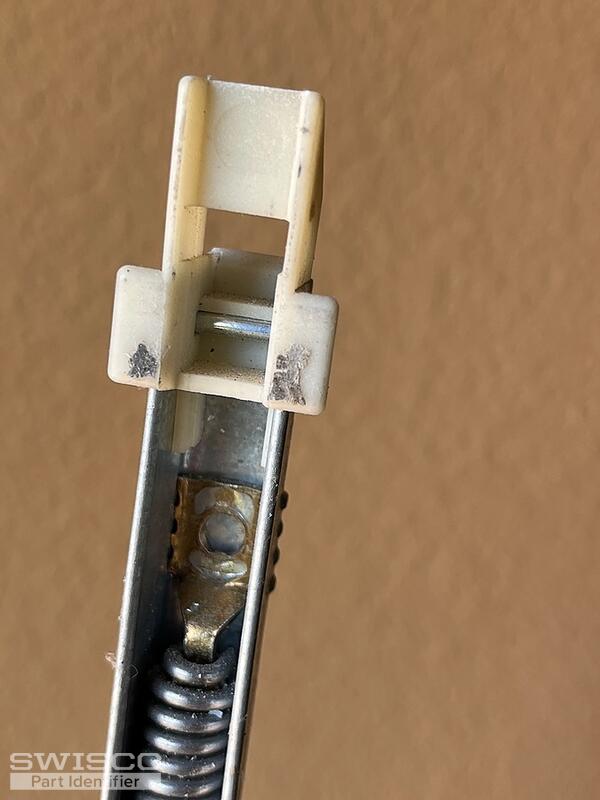

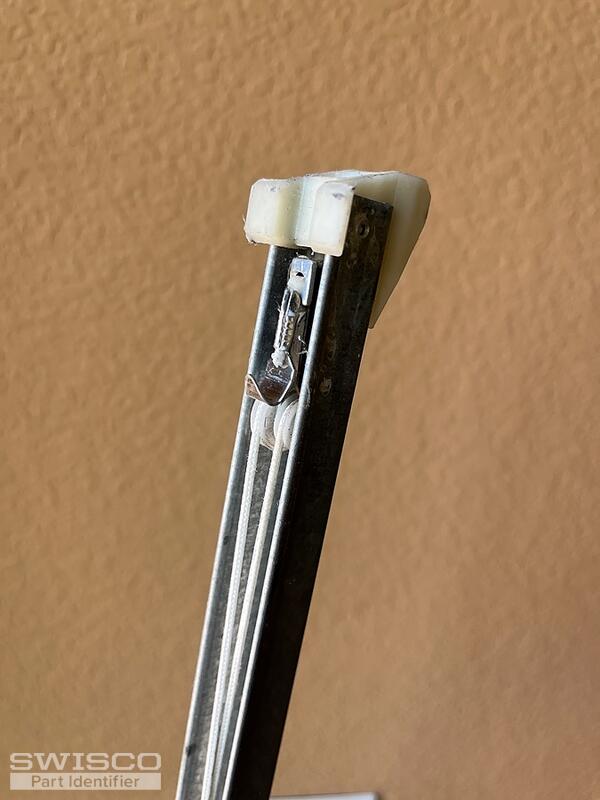

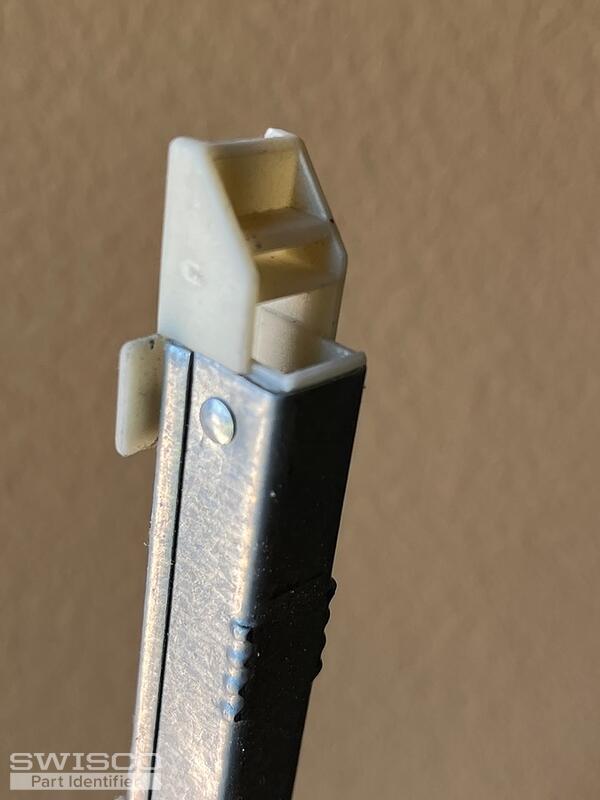

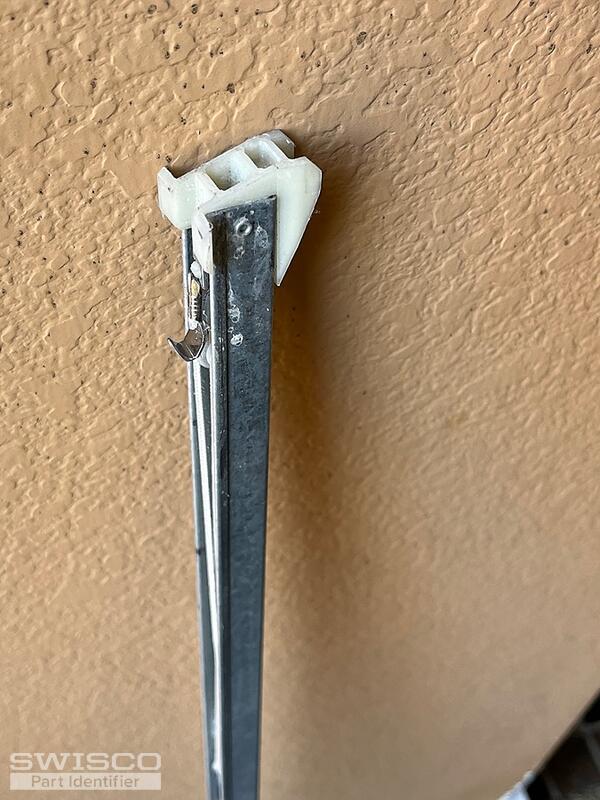

IMG_7581 IMG_7583 IMG_7579 IMG_7582 IMG_7578
5 user uploaded images
Jasmine
Jasmine from SWISCO
Jul 11, 2024 12:52 pm
SWISCO
EXPERT

Thanks for reaching out to us! I am confident we can provide you with the balances you need but I'll need just one more photo to confirm the correct replacement. May I please see a clearer photo of the pulley in the center of the balance, where the string and spring meet?

In regard to the clip, I believe you may be referring to the take out clip? To determine the exact clip you need, I'll need to see a photo of this as well.

Please don't hesitate to reach out with any questions.

Quick Learner from Petaluma, CA
Jul 12, 2024 8:28 pm

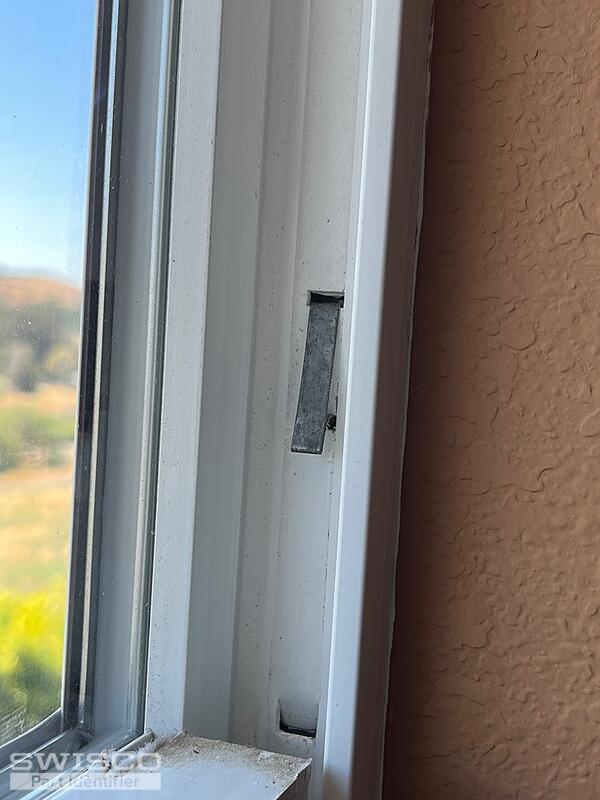

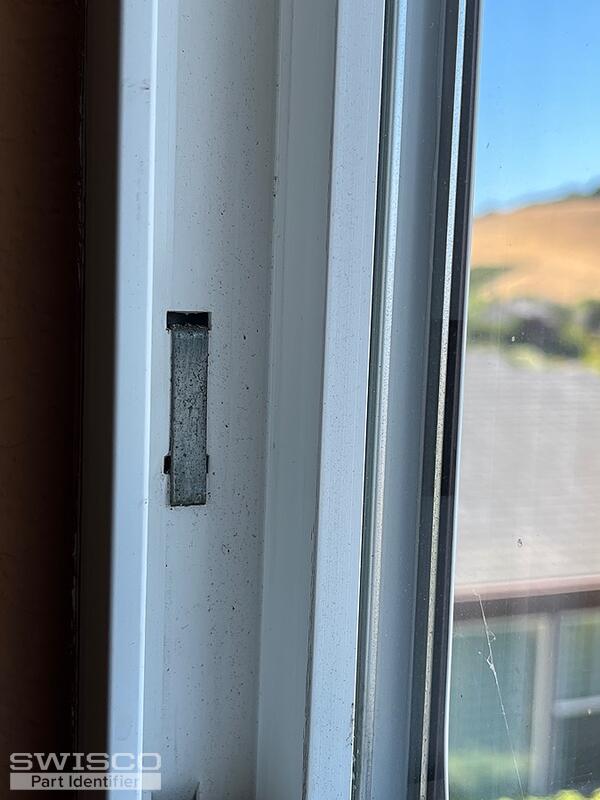

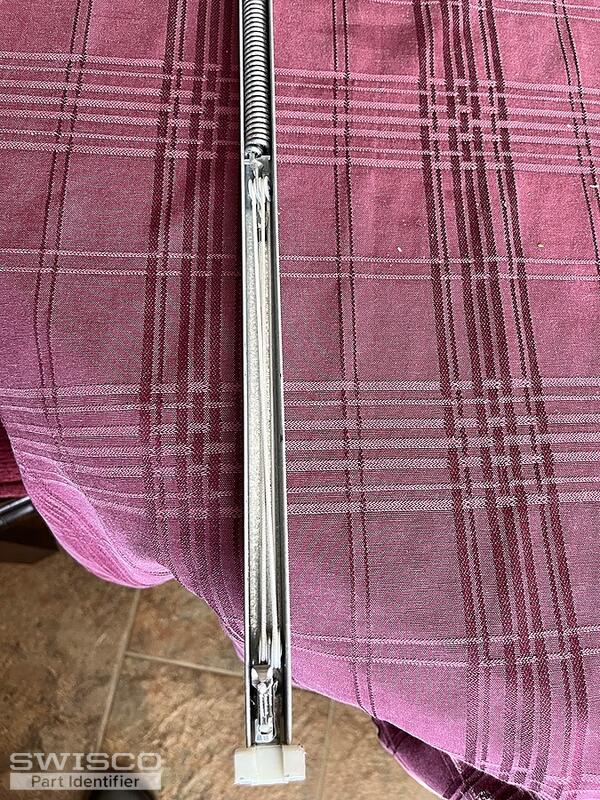

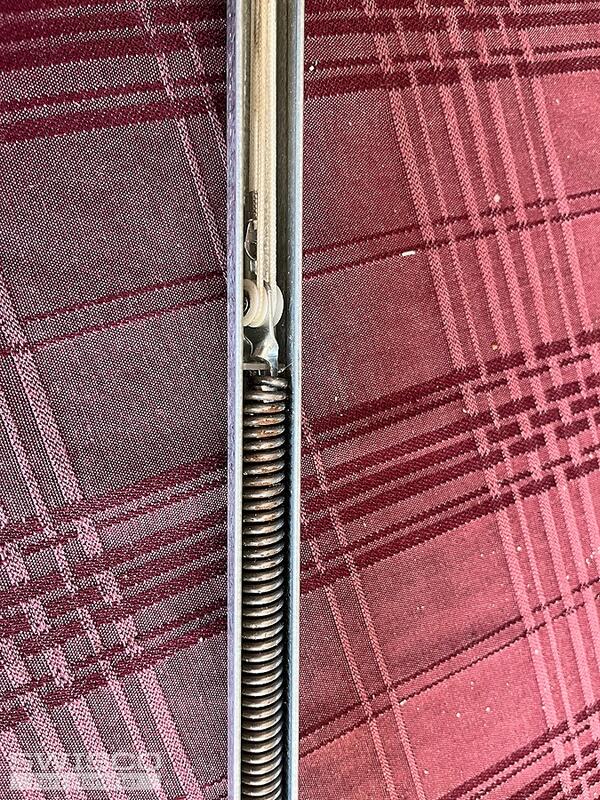

Photos of take out clip and where spring and cord meet.
IMG_7612 IMG_7609 IMG_7595 IMG_7594 IMG_7612
5 user uploaded images
Jasmine
Jasmine from SWISCO
Jul 15, 2024 10:14 am
SWISCO
EXPERT

Thanks for the photos. The metal clip you are looking to replace is the 16-002 Take Out Clip. I am confident this is the replacement you'll need, but be sure to look over the dimensions to confirm.

Alternate image for 16-002
Alternate image for 16-002

Your balances can be replaced with either the S380-30 with a 1" shoe or the S385-30 with a 1-3/32" shoe. To determine which of these is the correct replacement, you'll need to confirm the measurement for the depth of your bottom shoe.

For the 18.6lb sash, you'll need the 2930 stamp option and for the 35lb sash, you'll need the 2965 stamp option.

Comparison of the S380 and S385 balance shoes.
Comparison of the S380 and S385 balance shoes.
