29" channel balance

Home Owner from Sherman, TX

Dec 14, 2020 7:58 pm

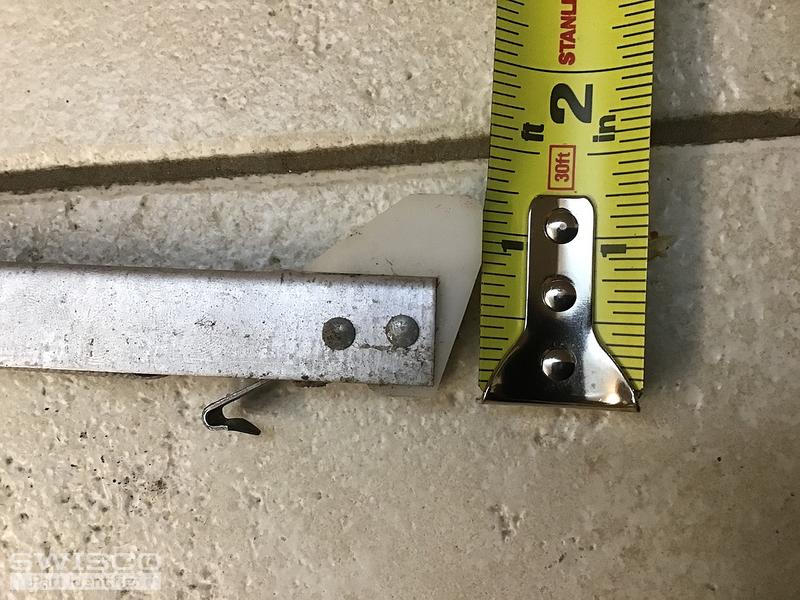

Can you let me know which is the correct channel balance replacement to order for the one I have attached photos?

It looks like the width is 5/8" and length is 29".

The only markings I see are: B.S.I. 2840.

4 user uploaded images

6 Replies

Tom from SWISCO

Dec 16, 2020 12:29 pm

Your balance looks like a match for our S390-29 channel balance. Please look it over and let me know if you agree.

Home Owner from Sherman, TX

Dec 16, 2020 2:32 pm

I measure the channel balance shoe to be 1 3/16". Will 1/8" (1/16 on both sides make a difference?

Thank you.

Tom from SWISCO

Dec 18, 2020 9:26 am

Thanks for confirming! That would make a difference, yes. In that case your balance may need to be custom made using our 15-003 bottom and 19-002 top fitting. Look over the dimensions for these parts, especially the 15-003, and let me know if you agree.

If you want to pull the trigger on a custom order, please let me know how many balances you wanted to purchase and I will then email you a purchase link and price quote for that quantity. You can use that link to place an order on our site.

Home Owner from Sherman, TX

Dec 18, 2020 6:11 pm

Yes, I concur. I would like to order at least 6, possibly more and 2 dozen take-out clips.

Thank you.

Tom from SWISCO

Dec 21, 2020 10:03 am

Sounds good. I'll email you a purchase link and price quote now for 6. The take out clip would be our 16-002, which is sold separately.

If you wanted more than 6 balances, please let me know here. I'd be happy to change the quantity for you.
