29" channel balances

A professional from Naples, FL says:

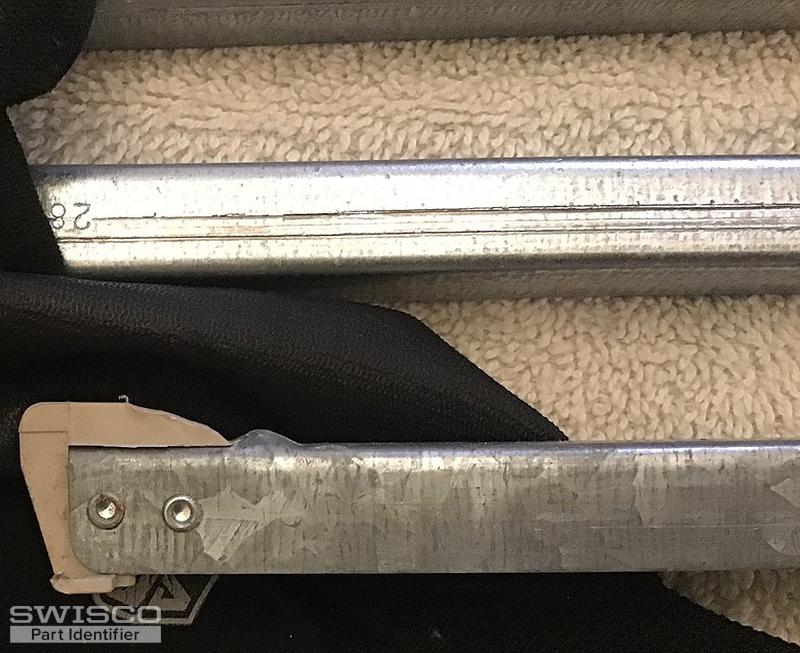

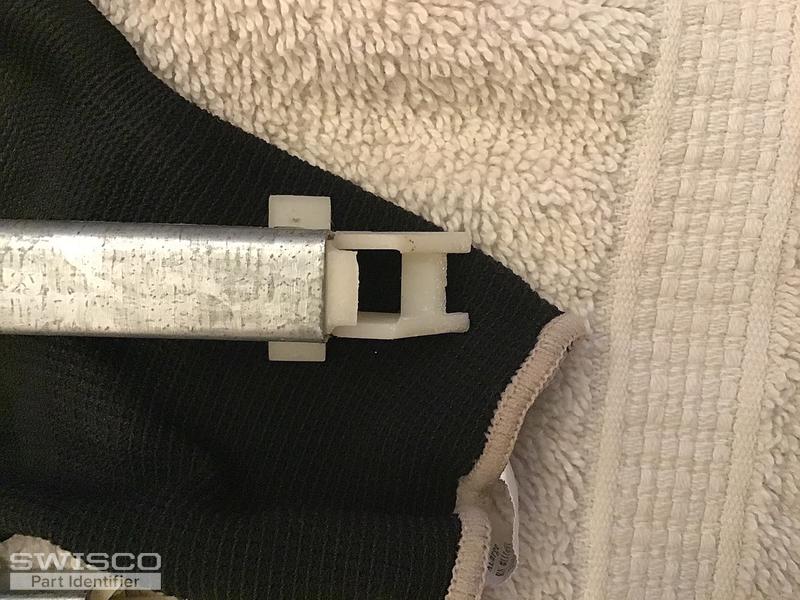

They are 1/2" balance tubes, but have a longer top end catch than i have seen. See pictures.

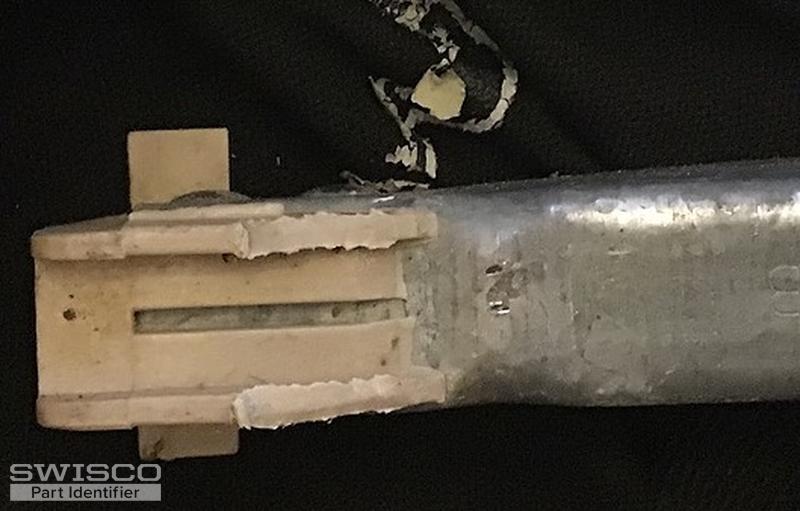

The height of the foot end is rather small at about 13/16".
Please help.
Thanks
Thumbnail of the uploaded file named 48BEAEDA-9838-4189-8536-9E50179F0802.jpeg
Thumbnail of the uploaded file named 8A24B6EC-9336-4D72-9E70-52C25AE3CAEA.jpeg
Thumbnail of the uploaded file named B602398C-A875-4FCF-A661-0B62F114AA2B.jpeg
Profile picture of Casey
Casey from SWISCO responded:

Hello,

With this combination of attachments, you could have either an S380-29 or S385-29 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need to choose your spring strength option based on the stamp on your metal channel.

Thank you and let us know if you have any other questions or concerns.


1
