30 11/16 52-2905-wht 15529304.7.1 1/17/2006

Contractor from Parkton, NC
I have attached the photos I have available. The builder said they were Jeld Wen windows. I need the side spring assembly with the small weather stripping piece.

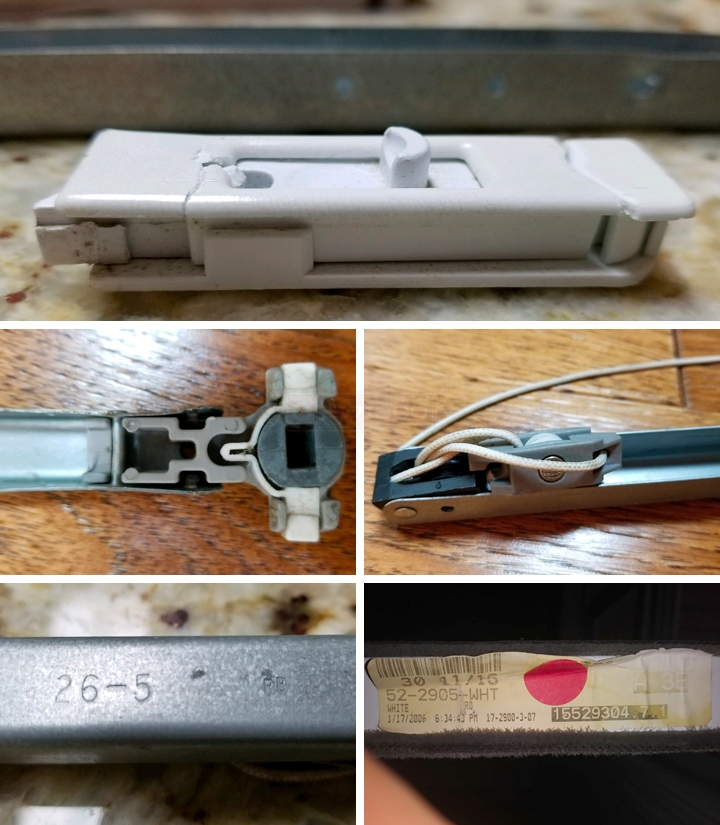

User submitted photos of window hardware.
4 Replies
Paul
Paul from SWISCO
SWISCO
Expert
Thanks for posting. Take a look at our Series 795 channel balance. I believe this can work for you. The only difference I can see is that you have a 15-195B pivot shoe, which has an open cam, while the Series 795 comes with the 15-195 close cam by default. I recommend purchasing our 15-195B separately and then just swapping them out when you get them. Also keep in mind that our Series 795 installs at the top using a screw tab, not a hook. If yours uses a hook, let me know. It would have to be specially made.

As for the tilt latches, see our 26-393B. This looks like a good match.
Contractor from Parkton NC
I also need the weather stripping piece. Photo attached

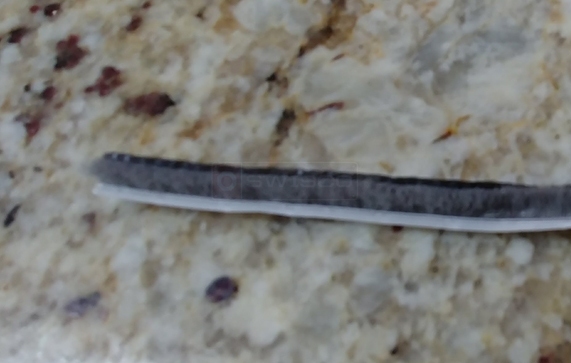

User submitted image of their weatherseal.
Tom
Tom from SWISCO
SWISCO
Expert
Looks like you need wool pile. I can't tell specifically what you need without knowing its size. I recommend looking through our entire selection here.
