30" window channel balance from a 1964 window

A quick learner from Dallas says:
This balance screws into the top of the window sash and screws into the bottom of the window frame Itself
Thumbnail of the uploaded file named 553A672C-6147-4AD0-88E2-BB79CC3662E9.jpeg
Thumbnail of the uploaded file named 8F92C1AD-CBB6-41E1-9D9D-324759DE60FC.jpeg
Thumbnail of the uploaded file named A7FB1DBB-3C22-4373-958B-55984A89B799.jpeg

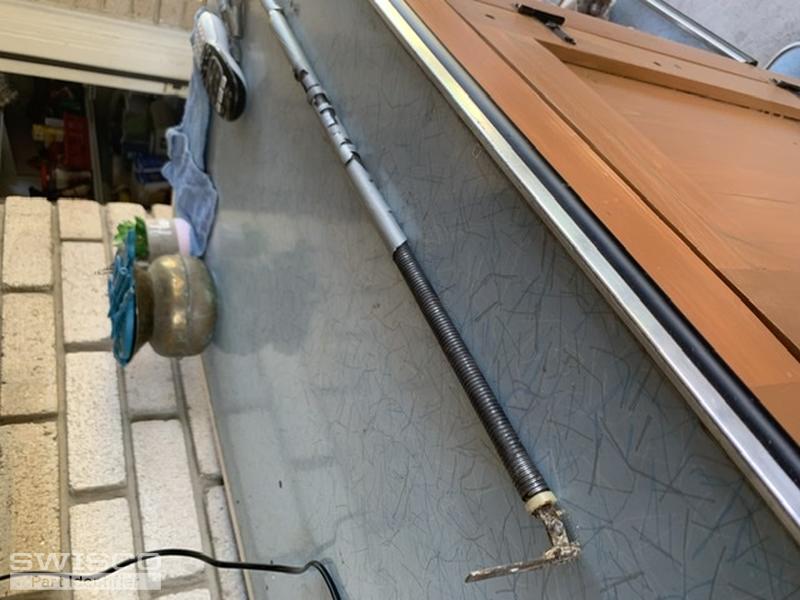

Thumbnail of the uploaded file named 2B519DB5-6388-4004-B571-96078EA1529E.jpeg
A quick learner from Dallas says:
After more research we realize it is a spiral balance. With a ball and socket type attachment clip for the bottom of the window

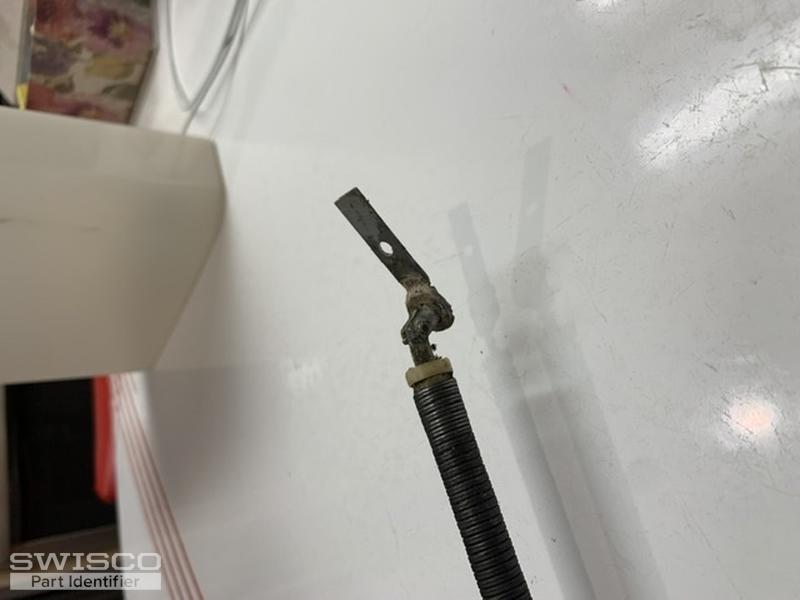

Thumbnail of the uploaded file named D6B3E56C-9CDA-4CCC-831D-8A8E753F3D1C.jpeg

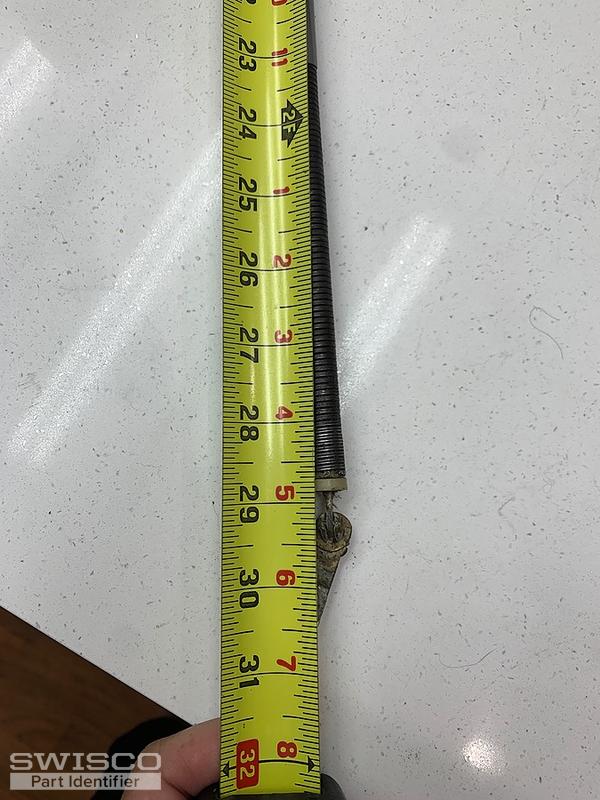

Thumbnail of the uploaded file named 5291D58E-B652-4458-AD00-9DCF18134E9E.jpeg

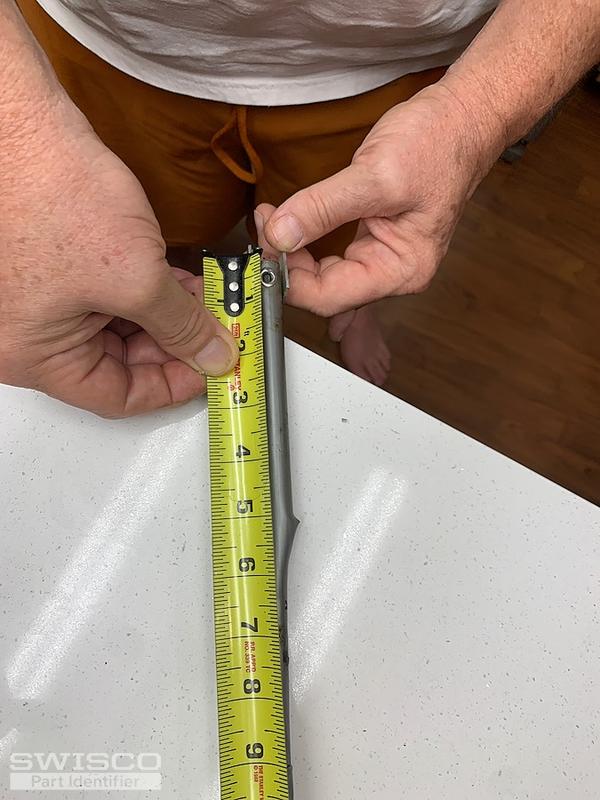

Thumbnail of the uploaded file named 7F605899-5409-4F0F-B5A8-3DD3D8DFD0A6.jpeg
Profile picture of Tom
Tom from SWISCO responded:

Hello! I agree, this looks like an old non-tilt window spiral balance. I believe you can use our 9/16" diameter Series 500 to replace it. We don't have a bottom bracket exactly like your original, either, but our 17-012 should work as a reasonable substitute.

Please look these parts over and let me know if you had any questions.

A quick learner from Dallas says:
Why do you think it is 9/16? I thought 3/8
Profile picture of Tom
Tom from SWISCO responded:

To be honest, I was just eyeballing it. It looks very large to me and older windows tend to use larger balances. However, if you measured the outer tube at 3/8" then definitely go with that. The camera could just be playing tricks on me. That would make it our Series 400 with a 17-031 bracket.
