30841L

Quick Learner from NJ

Mar 13, 2024 7:39 pm

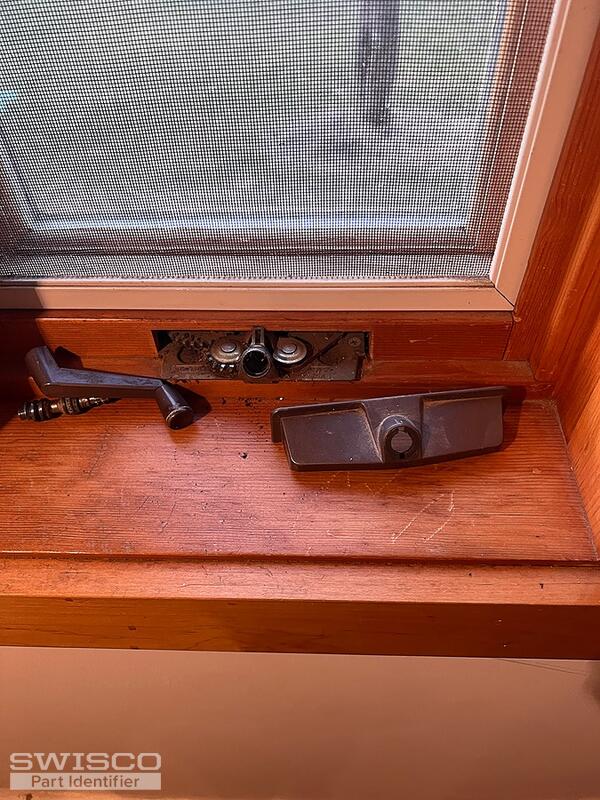

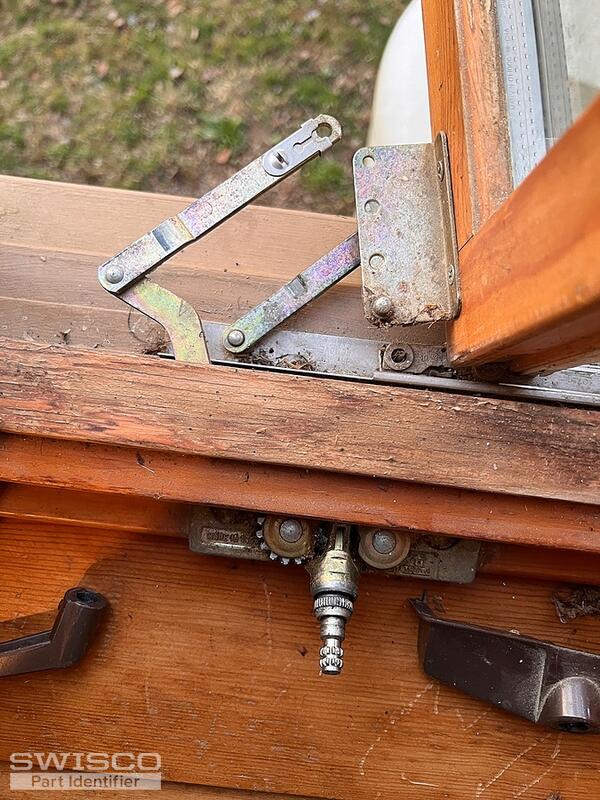

I've added pictures and approximate dimensions I believe it's the crank mentioned in your posts.

5 user uploaded images

7 Replies

+ Add a Comment

Emily from SWISCO

Mar 14, 2024 4:07 pm

EXPERT

Hello there!

Our 39-035 comes to mind. This looks like the operator you're searching for but I recommend you review the specifications below to confirm everything lines up.

Let us know if you have any questions!

Dimensions for 39-035

Quick Learner from NJ

Mar 20, 2024 6:31 pm

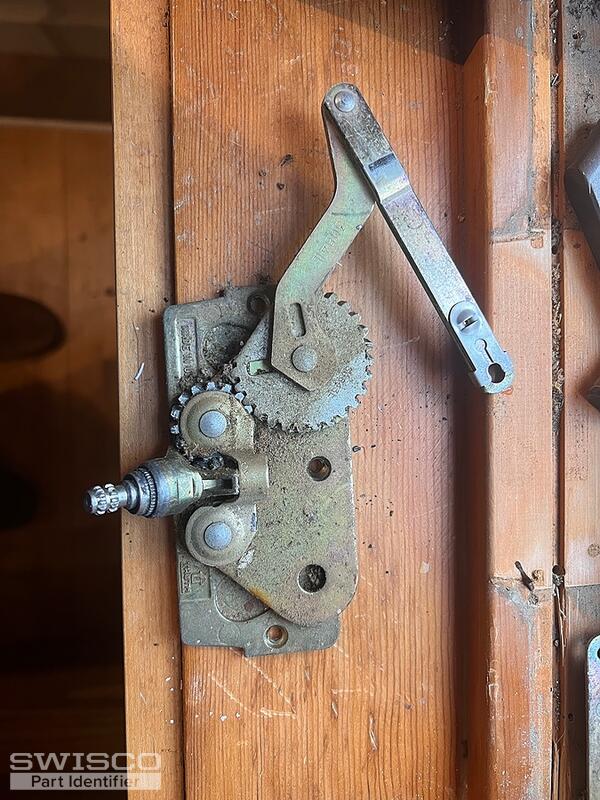

Thanks Emily - Yes, those are the exact measurements. It doesn't have the circular attachment on the right hand side as yours does. Does that make a difference? I'm attaching a photo.

1 user uploaded images

Emily from SWISCO

Mar 21, 2024 7:57 am

EXPERT

No that doesn't make a difference. Our part is just an updated style of your older assembly.

Quick Learner from NJ

Mar 28, 2024 1:33 pm

Hi Emily- I mistakenly assumed the second window had the same configuration.

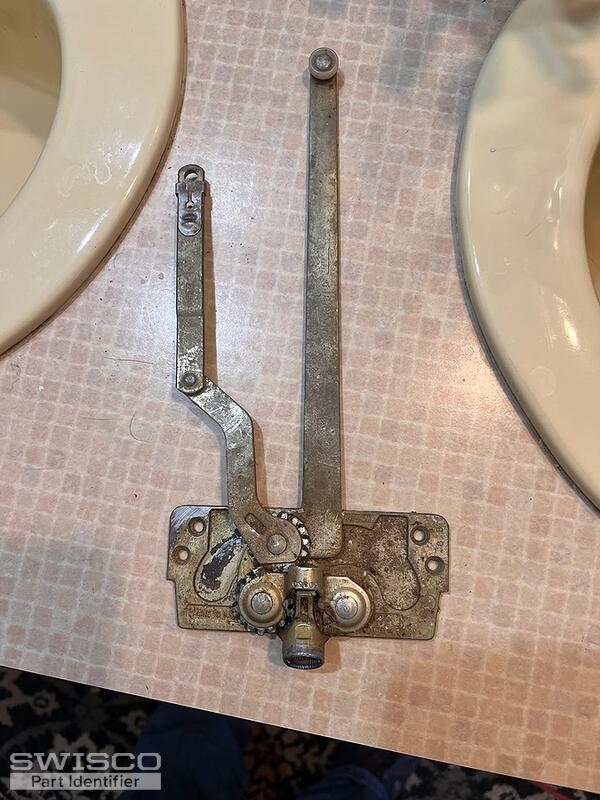

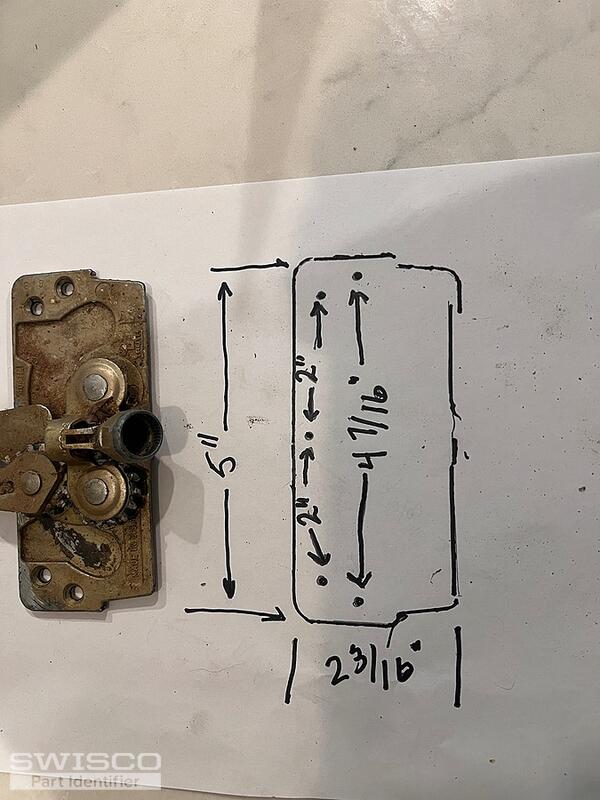

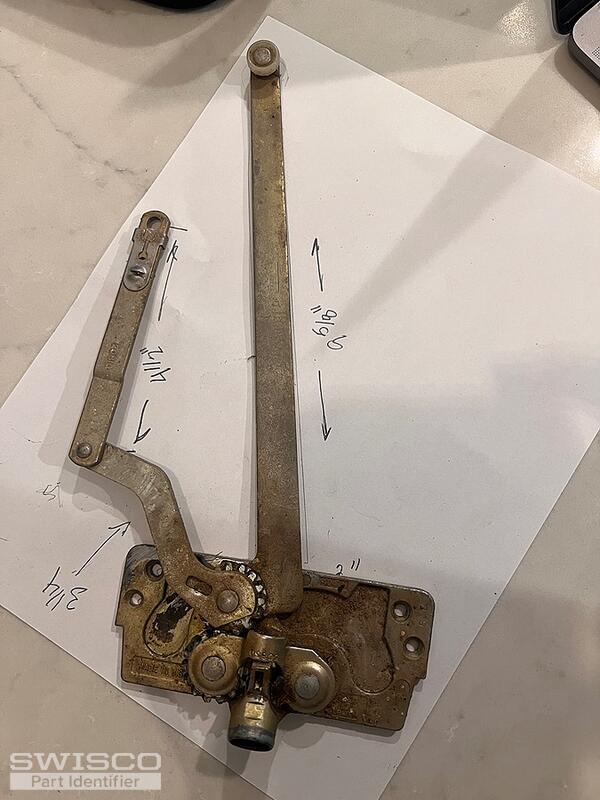

I have enclosed pictures and dimensions of the crank in question.
I hope you can help.
Thanks,
Paul

3 user uploaded images

Emily from SWISCO

Mar 29, 2024 9:05 am

EXPERT

Hi there Paul! Our 39-031 operator comes to mind but our dimensions differ from yours. We measure our part a little differently, however. Measure your hardware as shown below and see if the specifications match what you're searching for.
