Product Code: 39-035

Truth Hardware Entrygard Dyad Window Operator

Name: Truth Hardware Entrygard Dyad Window Operator
SKU: 39-035
Price: 31.9 USD
Availability: InStock

$31.90

Truth Hardware Entrygard Dyad Window Operator Image

Quantity	Price
1-24	$31.90/ea
25-49	$31.27/ea
50-99	$30.85/ea
100+	$30.55/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

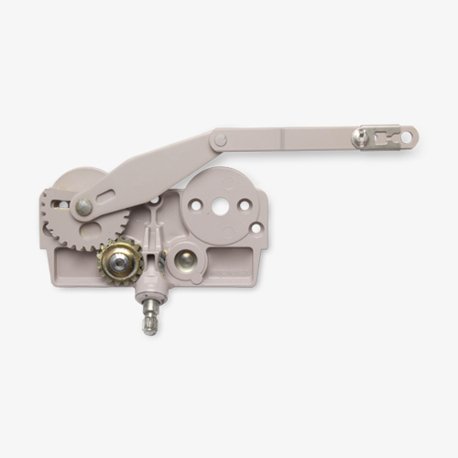

This Truth Hardware EntryGard Dyad Operator is a high-quality crank operator that is designed for use on narrow windows.

See SWISCO product code 39-036 for the opposite handed version.
Will provide a full 90 degree window opening.
11/32" spline; handle sold separately.
Manufactured of high-pressure die-cast zinc for operator base; hardened steel drive worm and gears.
Link arm measures 3-15/16" overall with a downward offset.
Suitable for use on wood, metal, and vinyl casement and awning windows.

Should this operator use the 39-107 or 39-107FK?

I have four entry guard dual arm operators, (39-032) The spline on the operators have all stripped. I will replace them. The current cover matches 39-107. Can I use 39-107FK instead? I would like a folding crank.

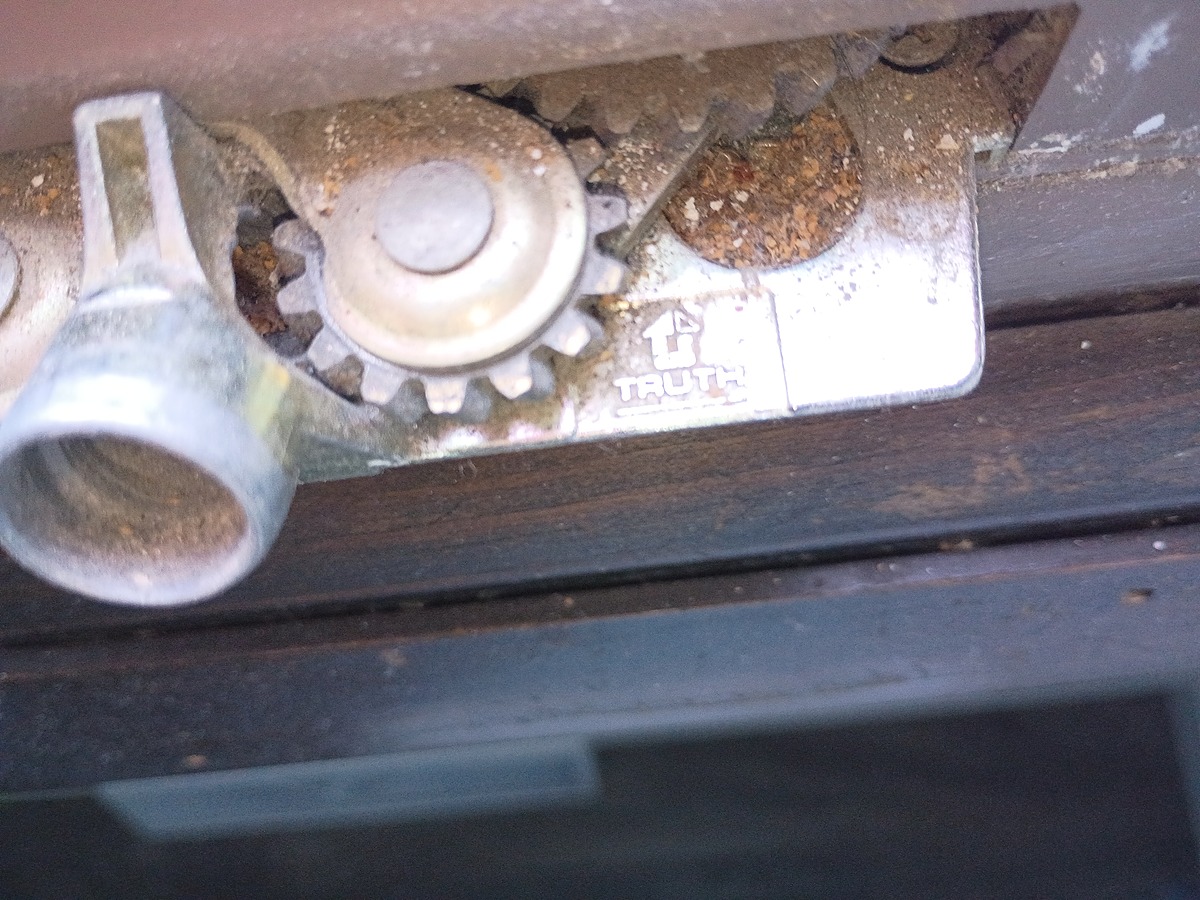

The corkscrew gear has come out my operator. Do you have it?

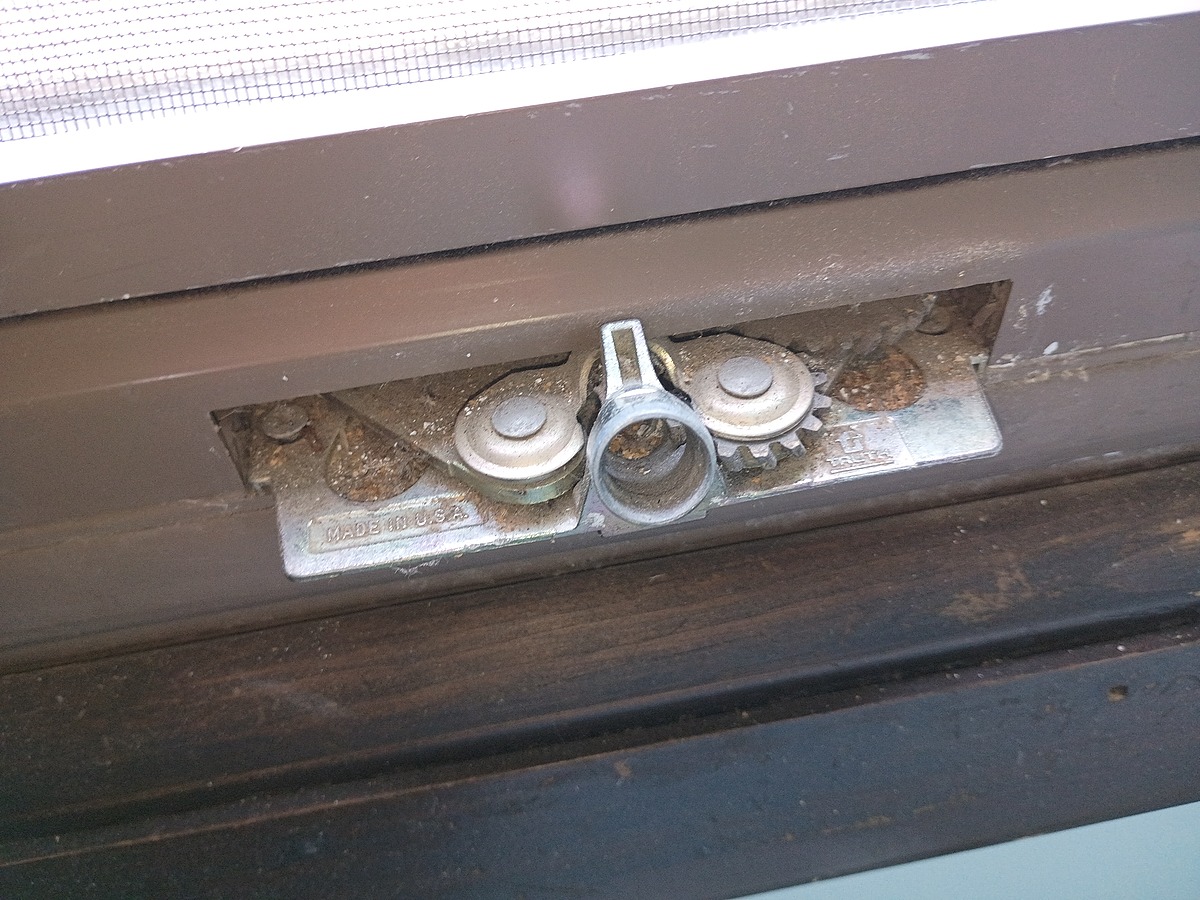

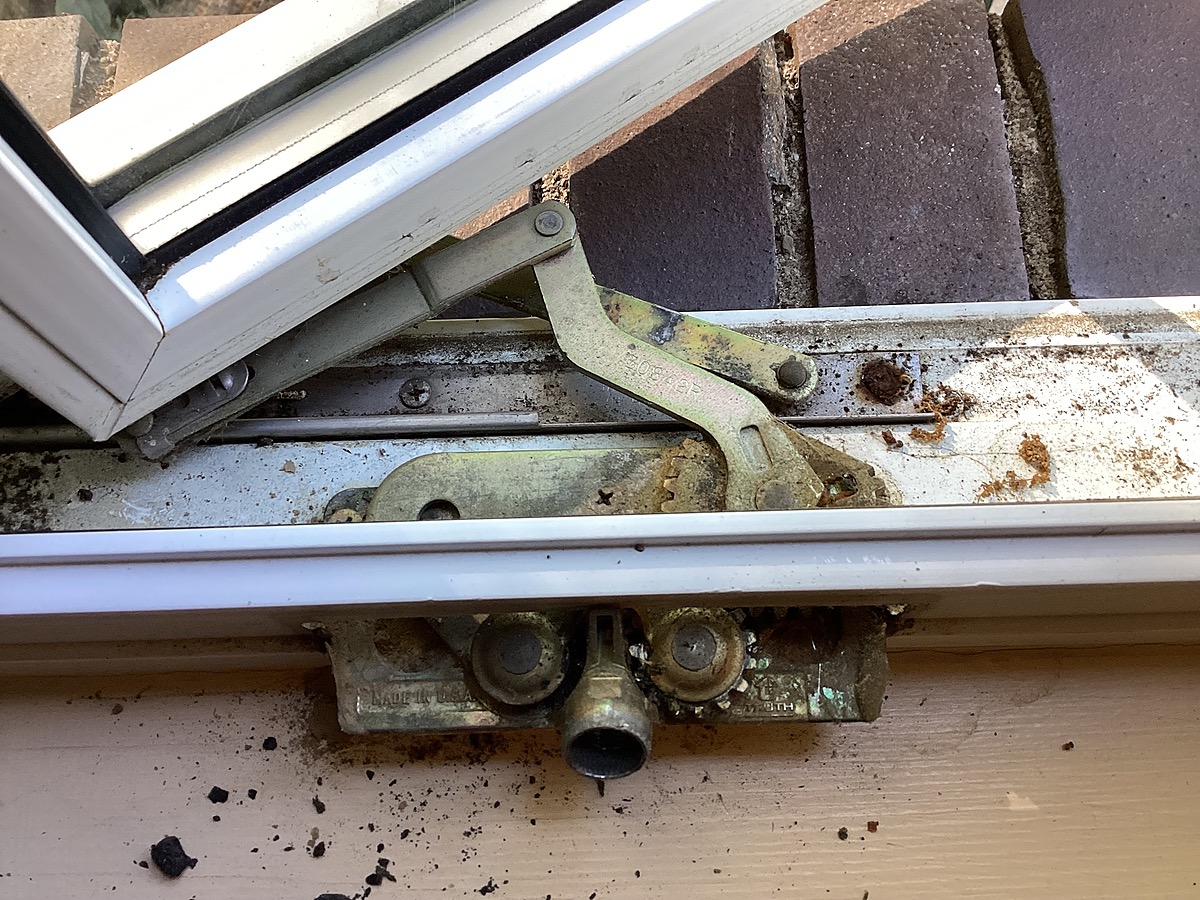

I have a situation the same on two of the windows in the house and I can't seem to locate the part/parts that I may need. on the underside on one of the cranks the numbers found are 14 45054 the other is 16 45054. When I was cranking the windows closed, these parts detatched from the window. Im not ... (cont.)

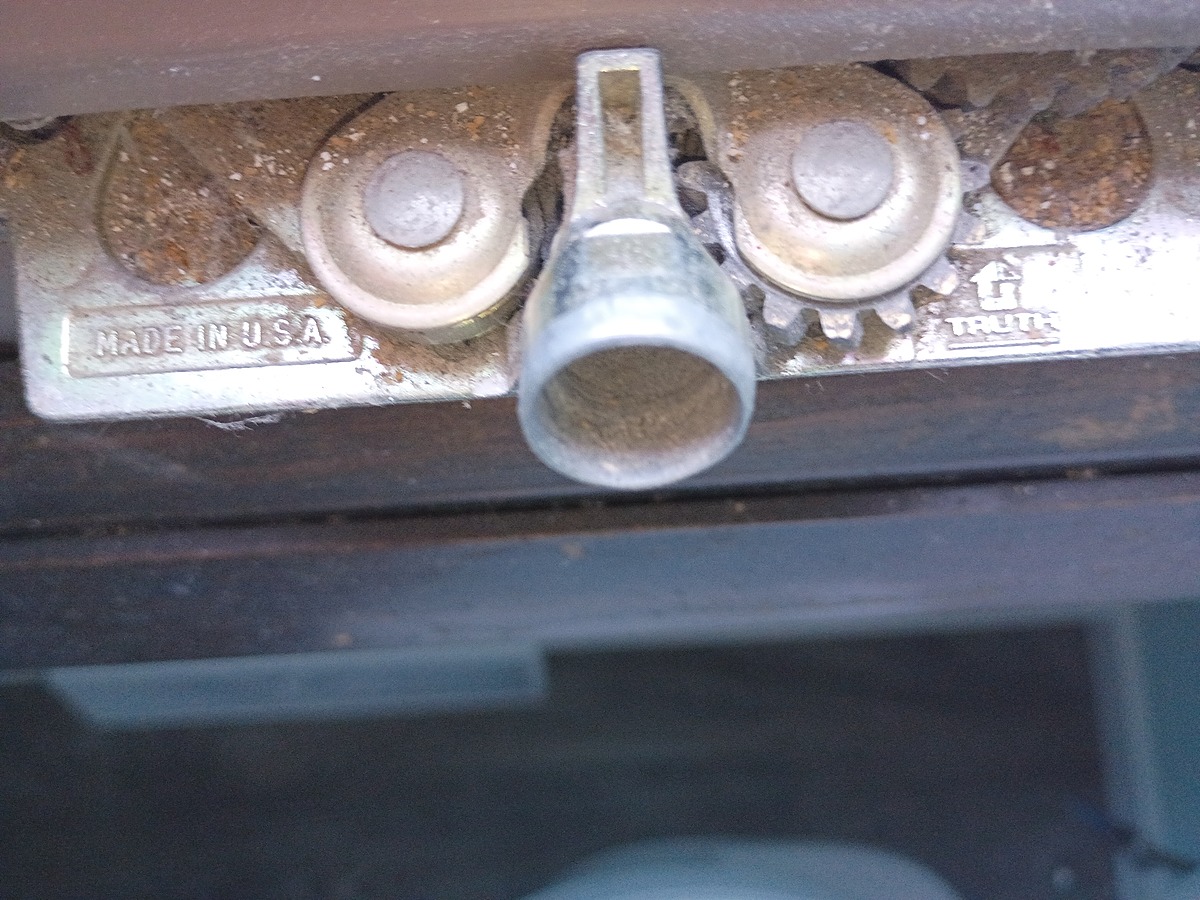

Truth Pat.No 4.840.075

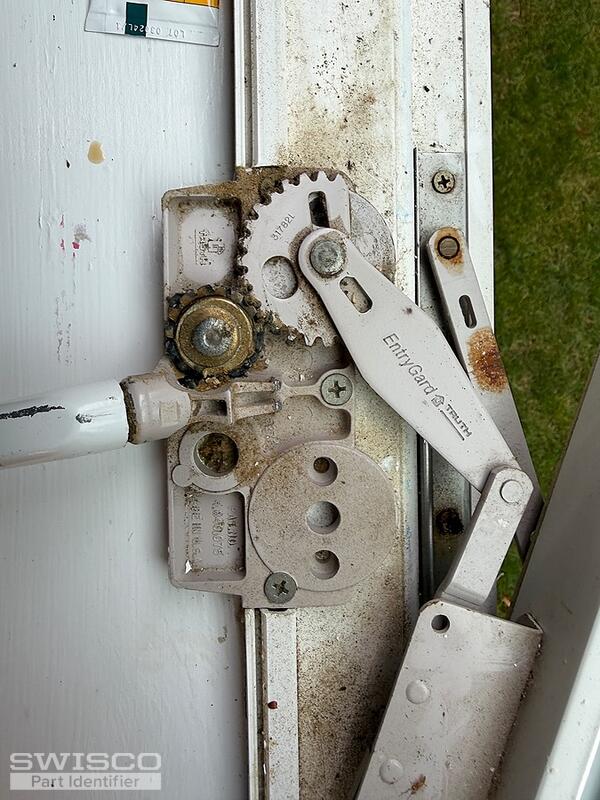

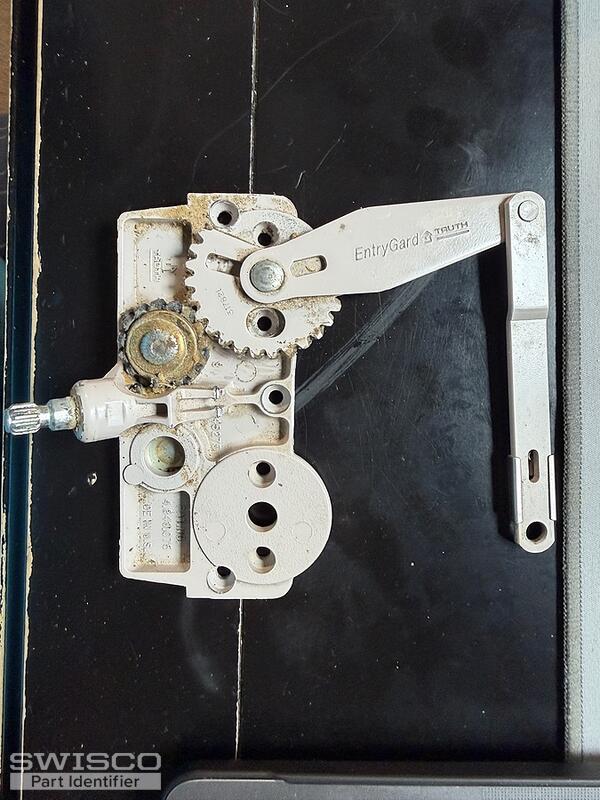

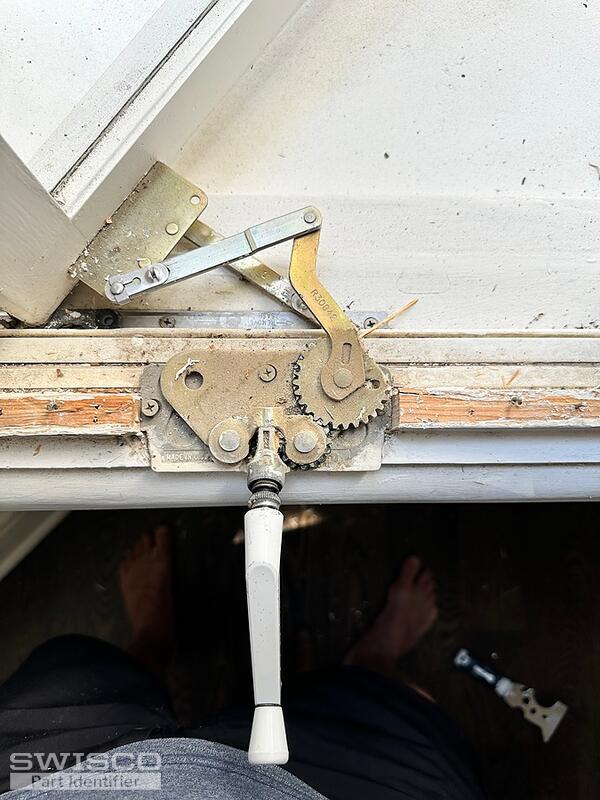

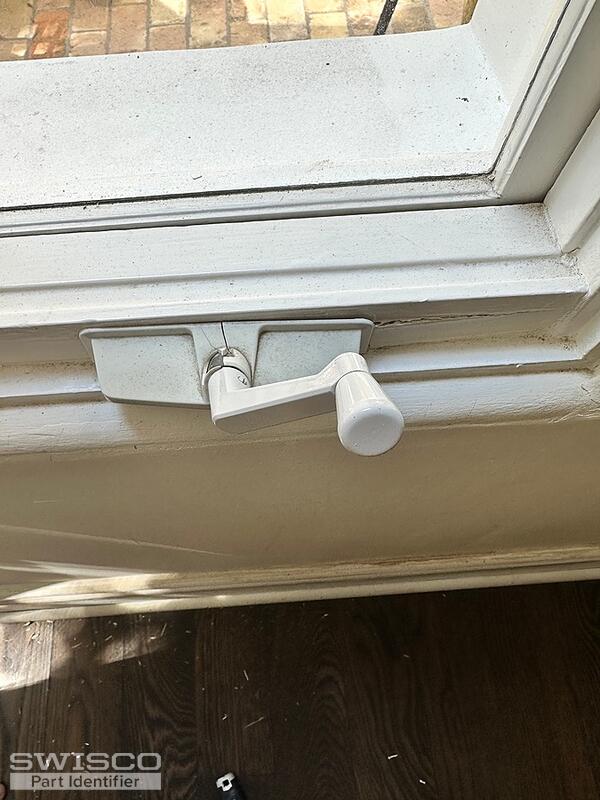

Handle stripped and gear seems to be damaged

need help

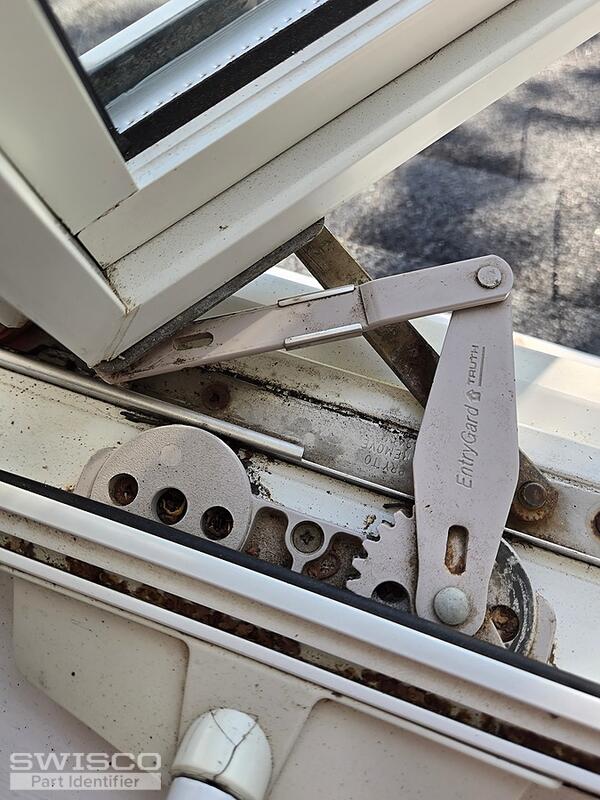

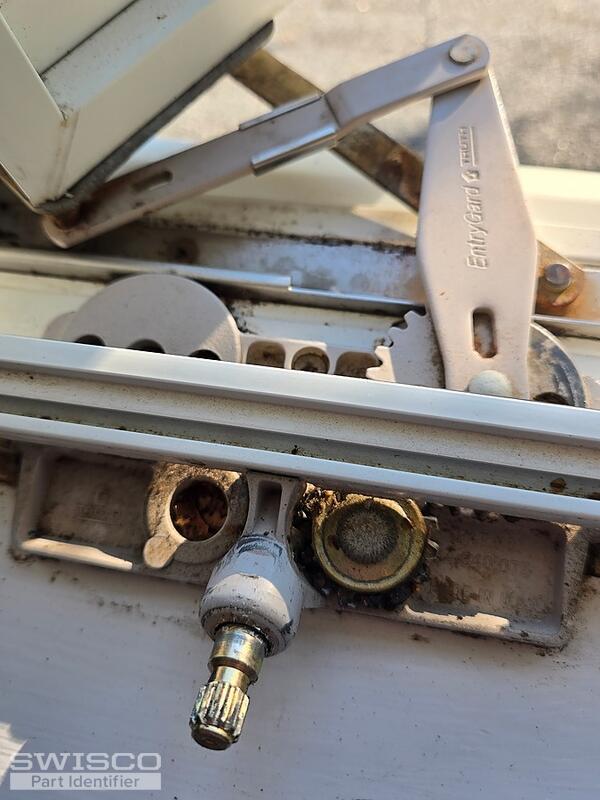

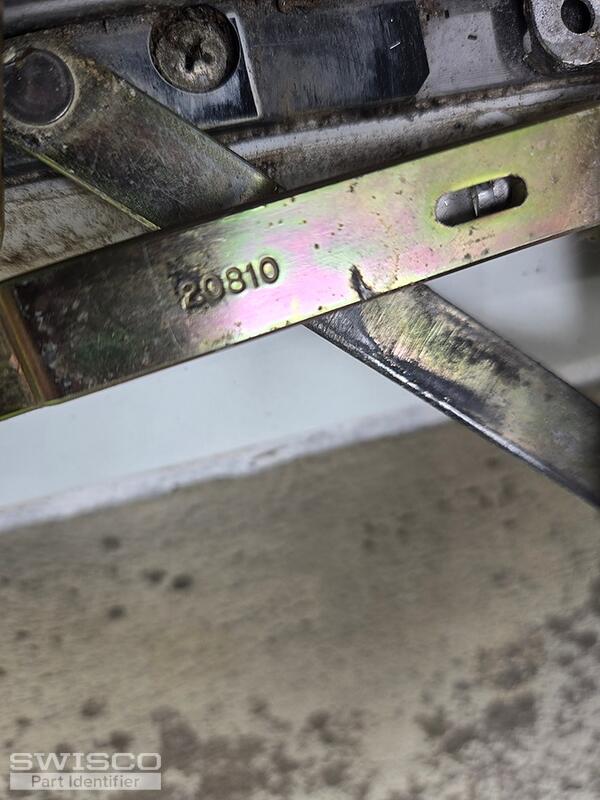

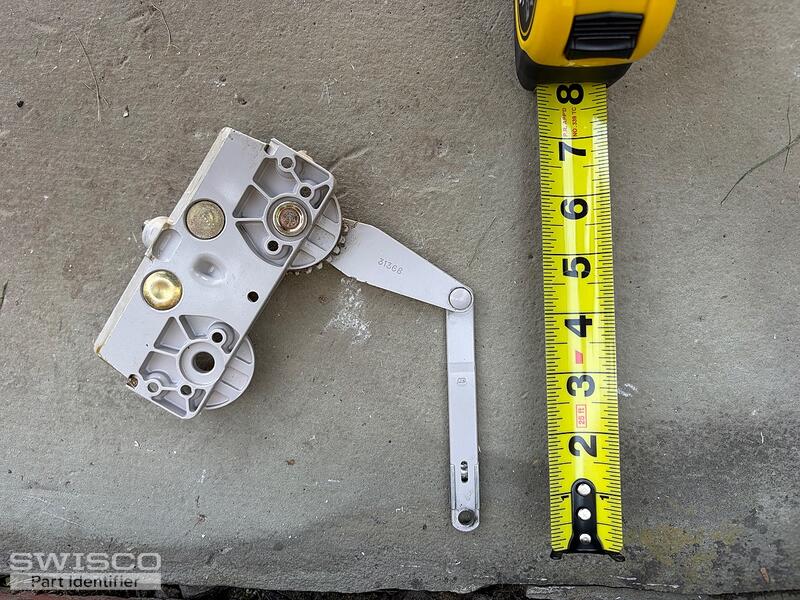

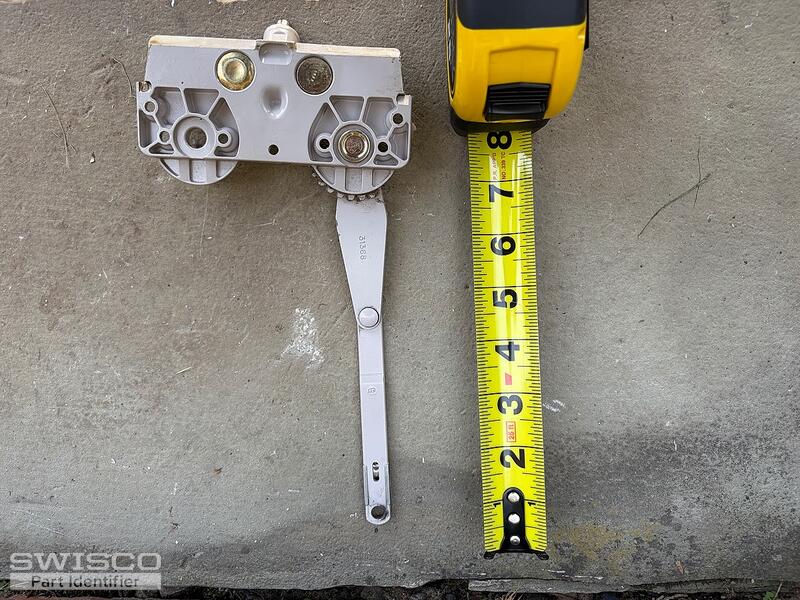

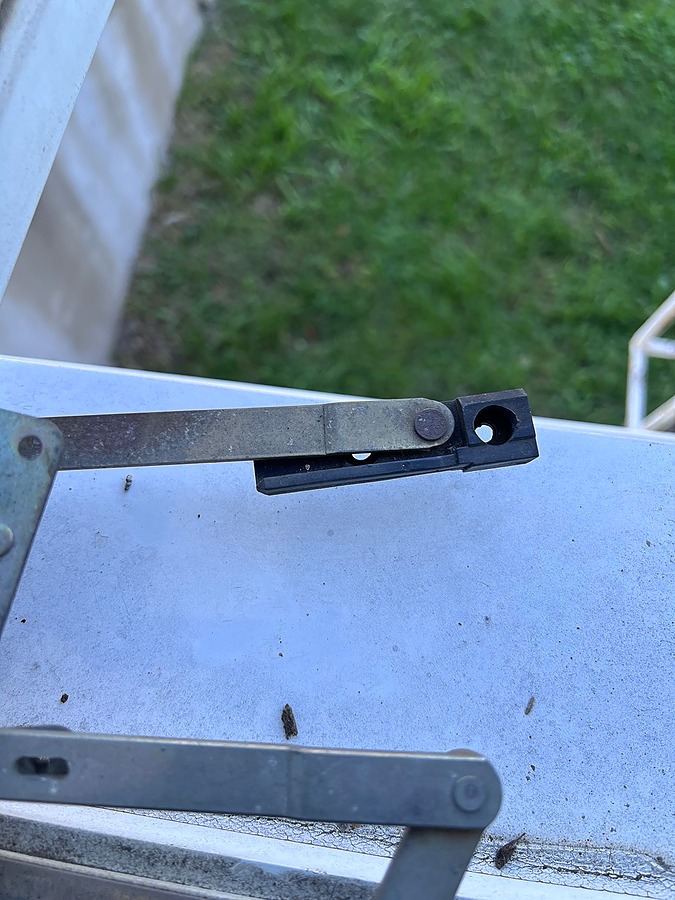

Please help identify this part

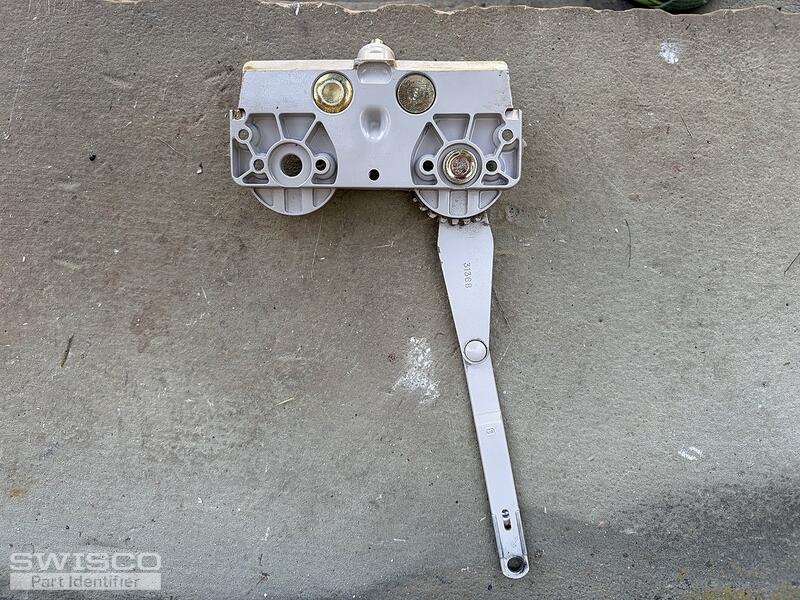

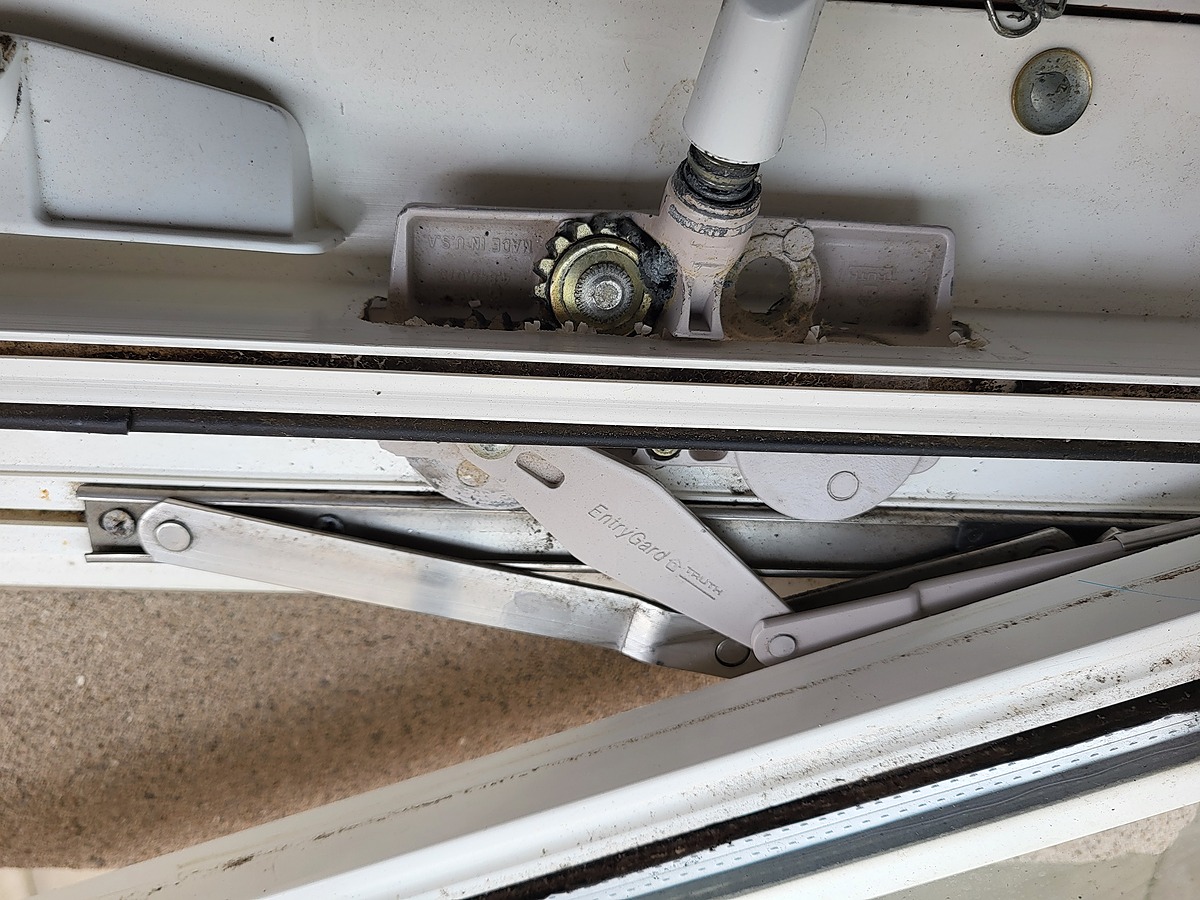

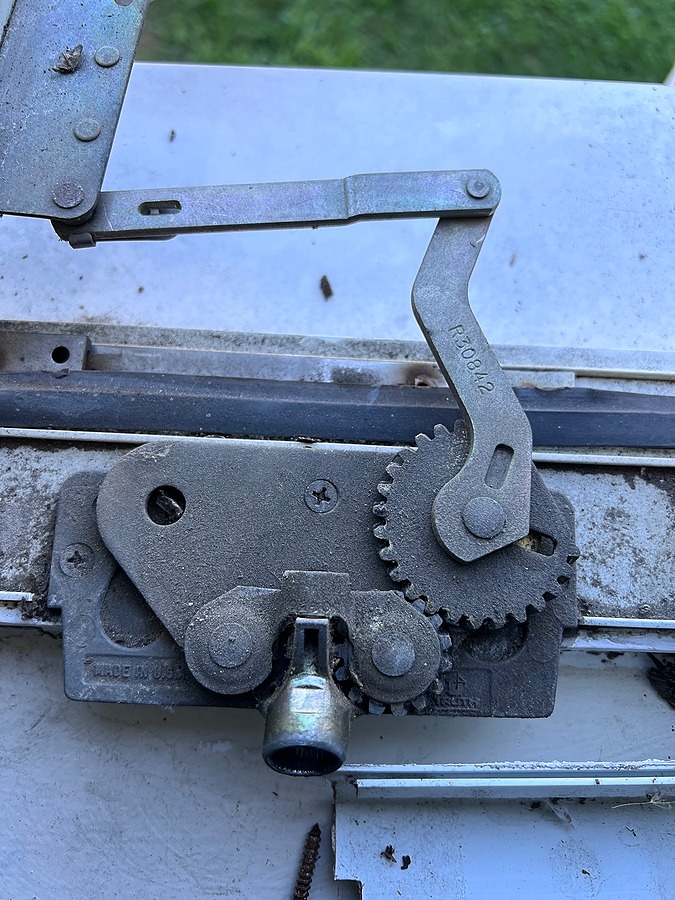

Truth casement window operator

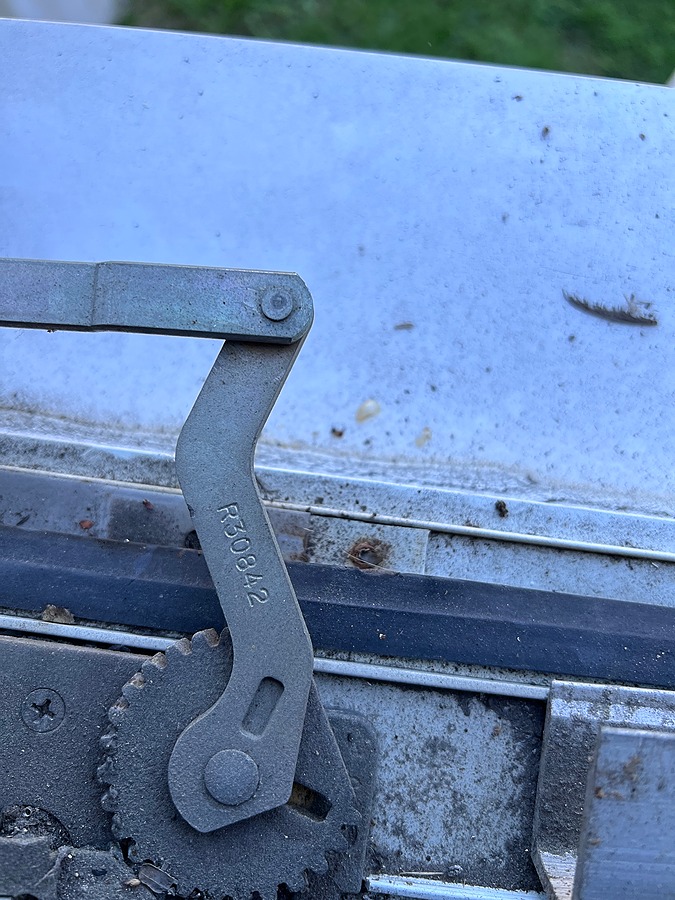

Arm reads 30842R. Short arm (not the angled one) is 4.5". There is no long guide arm attached to window.
