Product Code: 39-036

Truth Hardware Entrygard Dyad Window Operator

Name: Truth Hardware Entrygard Dyad Window Operator
SKU: 39-036
Price: 31.9 USD
Availability: InStock

$31.90

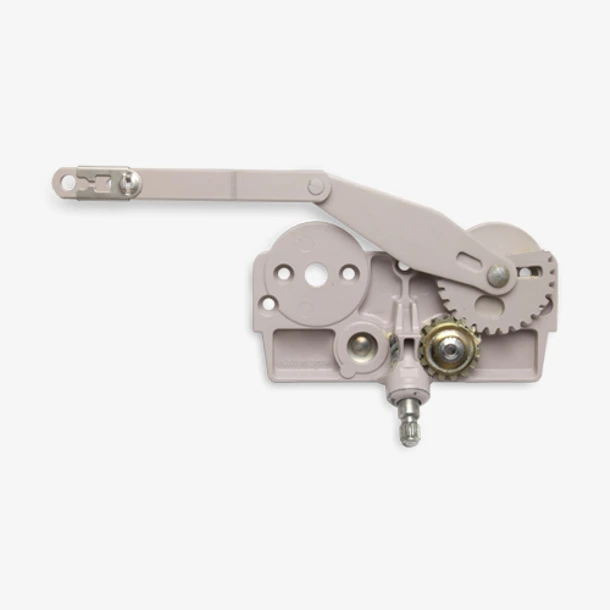

Truth Hardware Entrygard Dyad Window Operator Image

Quantity	Price
1-24	$31.90/ea
25-49	$31.27/ea
50-99	$30.85/ea
100+	$30.55/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

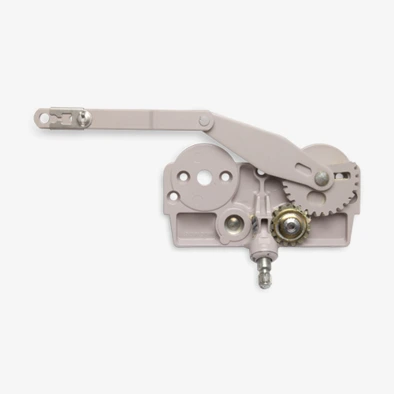

This Truth Hardware EntryGard Dyad Operator is a high-quality crank operator that is designed for use on narrow windows.

See SWISCO product code 39-035 for the opposite handed version.
Will provide a full 90 degree window opening.
11/32" spline; handle sold separately.
Manufactured of high-pressure die-cast zinc for operator base; hardened steel drive worm and gears.

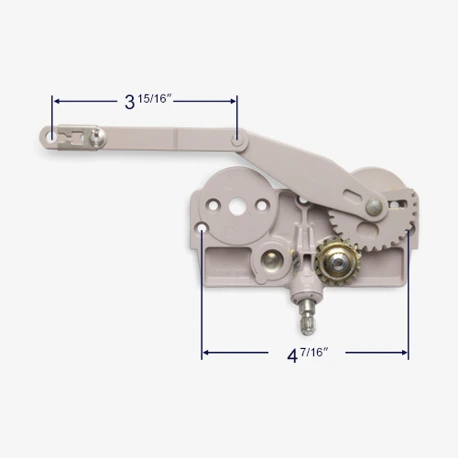

Link arm measures 3-15/16" overall with a downward offset.
Suitable for use on wood, metal, and vinyl casement and awning windows.

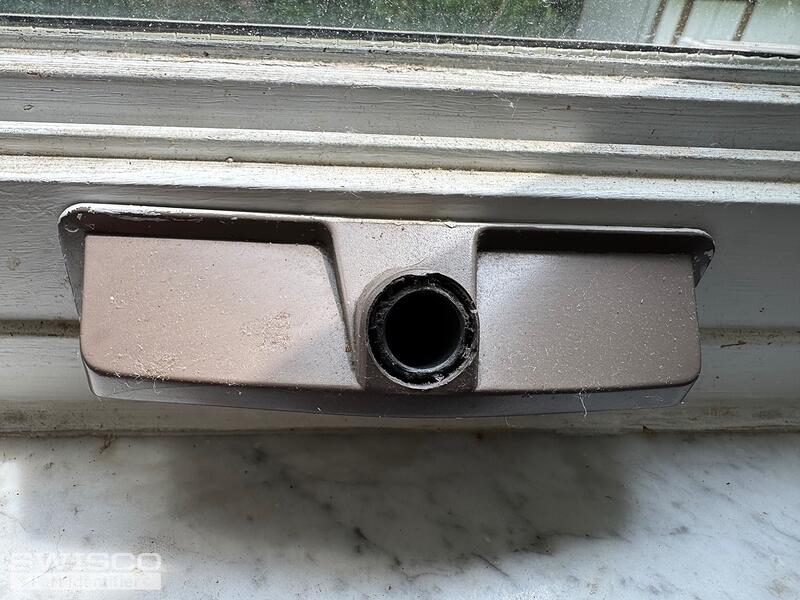

Should this operator use the 39-107 or 39-107FK?

I have four entry guard dual arm operators, (39-032) The spline on the operators have all stripped. I will replace them. The current cover matches 39-107. Can I use 39-107FK instead? I would like a folding crank.

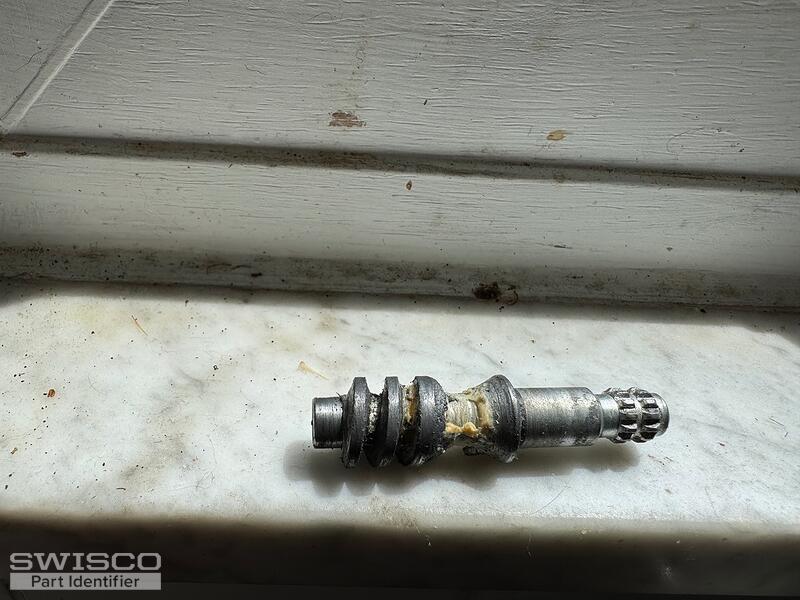

The corkscrew gear has come out my operator. Do you have it?

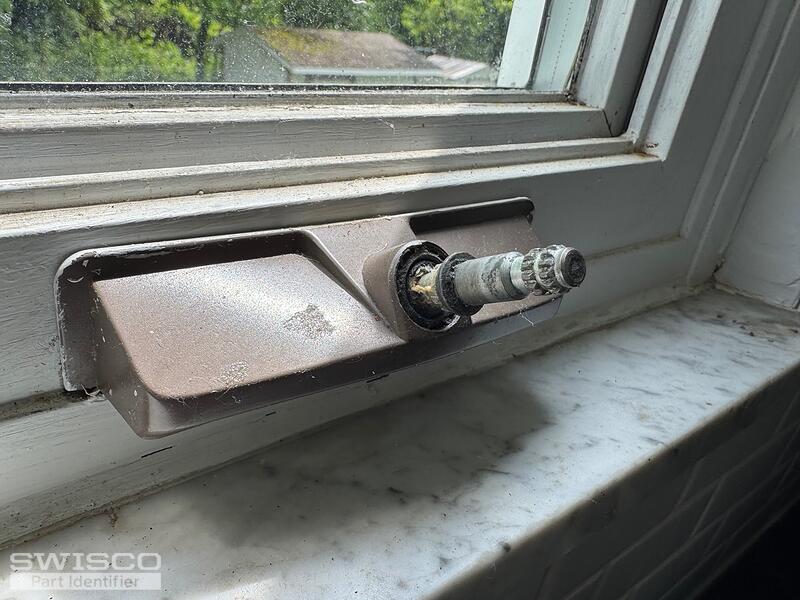

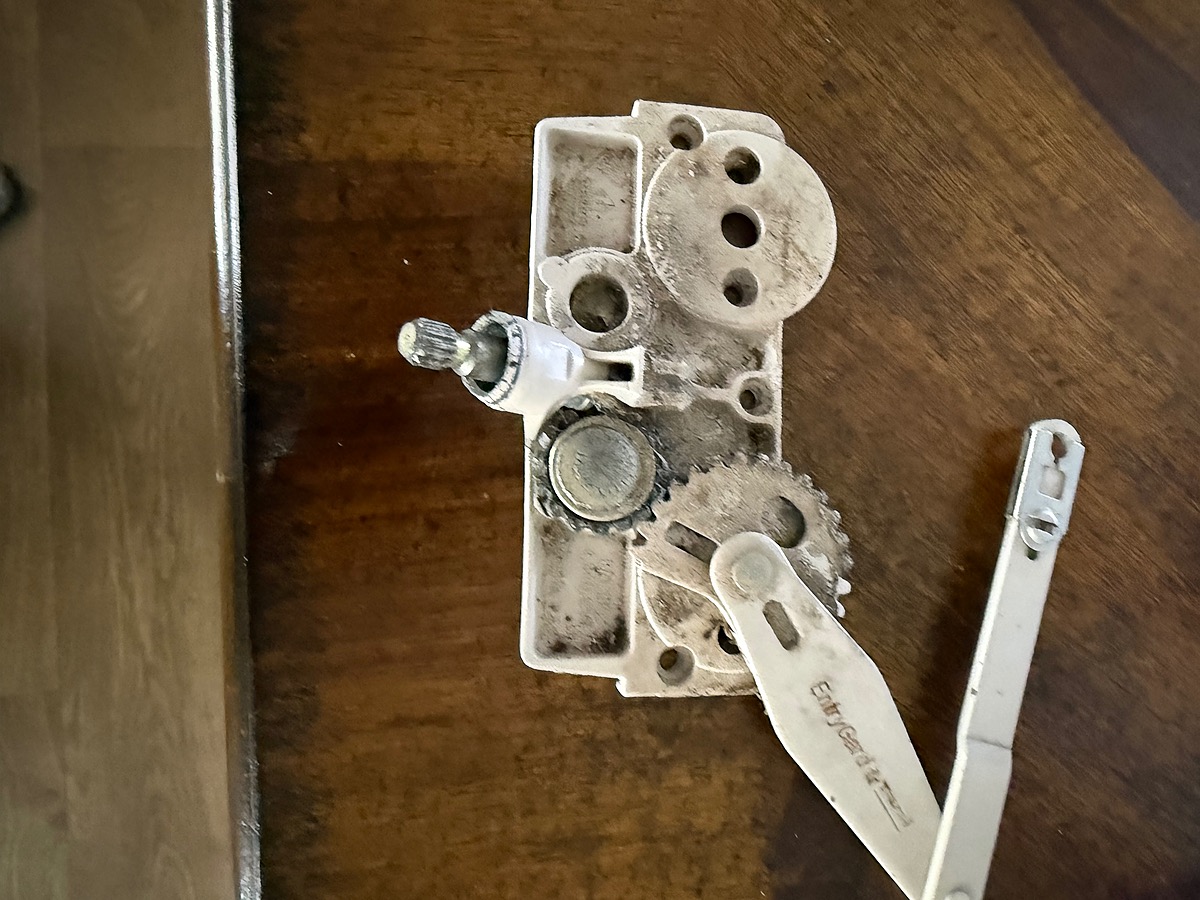

I have a situation the same on two of the windows in the house and I can't seem to locate the part/parts that I may need. on the underside on one of the cranks the numbers found are 14 45054 the other is 16 45054. When I was cranking the windows closed, these parts detatched from the window. Im not ... (cont.)

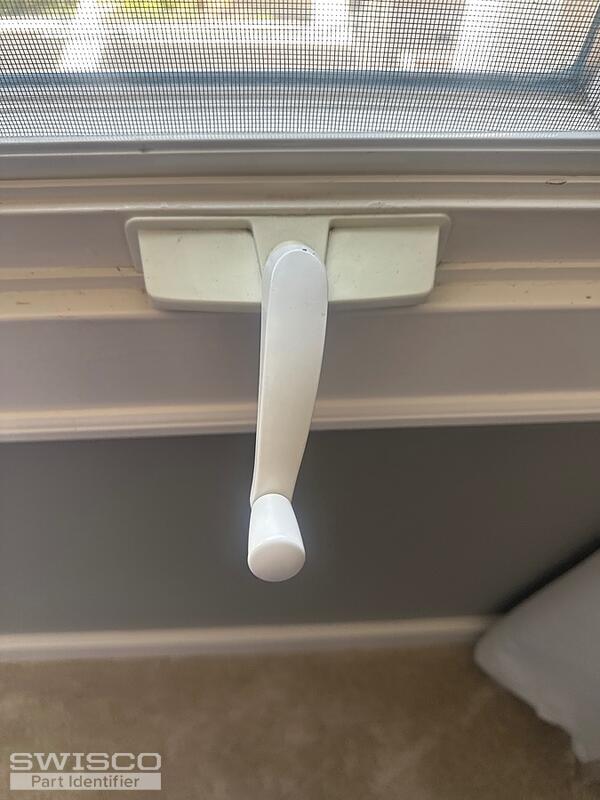

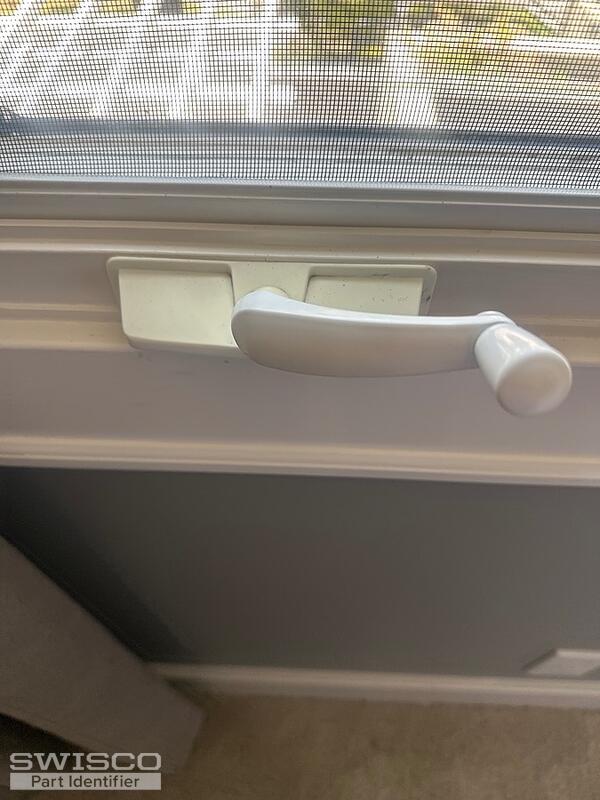

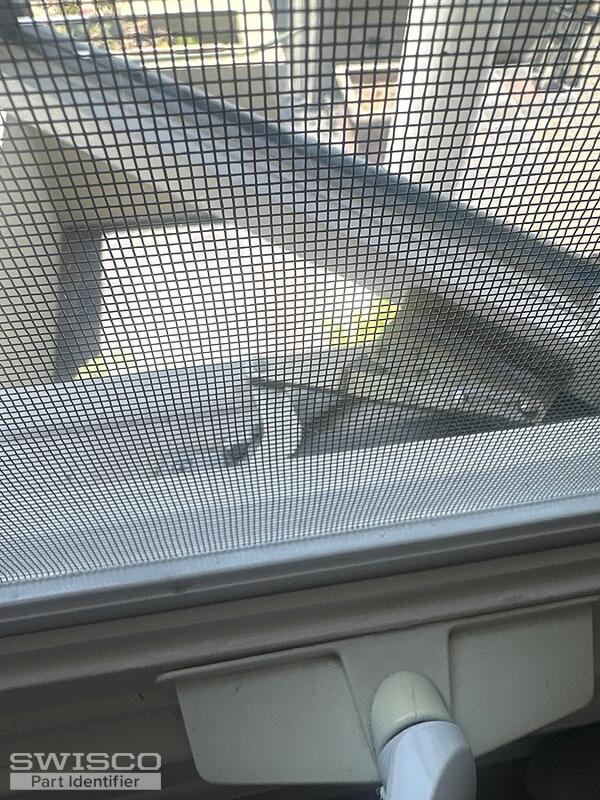

Looking for replacement window operator.

Thanks for posting. See the 39-036 Dyad Operator. Its opposite-handed version is the 39-035. See if this could work for you. For the handle and cover, see the 39-114L and 39-107 sold separately.

Casement window operator

Looking for this window operator Several #s L30841 30830 30848

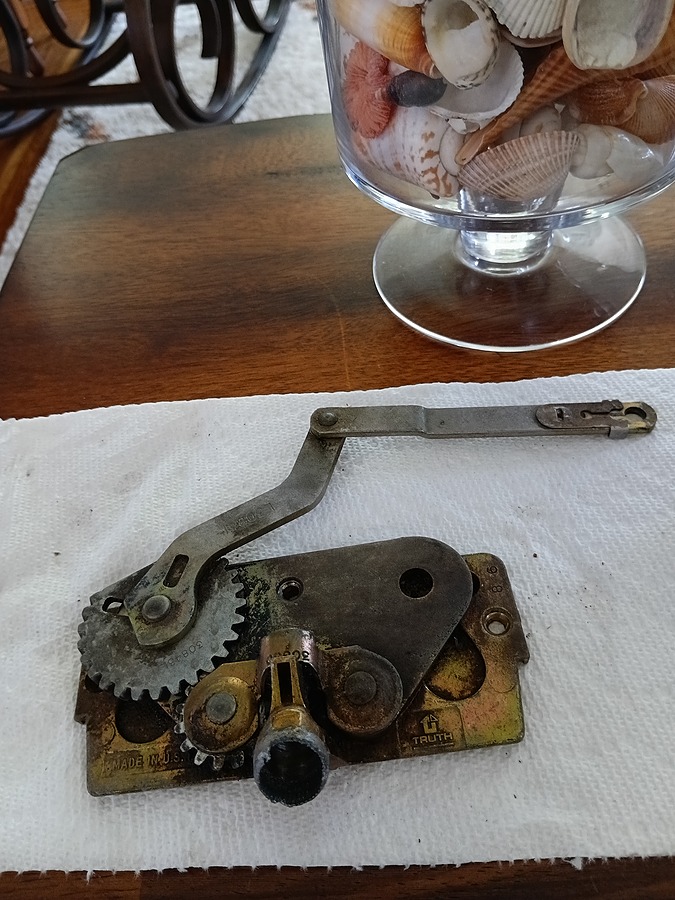

Need help identifying parts

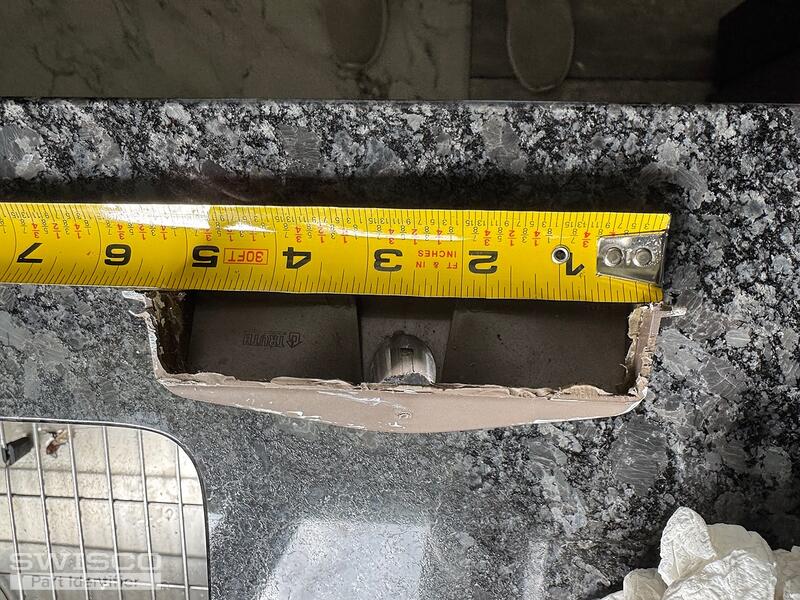

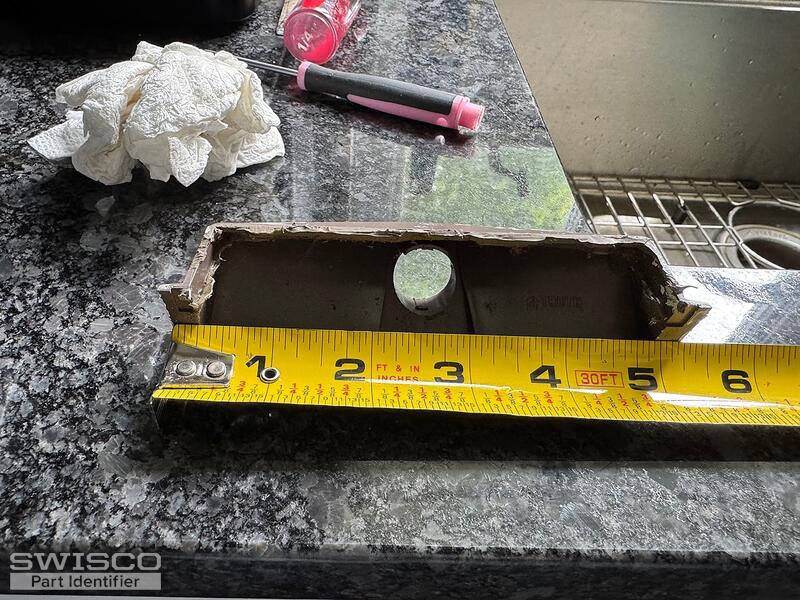

Please help identify compatible replacement parts. Need main gear body that has come apart. The brand appears to be Caradco from the cover. The plate states Truth window mechanism. Arm has the number 6591 on it

Start a new Discussion
