30D 795 balancer with a #4610108 shoe

Home Owner from New Cumberland, PA

Sep 18, 2022 2:24 pm

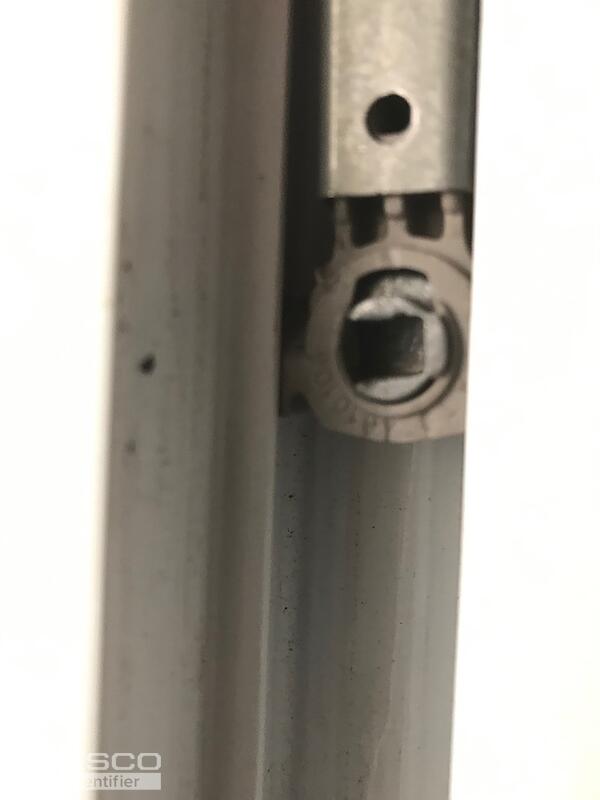

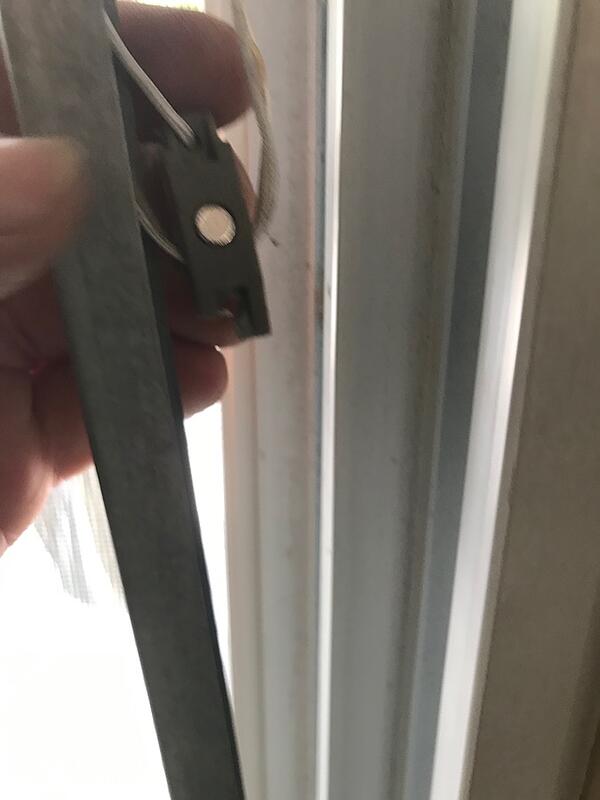

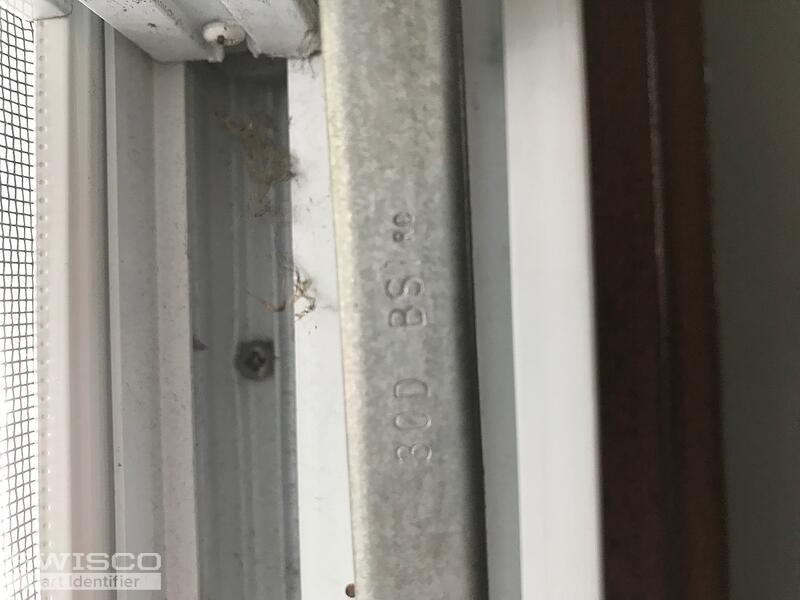

I have the 795 type balancer with a #4610108 shoe. I need the pulley which receives the cord and also receives the spring hook. Markings on channel ar 30D BSI rc. Can I buy the small pulley?

3 user uploaded images

6 Replies

Casey from SWISCO

Sep 21, 2022 2:10 pm

Hello,

We do not recommend trying to replace the pulley system in your balances since these parts are under a substantial amount of pressure and can cause injury if they come apart while installed. Your photos resemble the S795-30 (30D) channel balance but you'll need to confirm that your assembly uses the same screw clip at the end of the pulley cord and 1-1/4" wide t-lock shoe. Thanks for posting!

Home Owner from New Cumberland, PA

Sep 29, 2022 10:02 am

I measured the t-lock and it is 1.25". I do not have a screw at the top end, but rather a flat humped and angled spring piece to secure/locate the string. There is a small screw hole above the cut out to take a screw if this is all available. Could you provide the number so I can order a new left and right balancer assembly? Thanks

Casey from SWISCO

Sep 30, 2022 9:07 am

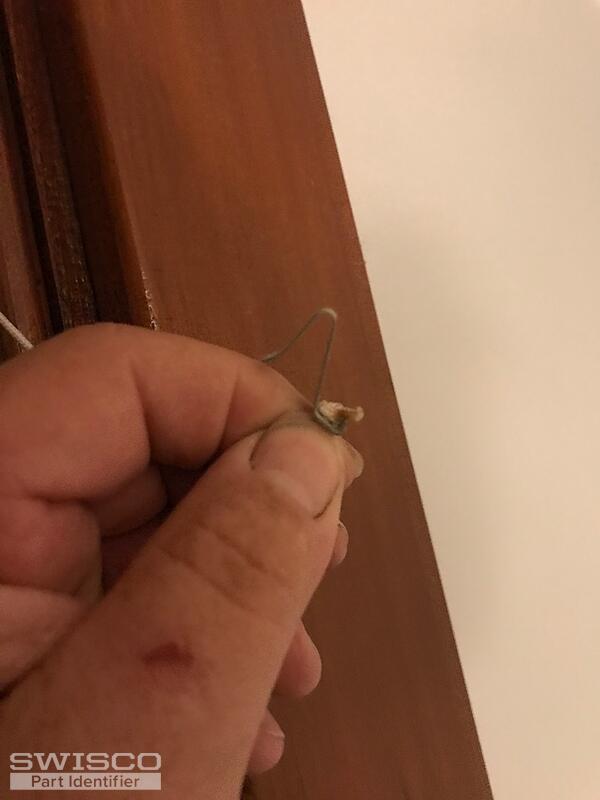

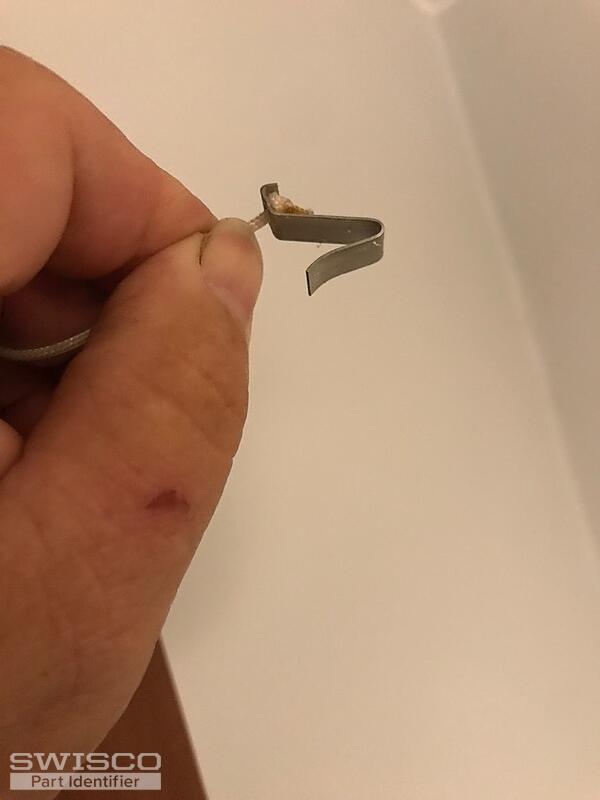

If you could show us the clip at the end of your pulley cord, we'd be happy to confirm the best replacement option for your balance assembly.

Home Owner from New Cumberland, PA

Oct 5, 2022 7:07 am

Need left and right if there is a difference.
Thanks

2 user uploaded images

Casey from SWISCO

Oct 5, 2022 8:08 am

Thanks for getting back to us. It looks like you'll need the S795-30 (30D) channel balance with the 15-198 clip attached, which we can provide through a custom order.

We just sent over an order link and price quote for you to review. Take a look and let us know if you need anything else. Thank you!
