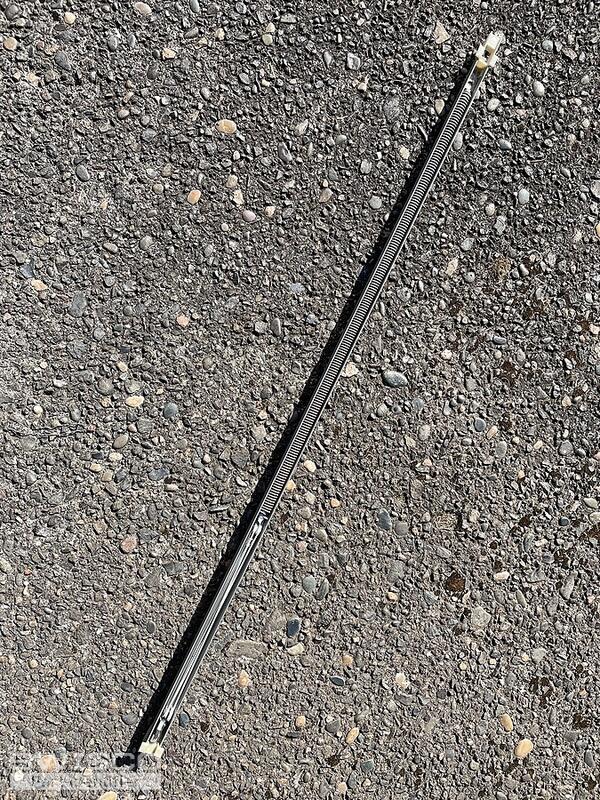

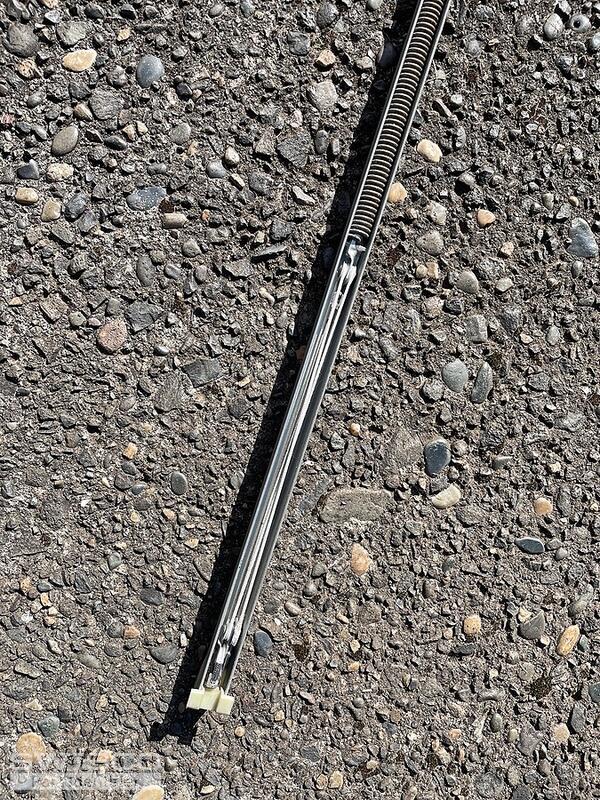

I'm not sure how to measure the length, but the metal part is 32" long.
The printing on the part is 31 3 FS CALDWELL
31 3 FS CALDWELL [Metal part is 32" long]

Quick Learner from Hood River
Jun 11, 2024 7:11 pm
5 user uploaded images
2 Replies

Jasmine from SWISCO
Jun 12, 2024 12:27 pm


Thanks for reaching out to us! Your Caldwell balance can be replaced with either our S380-32 with a 1" shoe or our S385-32 with a 1-3/32" shoe. To determine which of these is the right replacement, you'll need to confirm the measurement for the depth of your bottom shoe.
You'll need the 3130 stamp option, which can support a sash weighing 16 to 23lbs.

Comparison of the S378, S380 and S385 balance shoes.
