31" Channel Balance
Quick Learner from California
Apr 26, 2026 6:07 pm

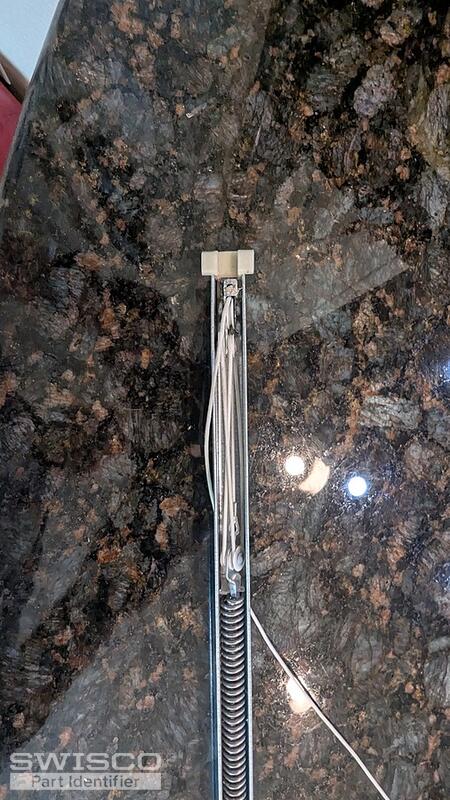

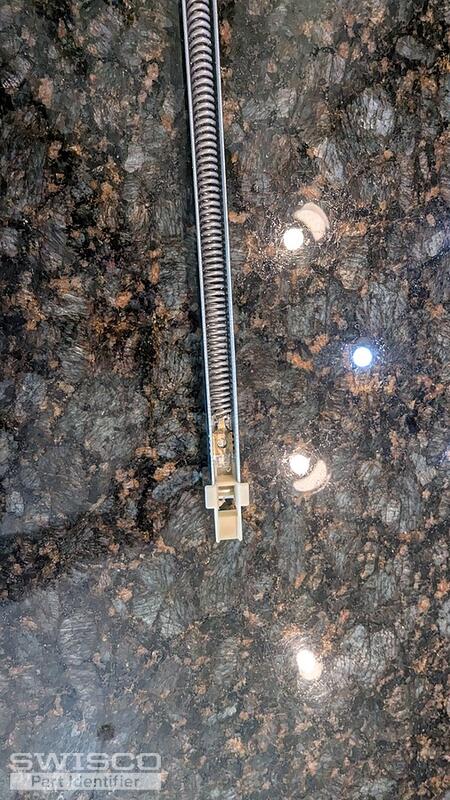

Hello, I need to replace two 31" channel balances, I think I need the 380 (1" deep guide foot) but I can't figure out the proper weight range and it's not possible to wiegh the sash. The stamp on the original channel balances is 31 3 GV 7, as shown in one of the photos. Perhaps the "3" on the original channel balance correlates to 3030? Can you help. Thank you. Sincerely, Dave
5 user uploaded images
2 Replies
Bob from SWISCO
Apr 26, 2026 11:51 pm
Hello there. Double-check the metal channel length. A stamp of 31-3 usually indicates a 32" long balance. If so, and if the shoe depth is 1", then this is an S380-32 channel balance. For a stamp option choose 3130.
