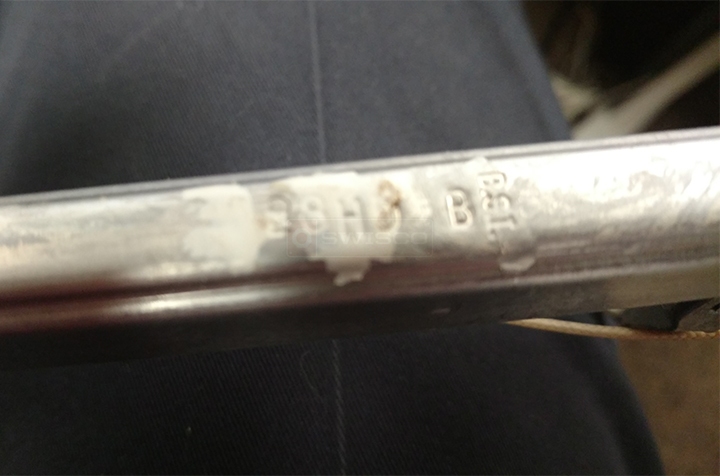

my channel measures 31 but has 28HD stamped on it.
Which do I need to order?
31" SERIES 751 CHANNEL BALANCE
Handy Person from stow ohio
Oct 29, 2016 5:49 pm
4 Replies
Paul from SWISCO
Nov 1, 2016 12:31 pm
Could you confirm the length of your metal channel? Based on your stamp, it should be 29" long, not 31".
Home Owner from Stow ohio
Nov 1, 2016 1:50 pm
The entire channel is 31 and the stamping is 28 hd
Casey from SWISCO
Nov 2, 2016 4:54 pm
To determine the option you will need for a 31" Series 751 balance, remove the window sash and place it on a scale.
This series 751 ribbed channel balance also known as a block and tackle balance has a 31" long metal ribbed channel and is for a tilt window. This balance comes fully assembled with a 15-014 shoe. The channel width measures 9/16" but is considered 1/2" in the trade.
This series 751 ribbed channel balance also known as a block and tackle balance has a 31" long metal ribbed channel and is for a tilt window. This balance comes fully assembled with a 15-014 shoe. The channel width measures 9/16" but is considered 1/2" in the trade.
| Stamp Option | Sash Weight Range |
|---|---|
| 30R | 15 to 23 lbs |
| 30HD | 23 to 29 lbs |
| 30TG | 29 to 36 lbs |
*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.
