Hi there,
The stamp is marked 31 inches, but when I measure the metal channel, it is exactly 32 inches. Should I get the 32 inch balance? Also, i have attached the stamp on the balance. Can you decipher this for the weight?
Thank you,
Louis
|
Bob from SWISCO responded:
March 8, 2022
Hi Louis. A few things. First, the first two digits on that stamp actually refer to the height of visible glass in the window, not the balance length. The visible glass height in a window that uses non-tilt window channel balances is usually 1" less than the metal channel length. Therefore, a 32" balance does make sense for a balance with a stamp starting with '31'. Second, if you need to identify the balance Series, please send us pictures of the nylon fittings and we'll do our best to confirm it for you. |

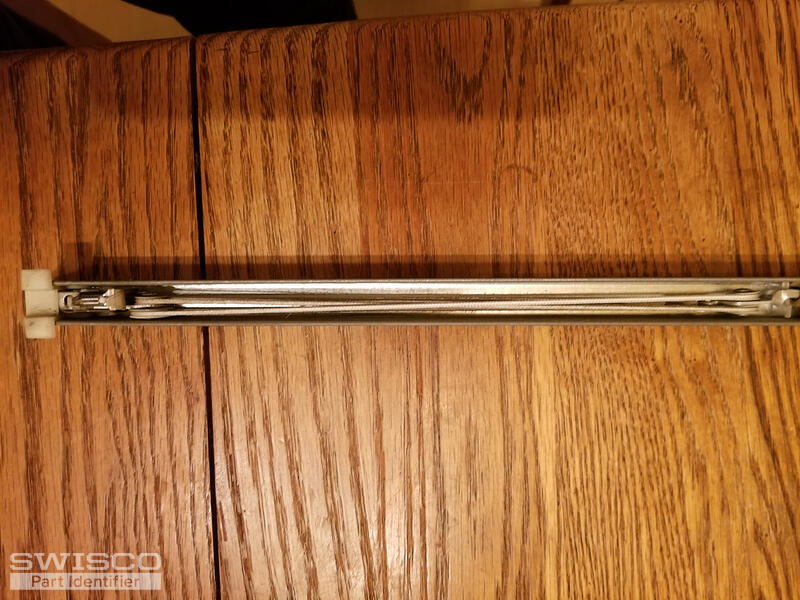

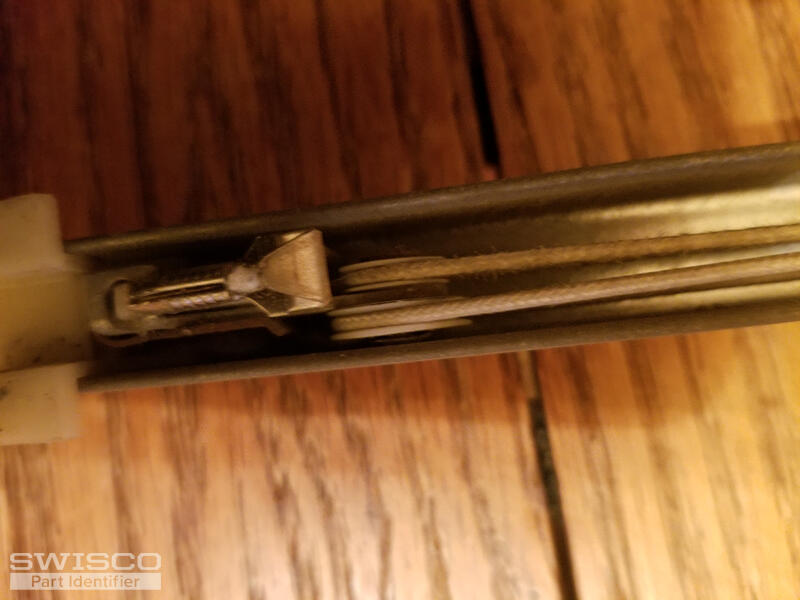

Thank you for confirming the 32 inches. I have attached two photos of the nylon string mechanism. If you can determine the series, I will weigh the window and would like to order two balances. Thank you for your help.
Regards,
Louis
|
|
Bob from SWISCO responded:
March 9, 2022
Hi Louis. We're getting there. I also need to see the fitting on the other end of the metal channel. Both are needed to identify the series. From there I will promptly do this for you. |

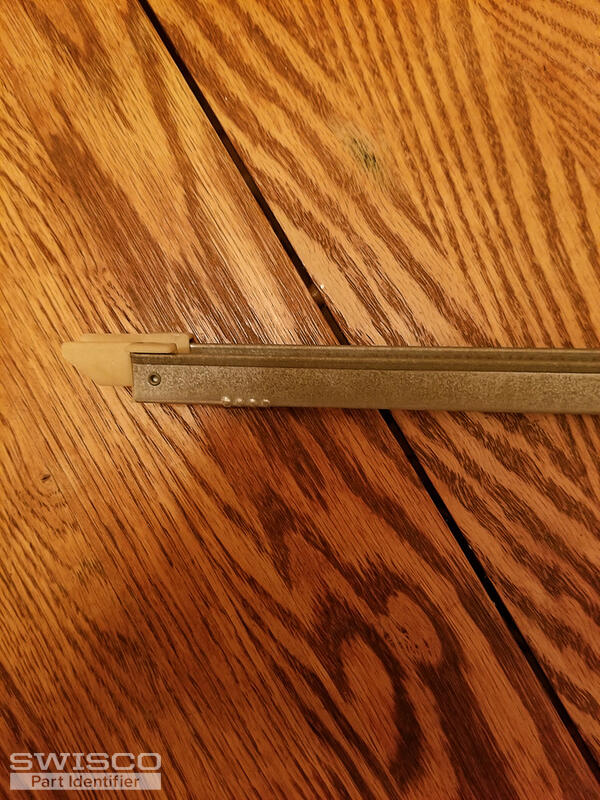

Thanks for the quick response. Here are pictures of the other end of the balancer. Hopefully this will help in determining the series. Thank you once again for your help.
Regards,
Louis
|
|
Bob from SWISCO responded:
March 10, 2022
Perfect, thanks. See our S380-32 or S385-32 Channel Balances. The only difference between these two balances is the depth of the bottom nylon shoe, or 'heel-to-toe' measurement. See the image below. Compare your old balance to both options to see which you need. In either case you'll need to choose a stamp option. It looks like your old balance was stamped 31-3, so go with 3130.
Comparison of the S380 and S385 balance shoes.
|
