3140 stamp balance

Question

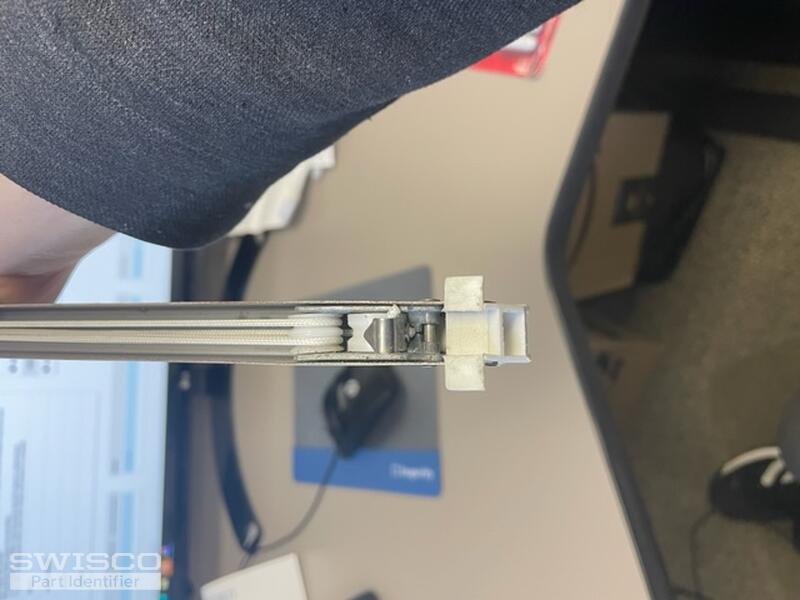

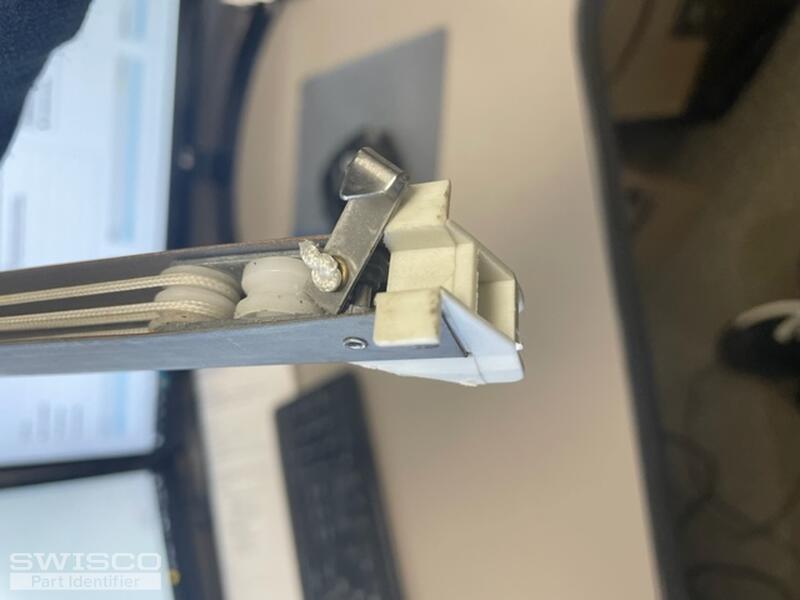

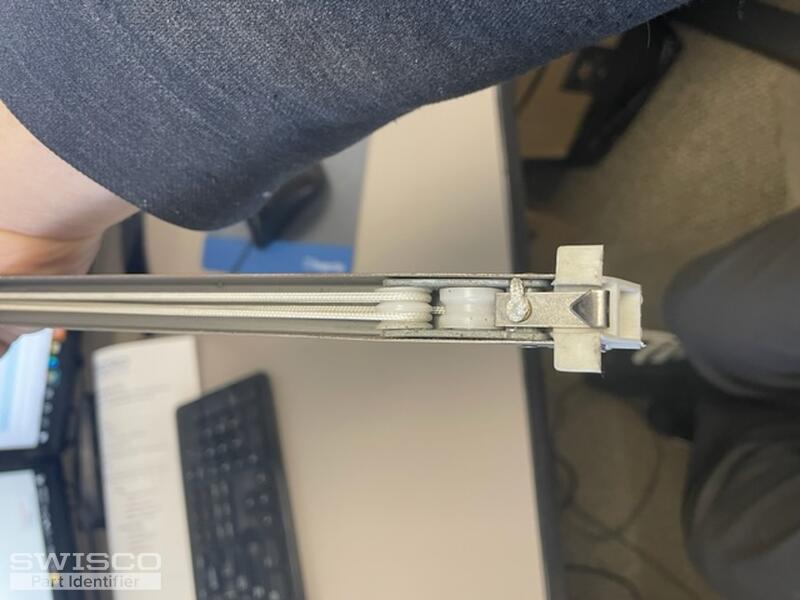

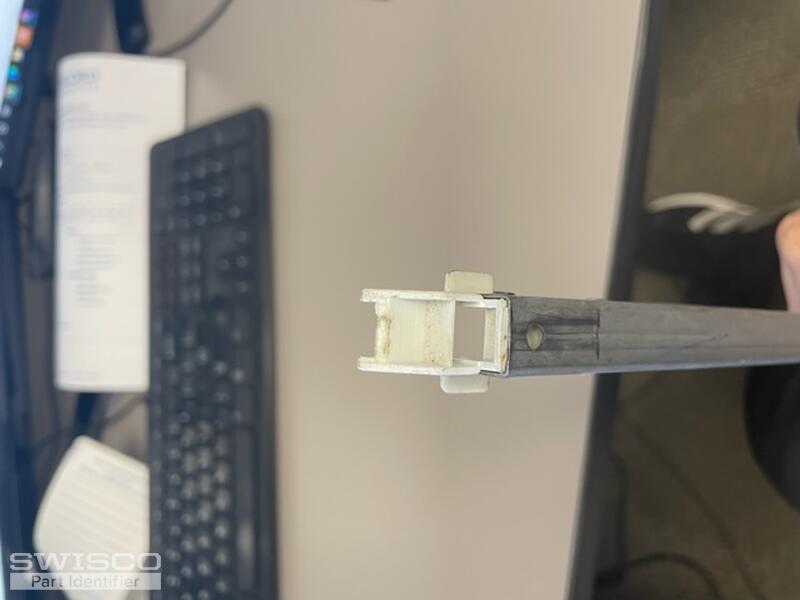

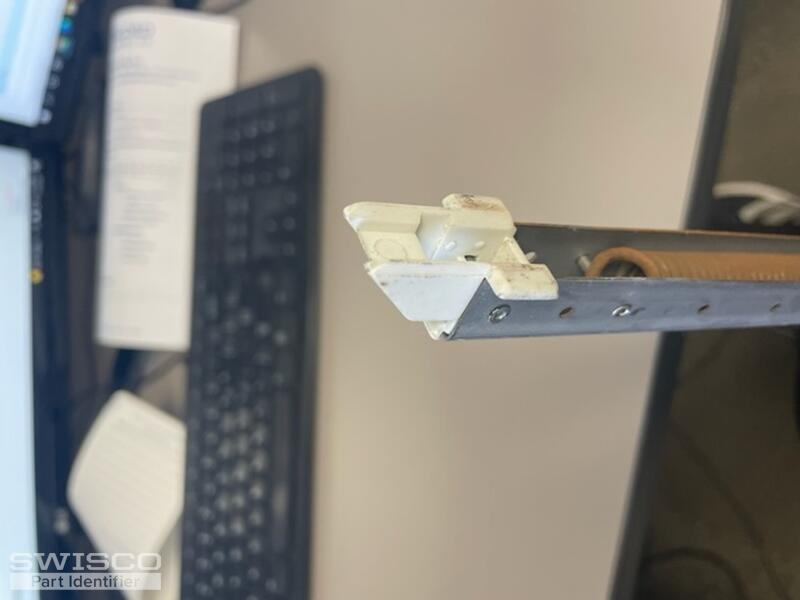

Length of metal channel - 32"
Width of metal channel 1/2"
Stamp - 3140
Total balances needed - 4

Emily · Accepted Answer

Hey there!

With this combination of attachments, you could have either an S380-32 or S385-32 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You will also need to select the 3140 stamp option.

If you have any questions just let us know!

Comparison of the S378, S380 and S385 balance shoes.
