32-1 tv bsin
Hello, thank you for posting,

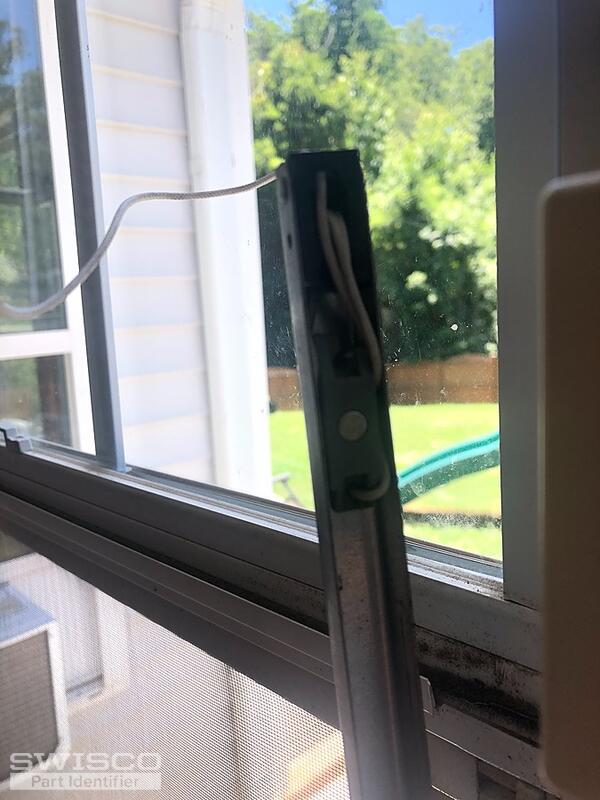

Your balance resembles the Series 795 channel balance. To move forward, we will need a few details confirmed to determine the best fit.

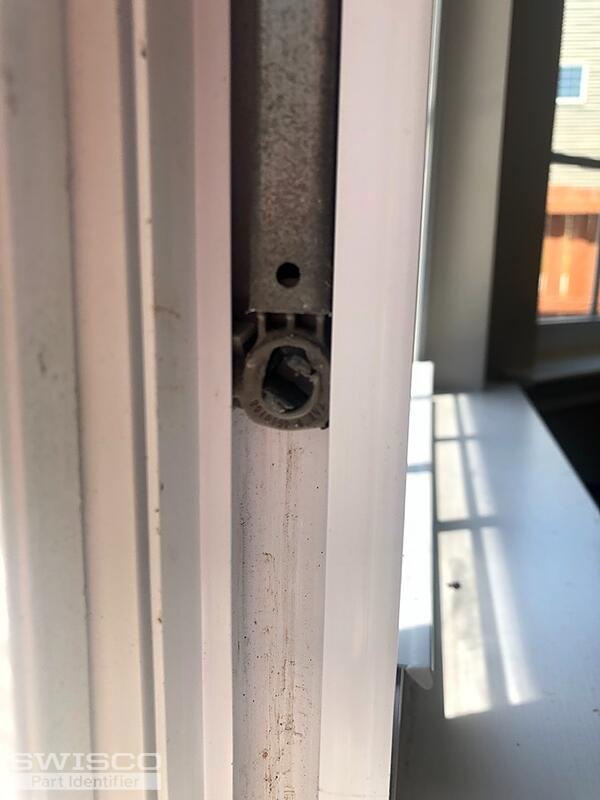

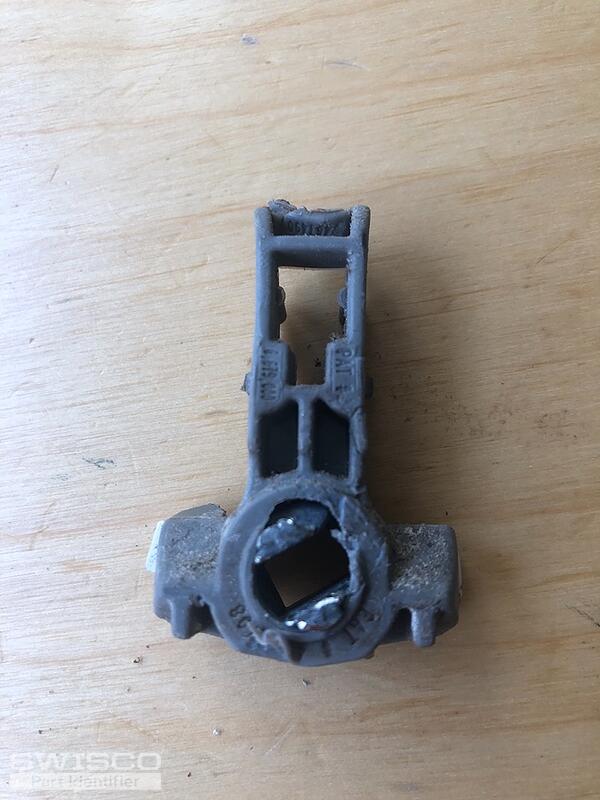

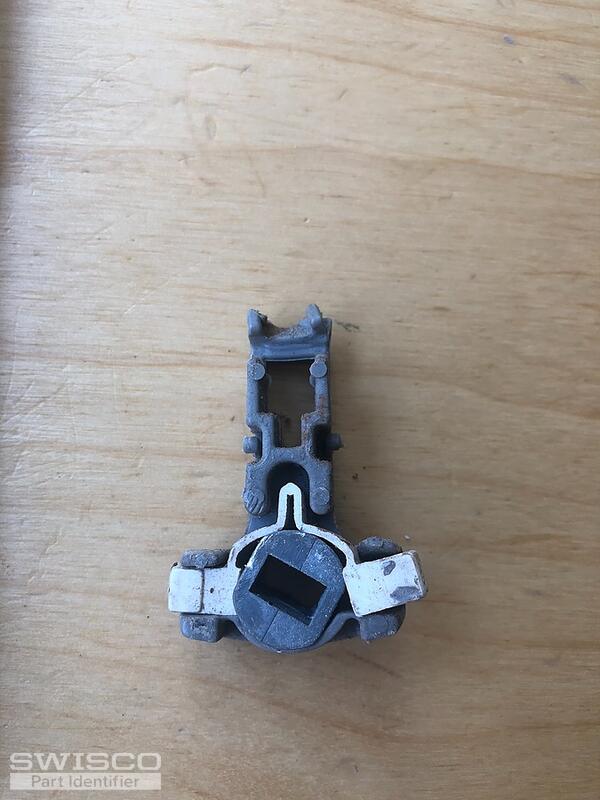

We will need to see the balance and T-lock shoe removed where the width of the shoe can be measured along with determining if it has a closed metal cam or open(see through) style.

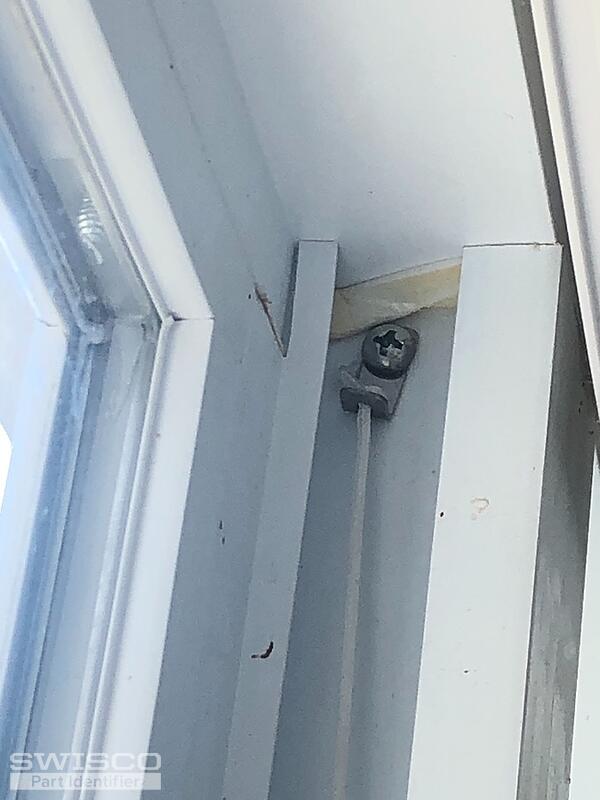

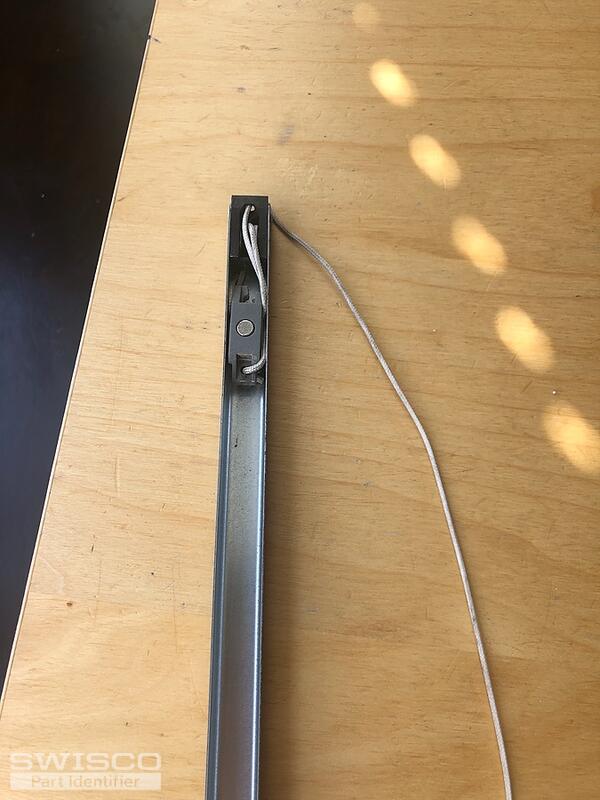

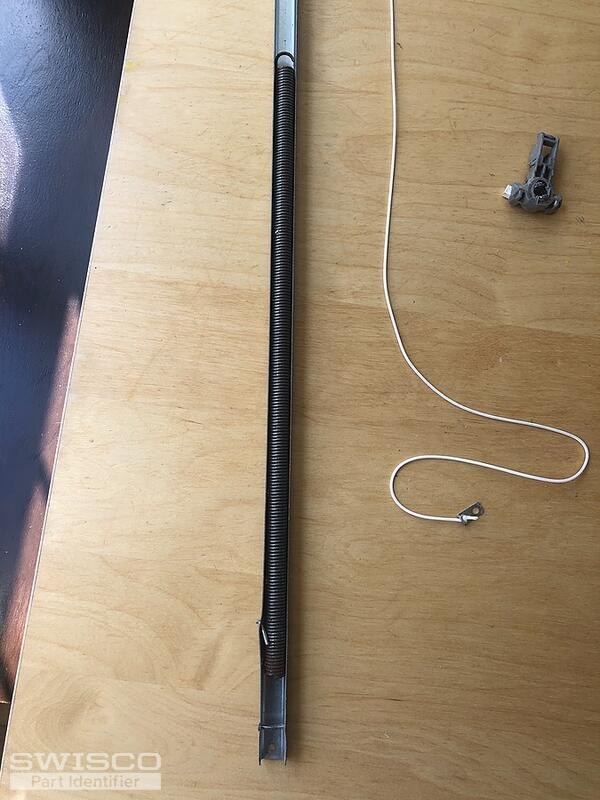

What is the length of the metal channel excluding the shoe? Also does the balance install into the window channel with a hook or a screw in clip? Please let me know!
Thank you,
Please review the S795-33 channel balance. For the T-lock shoe, please double check the width of the shoe as we do not carry 1-1/2" option. I believe it should measure 1-1/4" like our 15-195B. If the dimensions match up, this shoe will need to be purchased additionally with the balance and switched out with the stock shoe before installation.
The 32-1 stamp does not directly translate to our spring strength stamp option. To move forward are you able to provide the weight of the window sash? The sash would need to be removed and placed on a bathroom scale. From there we can determine the best fit to support the sash when opened. Thank you!
