32 " 3150 with initials jp

Question

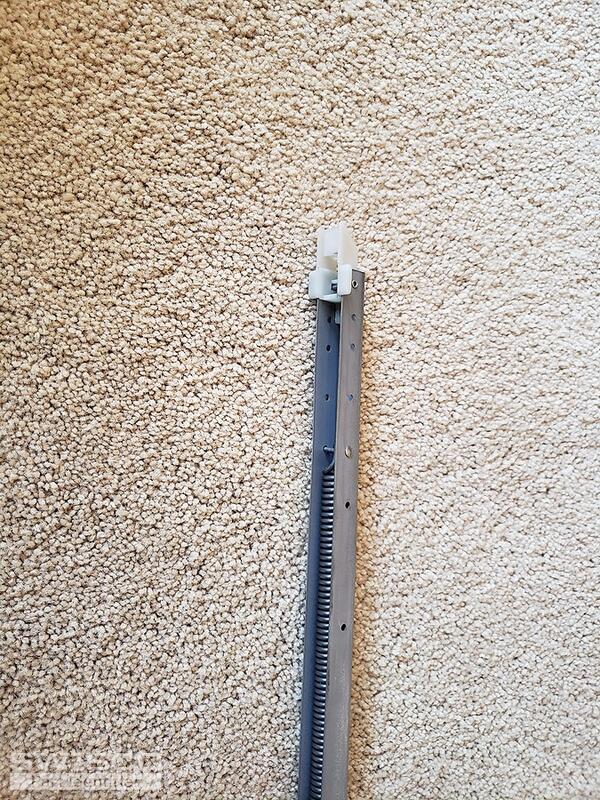

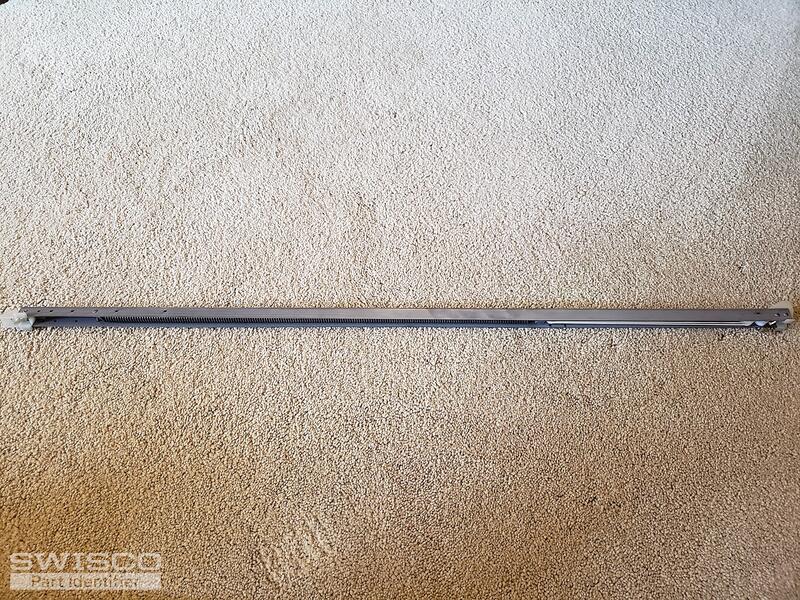

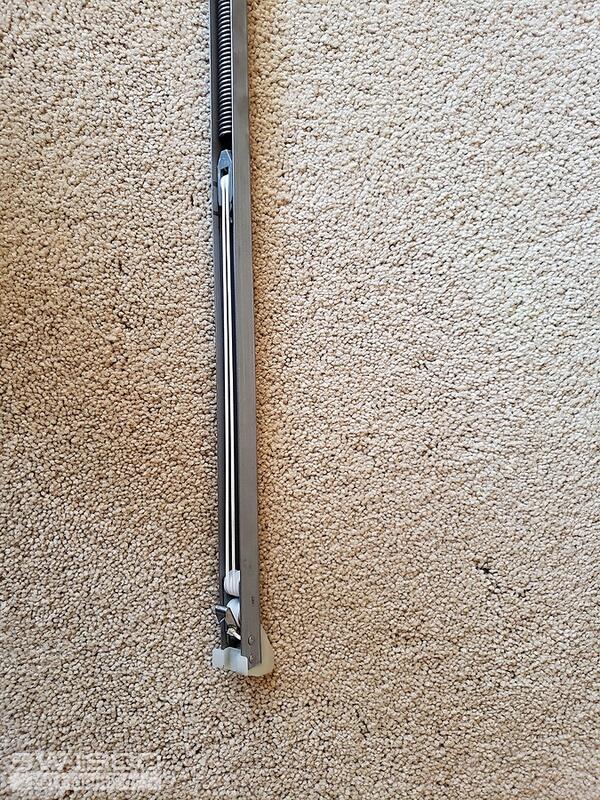

I need these for several windows, all 32 inch. I may need a few window stops at the top that screw into the window side but have not really double checked that. (wing channel top stop?) I need the Balances with both the top and bottom plastic pieces. Thanks Mitch

Casey · Accepted Answer

Hello,

With this combination of attachments, you could have either an S380-32 or S385-32 channel balance. You’ll need to measure as shown below. The Series 380 has a 1" bottom attachment, and the Series 385 has a 1-3/32" attachment. You'll also need 3150 spring strength options for your replacement balances.

If you need new top sash guides that hole the balance in place below the sash, we'll need to see an undamaged guide removed from the window, along with dimensions, to compare to our inventroy.

Thank you and let us know if you have any other questions or concerns.

Comparison of the S378, S380 and S385 balance shoes.
