32 inch crossbow balance replacement

Landlord from auburn il 62615

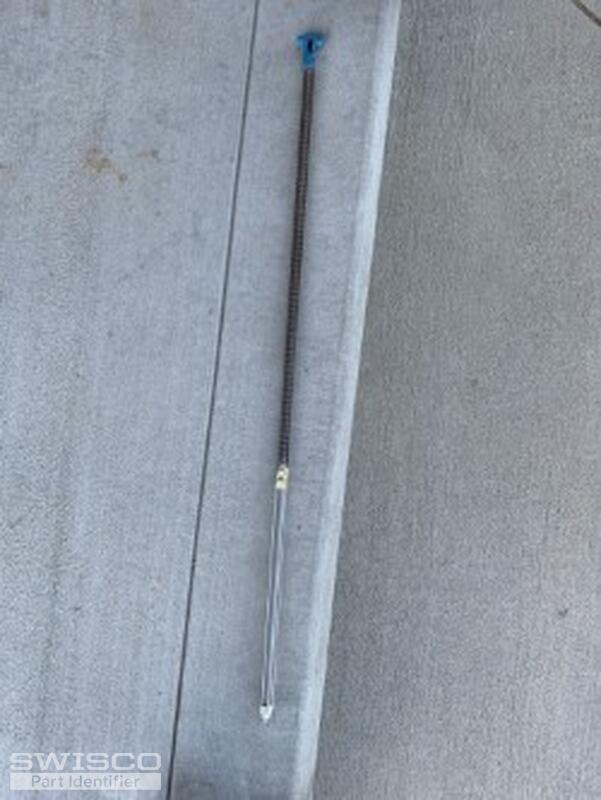

1 1/4 inch wide T lock. 32 inches long. I need to replace both sides single hung vinyl window

please and thank you
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

The window balances you are searching for are an old, discontinued crossbow channel balance. The good news is that these can most likely be replaced with our Series 795 Channel Balance. Given that the length of your balance is 32", you'll need the S795-32, which comes assembled with a 15-195 1-1/4" T-Lock Balance Shoe.

You'll need to obtain the exact weight of the sash to confirm the stamp option needed for your replacement. There is a chart below the product description that shows the weight range each stamp option can hold.
