35 inch block and tackle for Silverline Window

Home Owner from Phoenixville PA 19460
May 19, 2023 2:31 pm

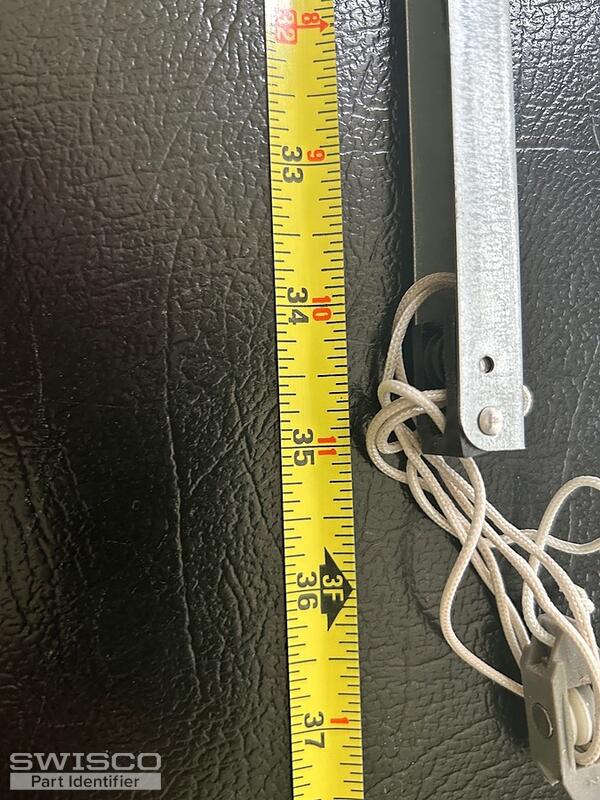

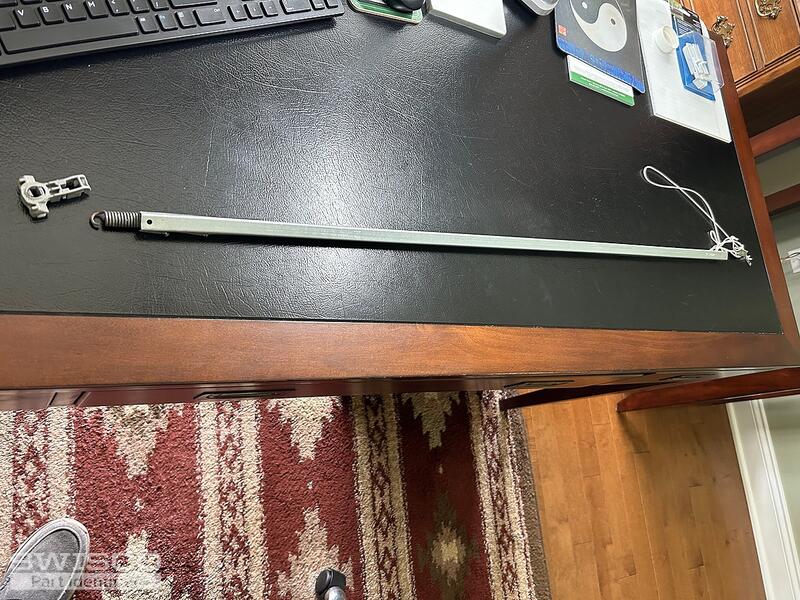

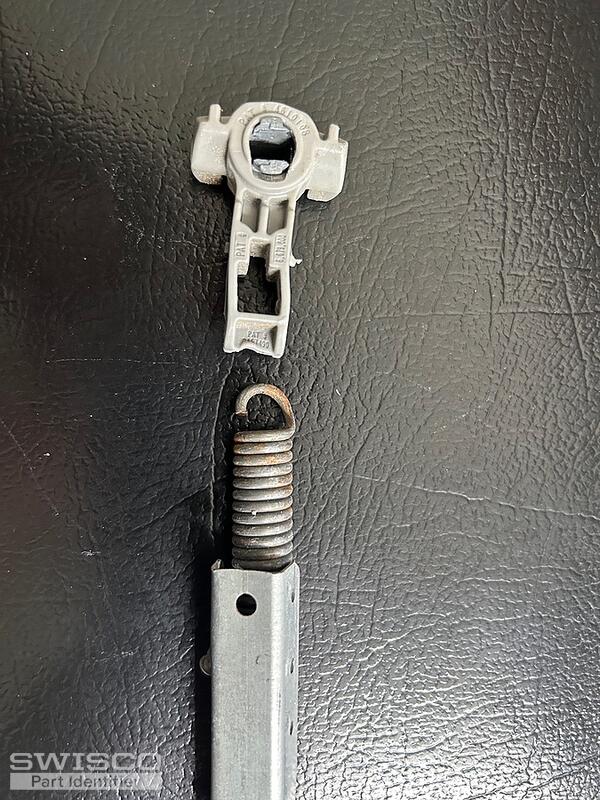

Left side balance
IMG_2596 IMG_2595 IMG_2594 IMG_2593
4 user uploaded images
1 Replies
+ Add a Comment
Lauren
Lauren from SWISCO
May 22, 2023 2:59 pm
SWISCO
EXPERT

Hello, thank you for posting,

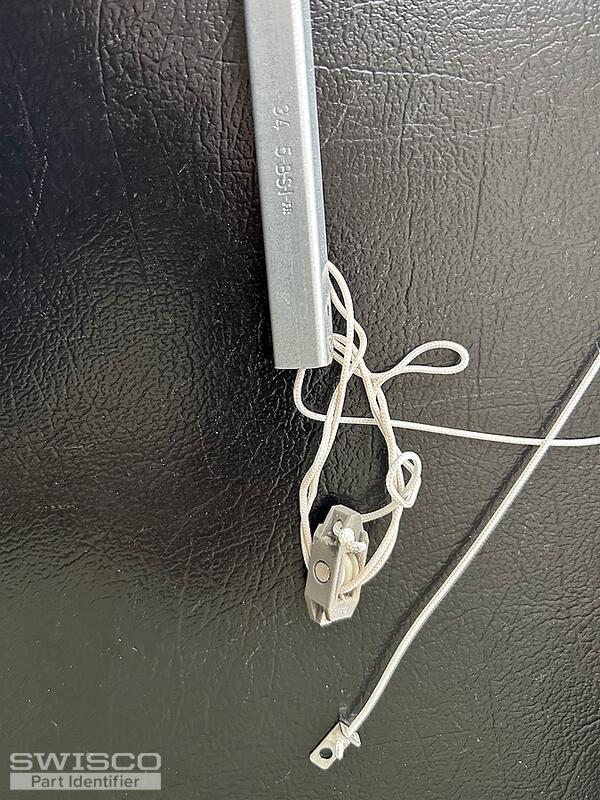

Your balance resembles the Series 795 channel balance. The 34 5 stamp does not directly translate to our stamp options, but for a 35" metal channel, we believe you can use a 35E stamp option. This stamp can support a 32-34 pound window sash.

We recommend obtaining the weight of the window sash to confirm this is the right spring strength needed. Please review and let me know if you have any additional questions.
