3/8" ribbed

Quick Learner from USA
May 21, 2024 4:14 pm

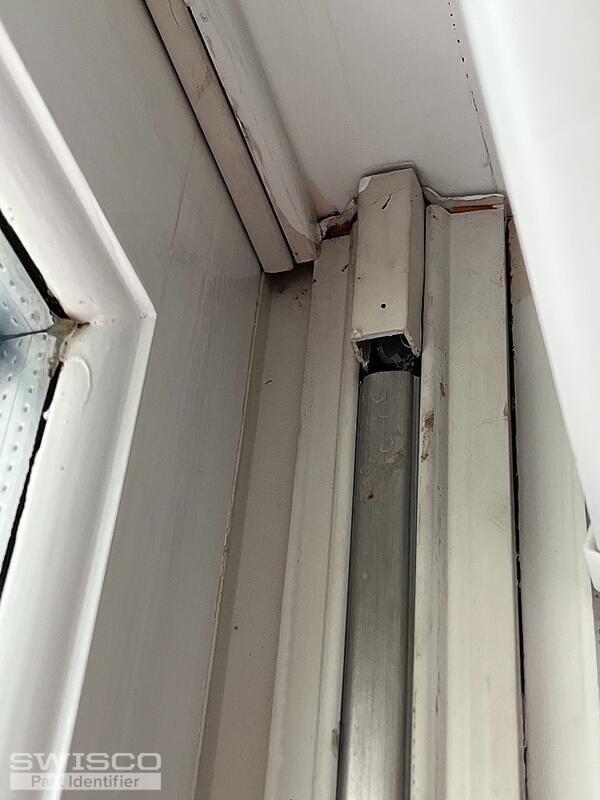

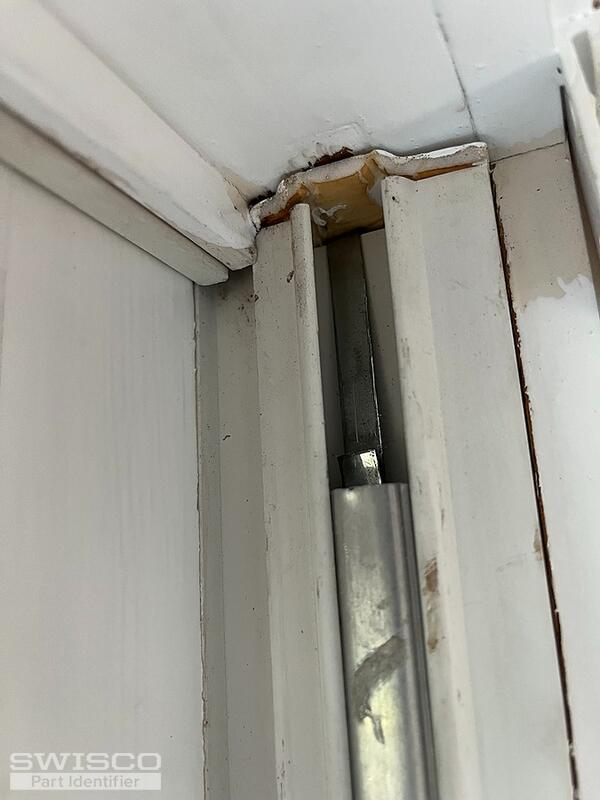

Can't identify channel balance 3/8".3/8" ribbed

I rechecked the channel balance measurement and it is 3/8 inch.

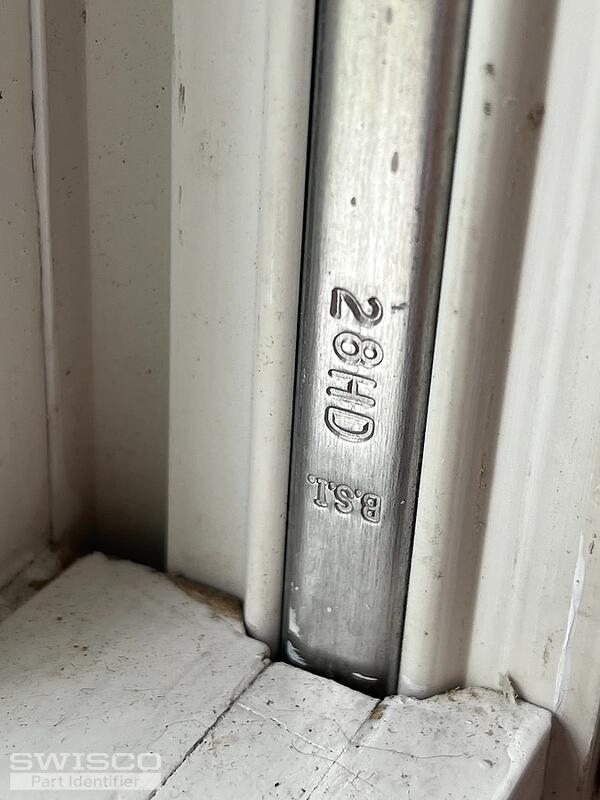

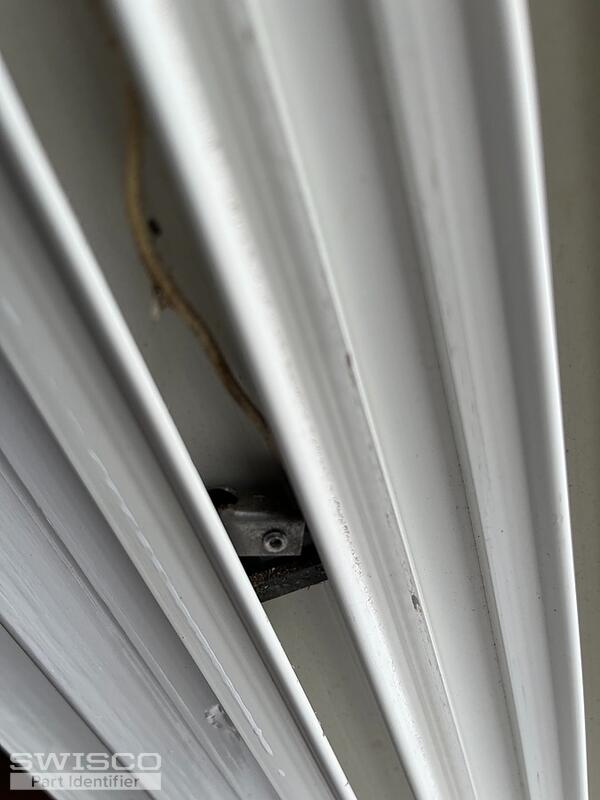

long s clip knife lock shoe sash stop 28HD stamped metal channel
4 user uploaded images
1 Replies
Emily
Emily from SWISCO
May 23, 2024 2:18 pm
SWISCO
EXPERT

Hey there!

Thanks for reaching out to us. This looks like our Series 751 at first glance. However, the metal channel for ours measures 9/16" wide. We do sell a balance with a smaller channel which measures .478" wide by .454" deep though it'd have to be a custom order.

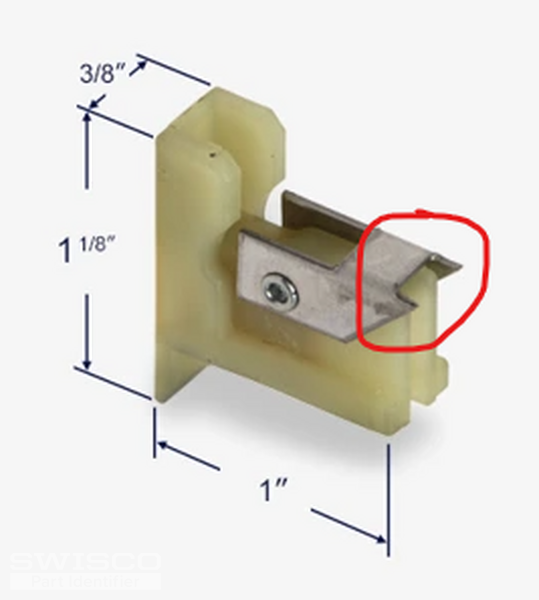

Furthermore, the metal tab on your knife lock shoe is curved. The 15-014 is the default shoe the S751 comes attached with but you'll notice this has a differently shaped metal tab. We can't promise our replacements will work due to this, unfortunately.

If you'd like to move forward with the custom order, please let me know. I'll be here if you have any questions!

tab
