590CSB pivot lock shoe replacement

Question

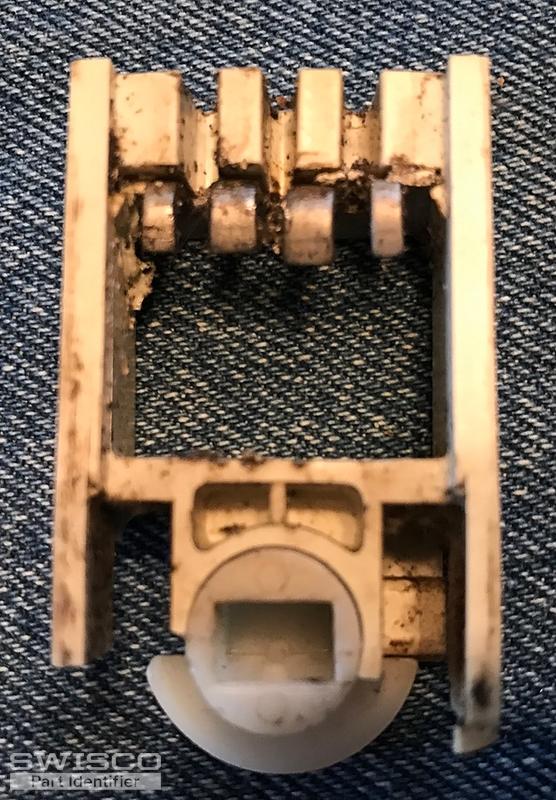

I read in your posts that the 590CSB pivot lock shoe has been discontinued and noticed your suggested replacements, however my shoe has a white cam versus the blue that were discussed and the depth of the shoe is 1/2", not the 5/8" that was mentioned before. I am considering the 15-046 pivot lock shoe and 26-366 pivot bar offered through Swisco. Another side question, did all the 590CSB pivot lock shoes have the same dimensions or was this a generic number stamped on the part.

Casey · Accepted Answer

Hello,

Unfortunately, the number stamped on the pivot shoe is not enough information to identify a replacement. We've recommended a handful of pivot shoes to replace pivot shoes with the same stamp number. I would strongly recommend removing the pivot shoe, and pivot bar if you need that as well, and sending us photos of the parts. We'll also need to confirm the width and thickness of the shoe while removed from the window. Thank you!
