632 top spring 732 bottom spring

Quick Learner from Sykesville Md

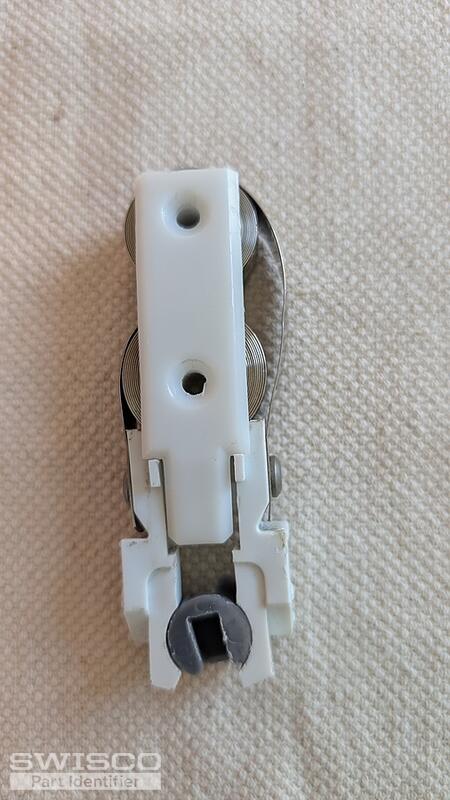

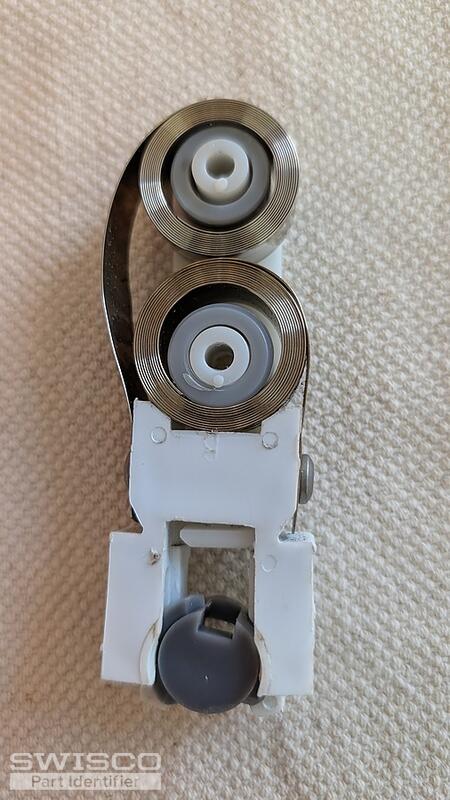

I need two of these spring balances. The spring seem okay but I guess we should get the entire unit. Thanks
2 user uploaded images
2 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

If you only need to replace the pivot shoe, please review the 15-180. Compare the dimensions below to confirm a good fit!

If you would like to replace all parts, see the 15-181 double support clip and 15-182 bushing. For new springs, based on the original stamps, see the S190-740 that can support 7 pounds of weight and the S190-640 that can support 6 pounds. The total sash weight should weigh 26 pounds.

Please review and let us know if you have any additional questions!

Alternate image for 15-180
Alternate image for 15-180
