70073 DH window Balance assembly

Quick Learner from California

Jun 28, 2023 5:34 pm

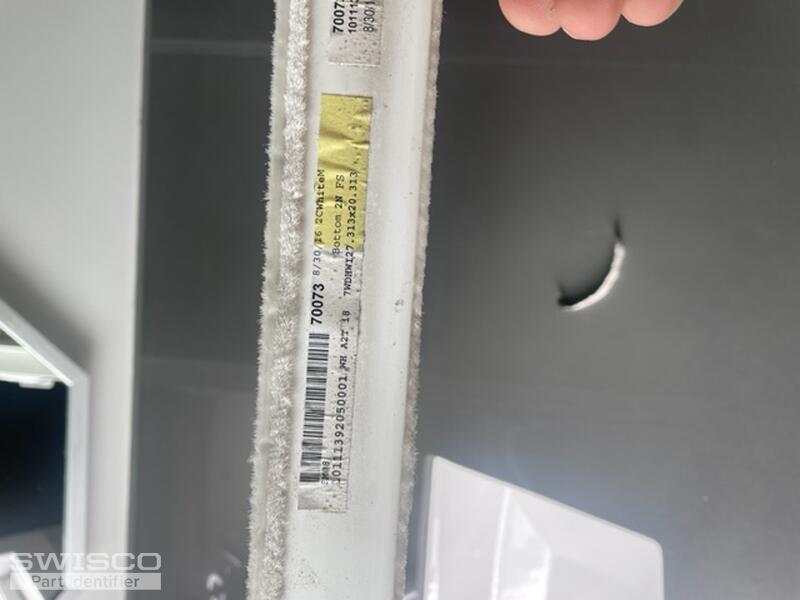

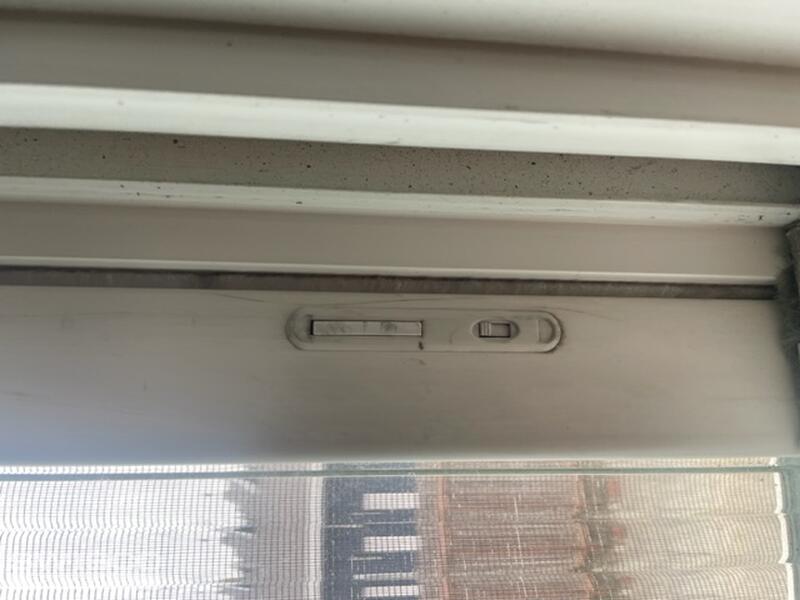

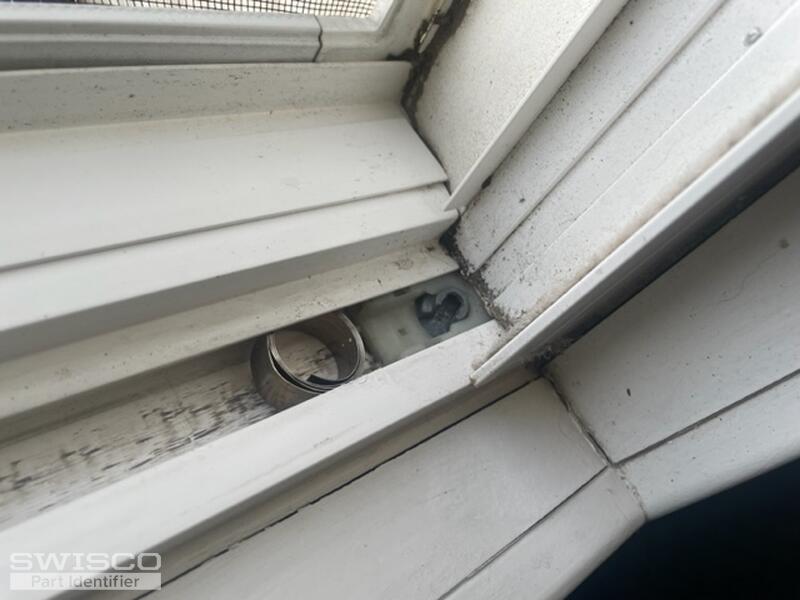

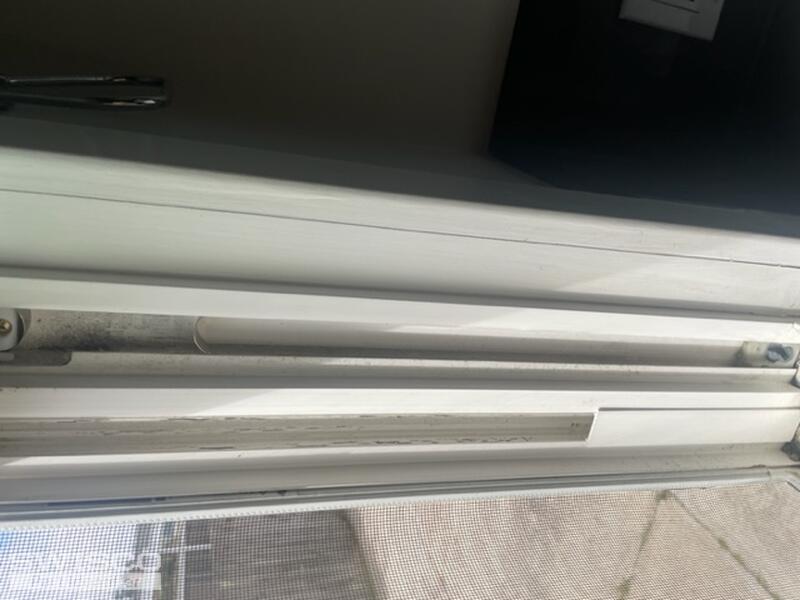

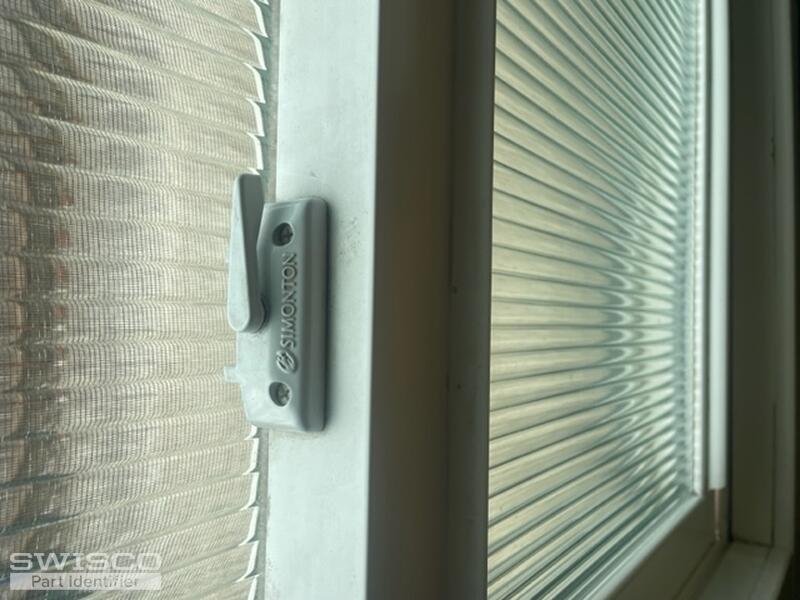

I have a Simonton 70073 DH window that has a broken balance assembly. I would like to replace both. I beleve they are the coil type. I have added pictures.

Thanks

Chris

5 user uploaded images

4 Replies

Lauren from SWISCO

Jun 29, 2023 12:20 pm

Hi Chris, thank you for posting,

To further review, we will need to see the pivot shoe that the coil attaches to removed from the window channel. Please provide written out dimensions of the width and thickness of the shoe along with the thickness of the coil spring. From there we can narrow down our selection to determine the best fit. Thank you!

Quick Learner from California

Jun 29, 2023 2:30 pm

Can you send me an example of the "shoe" and are you looking for the width of the coil metal or the thickness of the metal?

thanks
Chris

Lauren from SWISCO

Jun 30, 2023 8:37 am

Hi Chris,

Your pivot shoe resembles either the 15-199 or 15-228. The original will need to be removed to confirm the exact dimensions. You will want to measure the width of the coil band. It should either be 3/8" thick or 1/2" thick. Once we have this information, I can confirm which is the best series to use for your window. Thank you!
