ALSIDE #201 DBLH WINDOWS

Question

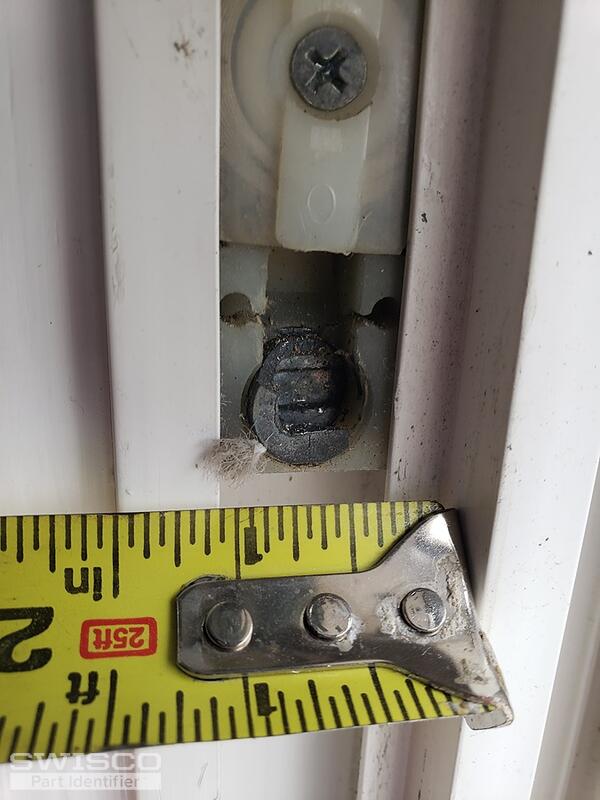

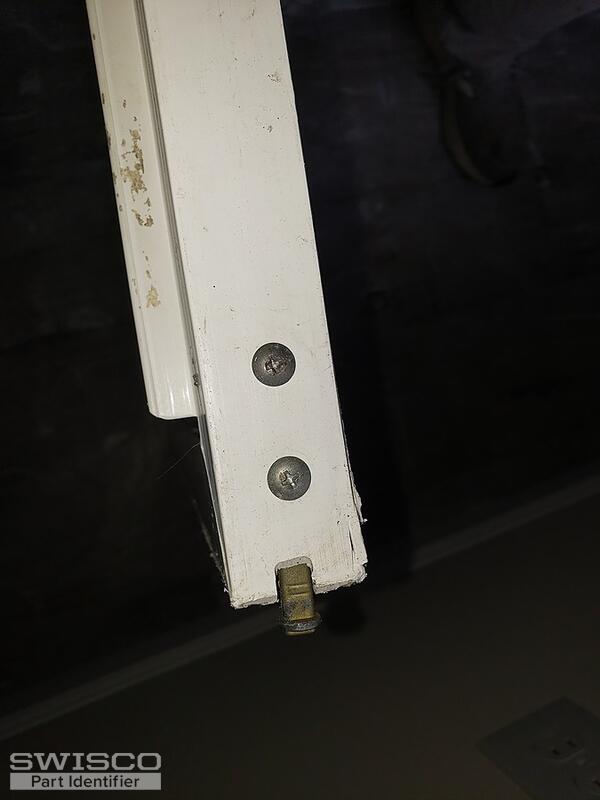

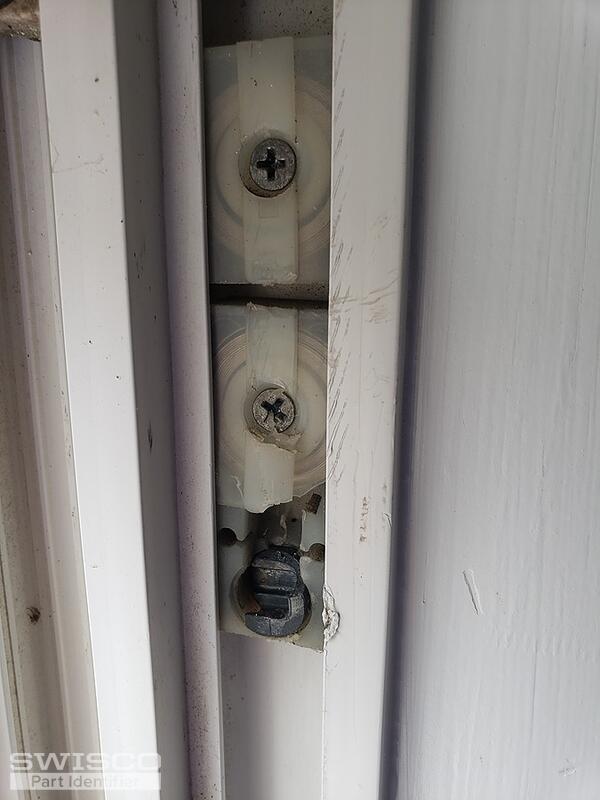

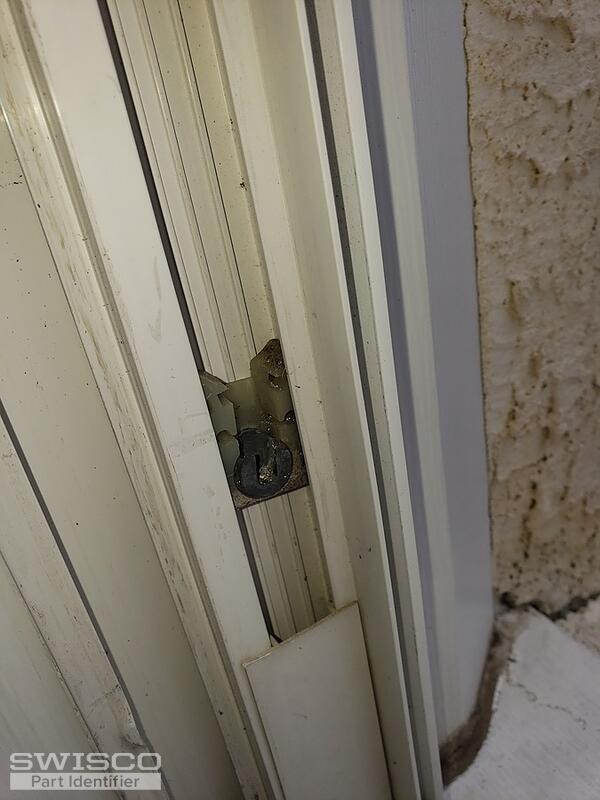

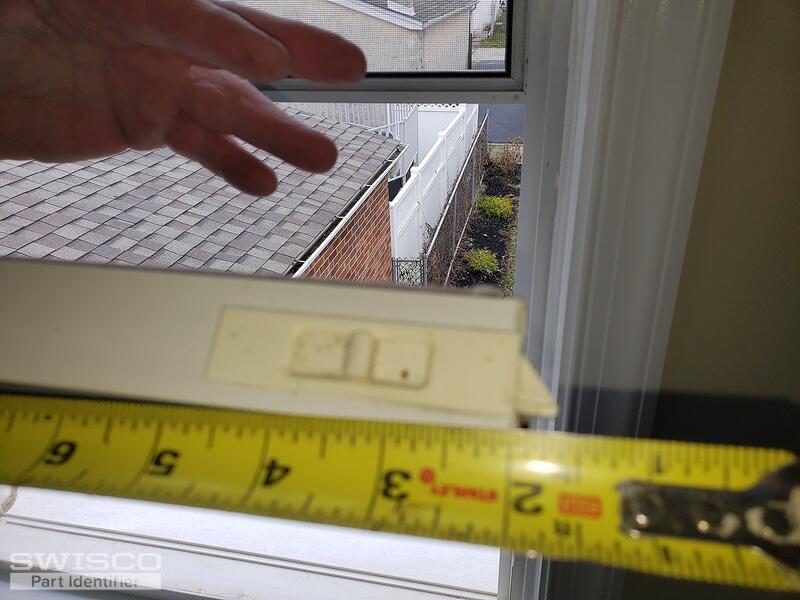

I am trying to find these parts in these pictures. The bottom of sash pin (3), top sash -tilt in locks (4), bottom sash (cam) locks. (10)

Tom · Accepted Answer

Hello! We should be able to help with each of these products.

Your pivot shoe is no longer made, but it can be replaced by the 15-177. This is compatible with the same style coil spring, which is the Series 152.

Your tilt latch is similar to our 26-243 and 26-244, but you should review our dimensions to verify.

Similarly, the 26-226 pivot bar is close to what you have now, but you need to check our dimensions just in case.
