ANLIN Window Balances

Home Owner from CA

Aug 4, 2018 9:19 pm

I have to replace both balances on a ANLIN window the model number on the sticker is H-R20-48X96. Would the part S140-7 work for me as well? Are these hard to replace? I have replaced some window pins before on other windows in my house.
Thanks for any help you can give me,
scott-

4 Replies

Tom from SWISCO

Aug 7, 2018 3:18 pm

Coil balance replacement is easy, and we can offer a video once we identify your part. However, that information doesn't identify your old hardware. Can you send a photo of the pivot shoe on the assembly you need to replace? If we see the old bottom shoe, we can identify the whole system.

Home Owner from CA

Sep 13, 2018 3:26 pm

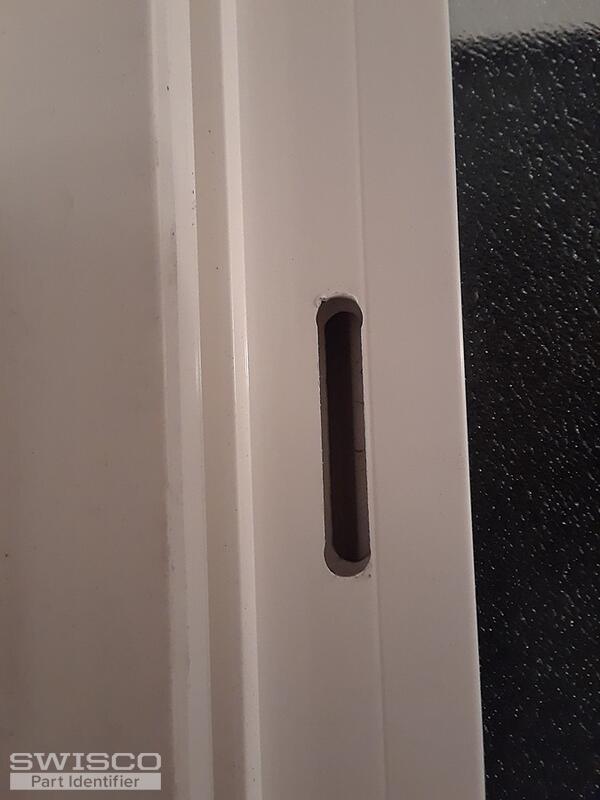

I also need the "night locks" not sure if thats what they are called. Photo 1 is the top part, and photo 2 is what my window tilts from. Product Code: 26-415 is what i have ordered in the past as a replacement pin. The window is 34 X 34. Is the balance hard to replace?

4 user uploaded images

Paul from SWISCO

Sep 20, 2018 9:34 am

Thank you for your patience during this busy season. Please compare the dimensions of our 26-122 vent latch to yours. If the 26-415 tilt bar fits your sash and pivot shoe, then we recommend that you continue using it.

We estimate your sash weight to be around 24 pounds, so you can use our S140-12. You should weigh your sash to be 100% sure. Looking at photo #1, removing and replacing the S140 balance will be easy since the company already made the cut out in the track. The video below should offer more clarity.
