Acan Vynil double Hung Windows

A quick learner from Penn Yan, NY says:
August 12, 2022

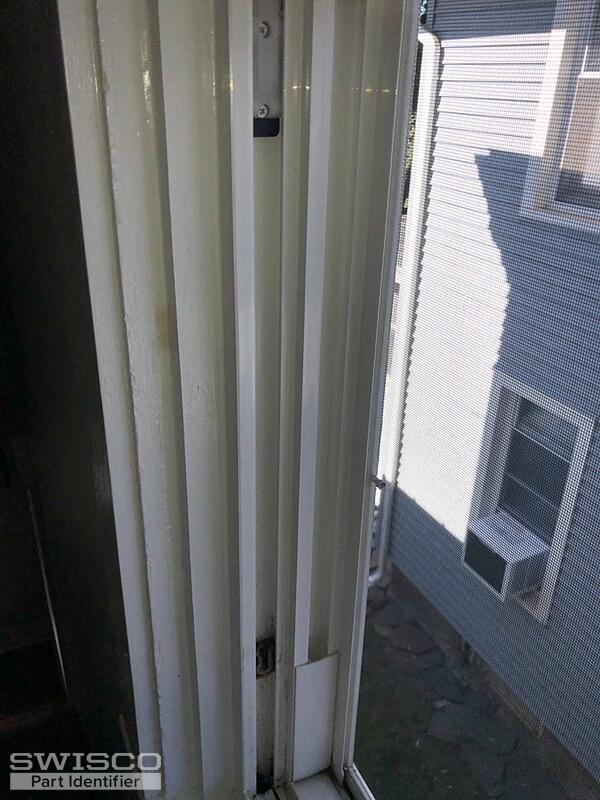

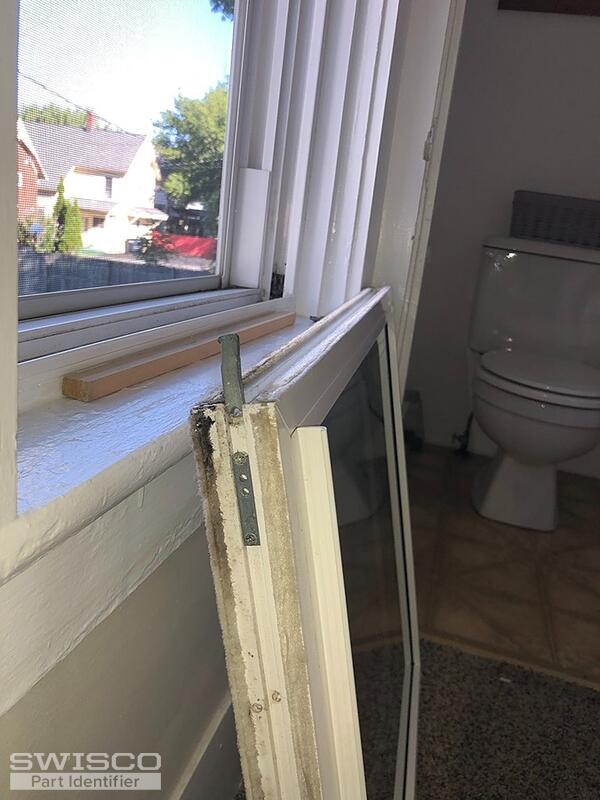

The balances on both sides are broken.The piece that attaches to the balance on both side of window sash is also broke.
This is the same on two windows in house.
Thumbnail of the uploaded file named 35E4DEB9-7A40-420C-83ED-693B94011FB3_1_105_c.jpeg
Thumbnail of the uploaded file named F9845EE2-063E-4830-9C2D-E25AE089A1BC_1_105_c.jpeg
Thumbnail of the uploaded file named FF322F7B-462E-4EE6-8486-B655078C06DF_1_105_c.jpeg
Profile picture of Emily
Emily from SWISCO responded:
August 15, 2022

Hi there!

Your pivot bar resembles our 26-241 but compare our dimensions with yours to confirm. I'm afraid I can't identify your pivot shoe from these pictures, however. Can you remove it from the window and show us?

A quick learner from Penn Yan, NY says:
September 22, 2022

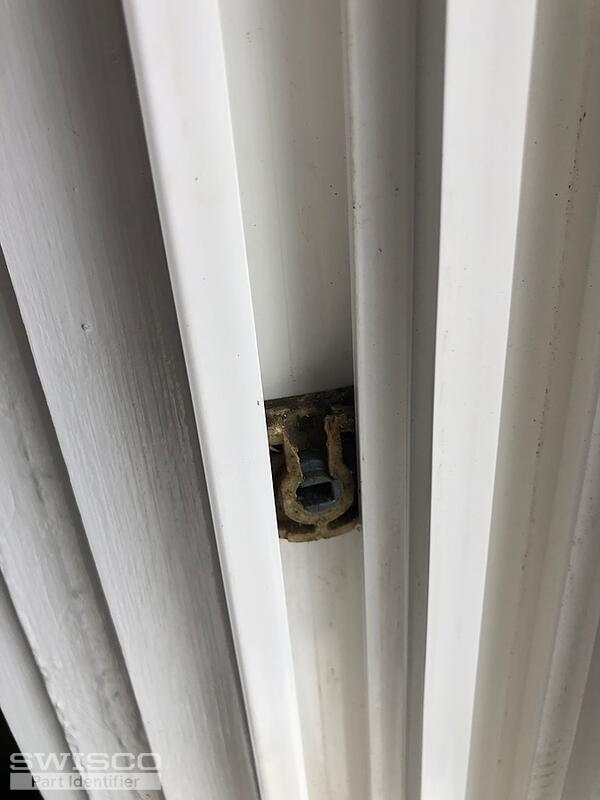

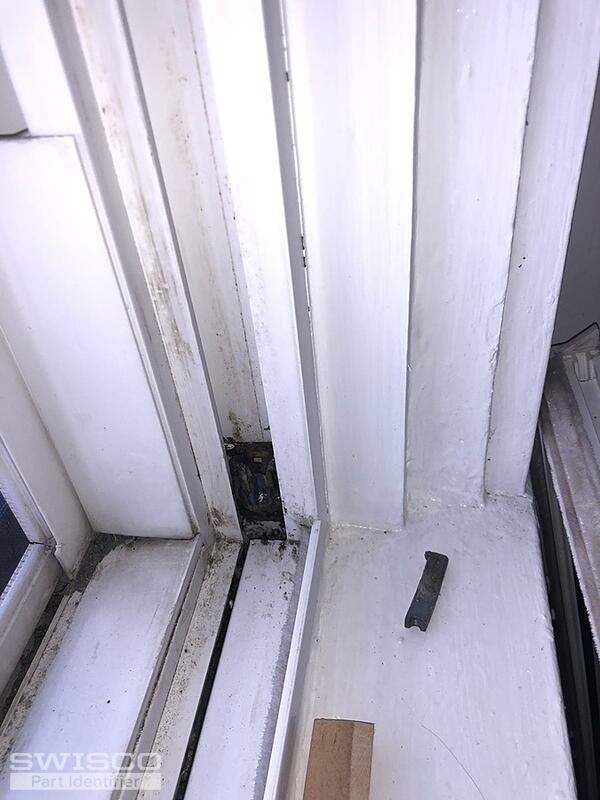

Coil balance assembly and pivot shoe.. Bumper

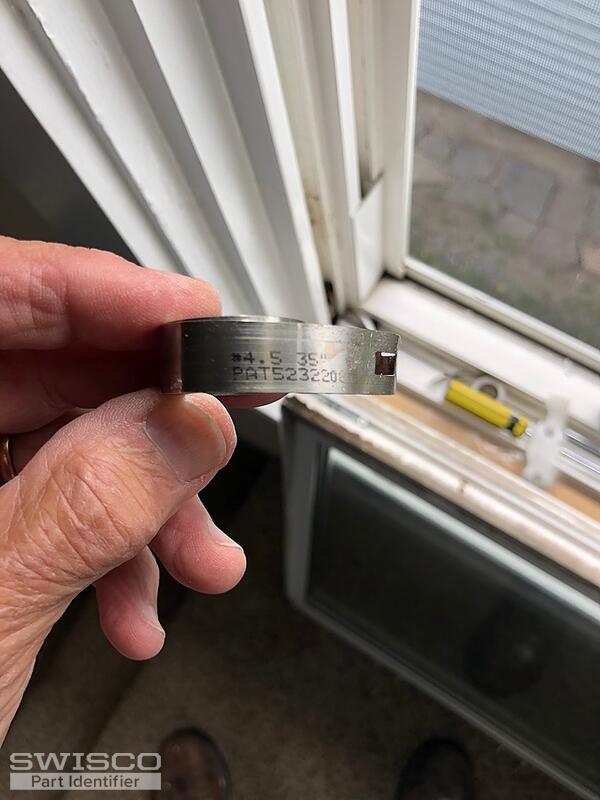

I was asked to get the number on the coil. If it is not legible in the photo the number is: #4.5 35" PAT5232208
Thumbnail of the uploaded file named IMG_6114.jpeg
Thumbnail of the uploaded file named IMG_6113.jpeg
Thumbnail of the uploaded file named IMG_6034.jpeg
Profile picture of Emily
Emily from SWISCO responded:
September 26, 2022

Thank you for the additional photos! I'm afraid I haven't come across this pivot shoe before so I'm going to forward this to one of our senior experts and get his thoughts. We will reach back out as soon as we have more information.

Thank you!

Profile picture of Paul
Paul from SWISCO responded:
September 28, 2022

Looking at your photos, I recommend you take a look at our 15-228 pivot shoe along with the S160-4 4.5 pound coil spring, 15-148 bumper and 15-150D double spring support. The 26-241 pivot bar also works with this system. Look over our dimensions and compare them with yours to see what you think.

Bumper
Bumper
15-148
$0.58
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
Pivot Bar, 3"
Pivot Bar, 3"
26-241
$1.38
4.5 lbs Series 160 Coil Balance
4.5 lbs Series 160 Coil Balance
S160-4
$4.50
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-228
$2.57
