Product Code: 15-150D

1/2" Coil Double Support

Name: 1/2" Coil Double Support
SKU: 15-150D
Price: 1.77 USD
Availability: InStock

$1.77

Quantity	Price
1-24	$1.77/ea
25-49	$1.65/ea
50-99	$1.35/ea
100-199	$1.19/ea
200+	$1.10/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

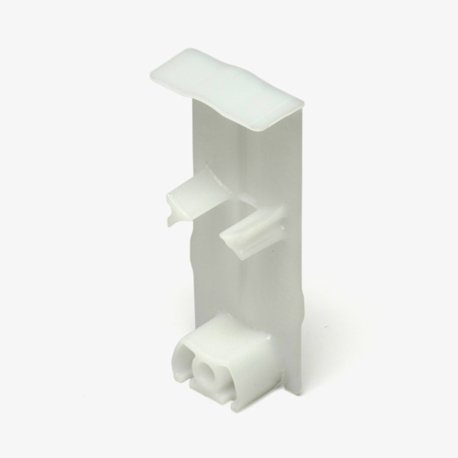

Double coil spring carrier support used in the Series 160 constant force balance window sash support system. This dual support has a closed top which will help prevent the build up dust and debris which could fall on the springs. Assemblies should be installed with a #8 pan-head screw (not included). NOTE: Do not over tighten the screws as this could result in damage to the profile walls.

Helpful Tip!

This part does not include new fasteners. Do not throw away your original screws, you will need them for the installation of your new part.

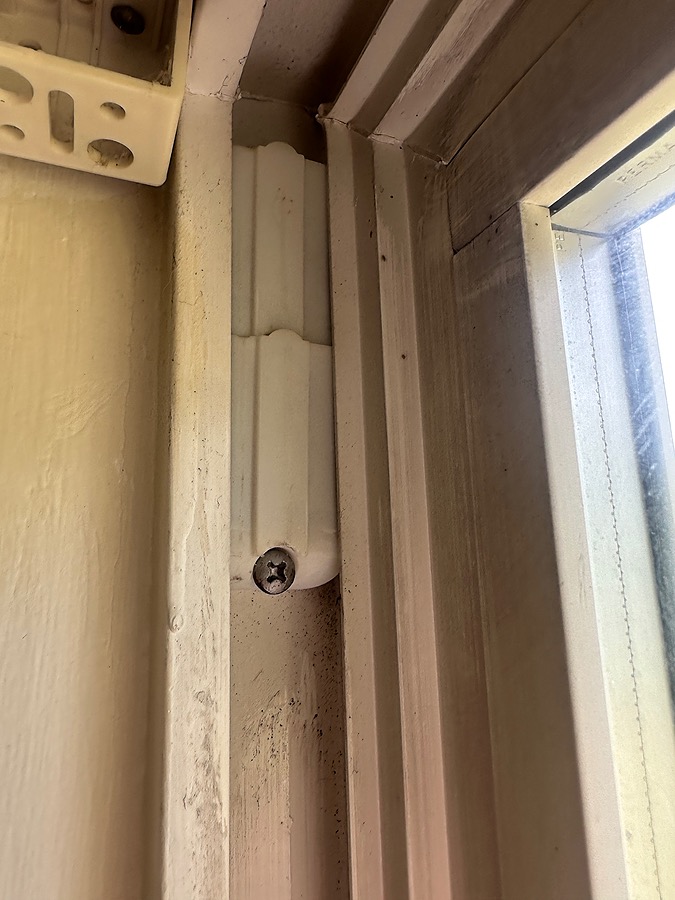

Simonton Window Replacement Parts

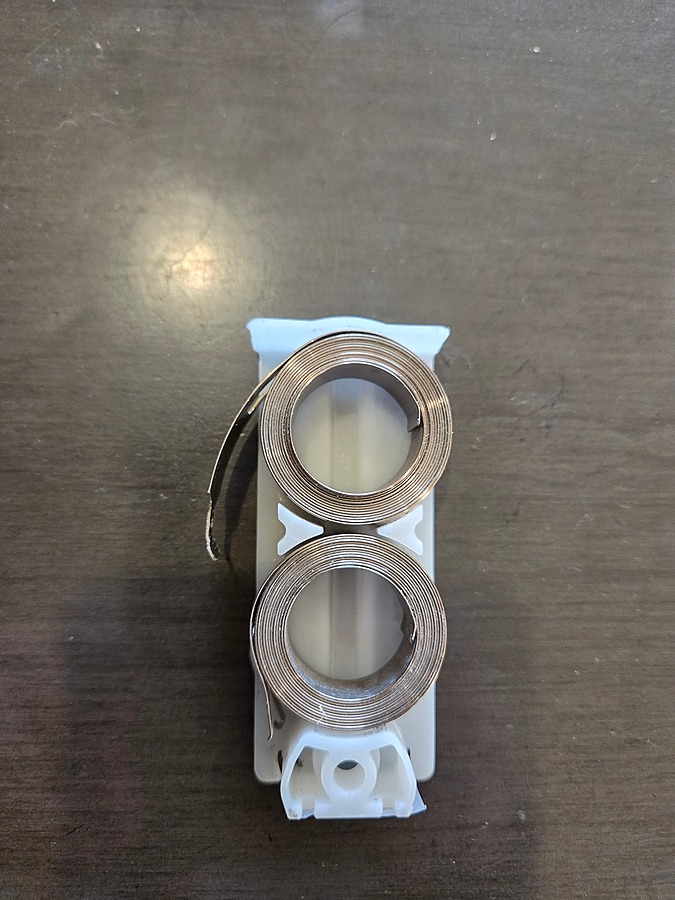

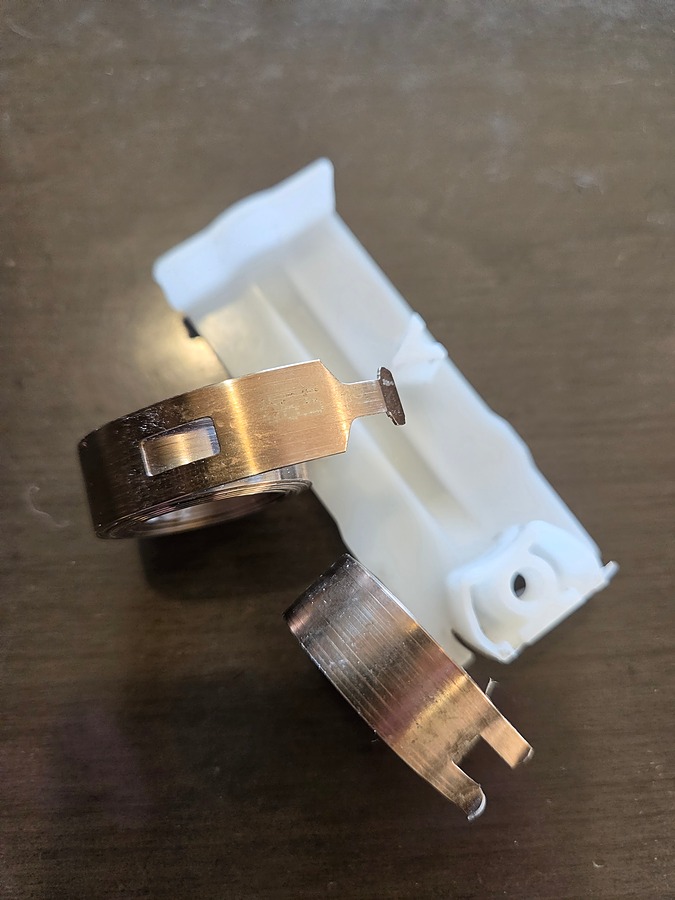

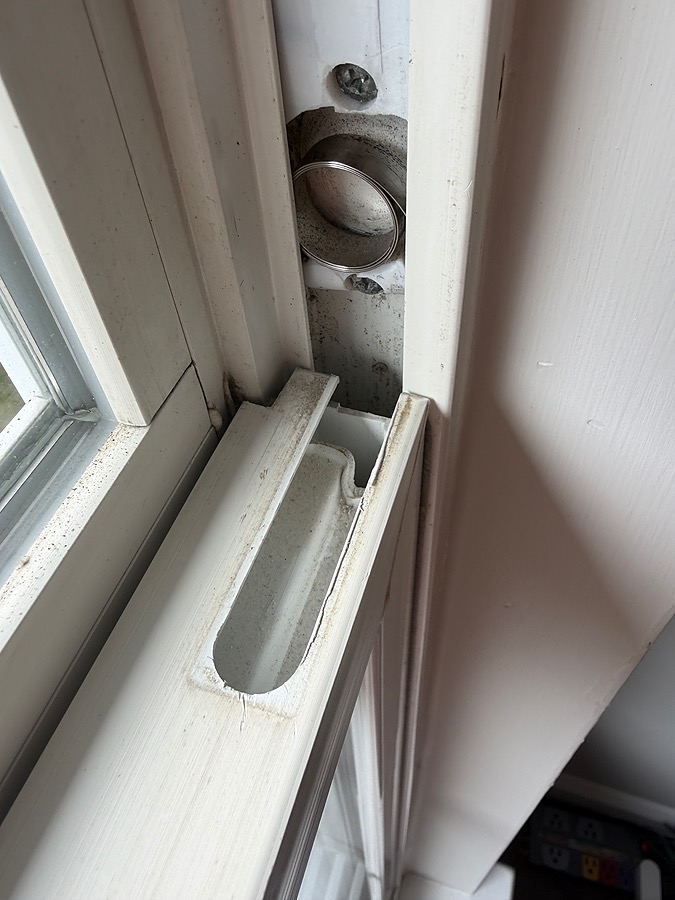

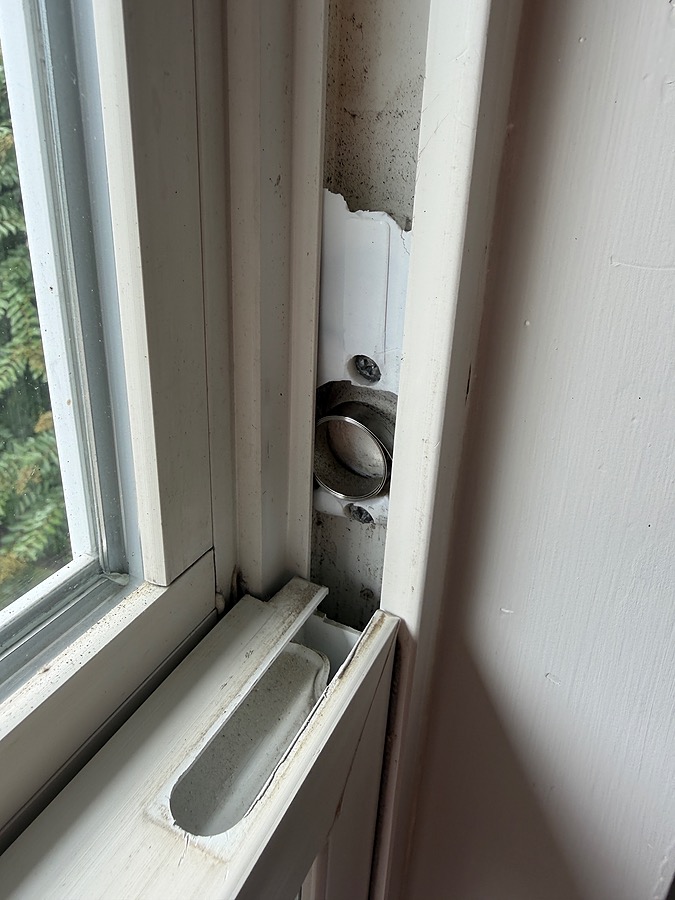

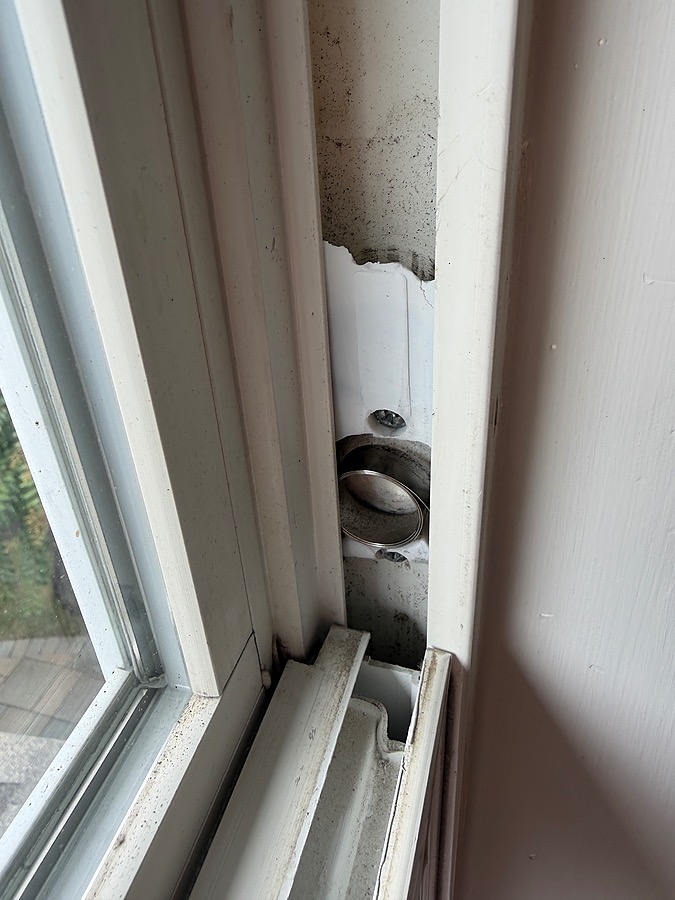

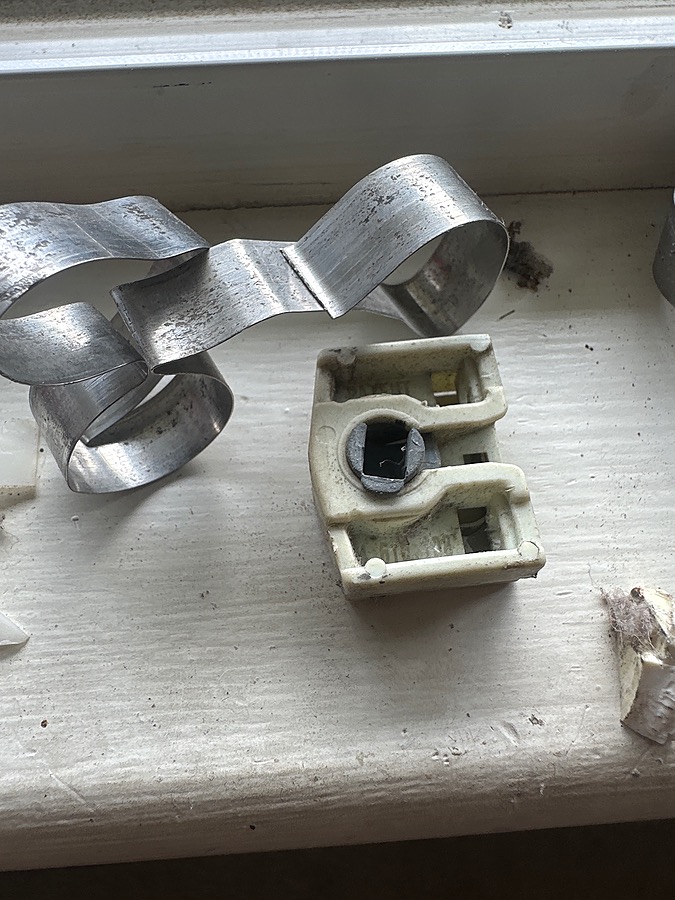

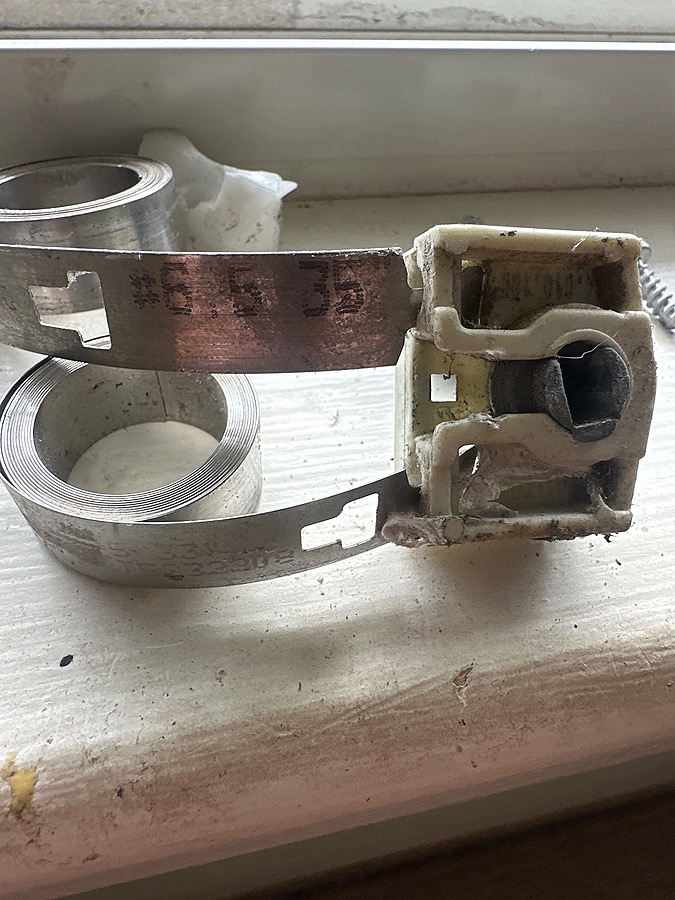

The only identifier, after removing the hardware, is #5.5 37 inchs PAT 5232208 on the coil. I need all the proper hardware to replace all coil balances on both sides of the window, the pivot shoes, and coil supports. not sure if this setup is considered single coil, double coil, or more. Note that ... (cont.)

+12

+11

Replacement parts

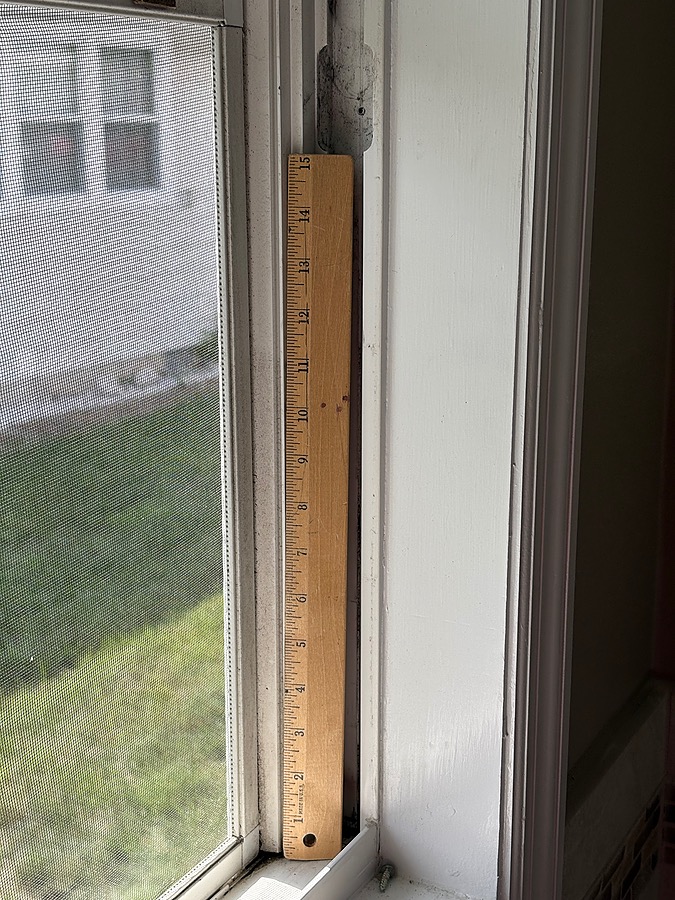

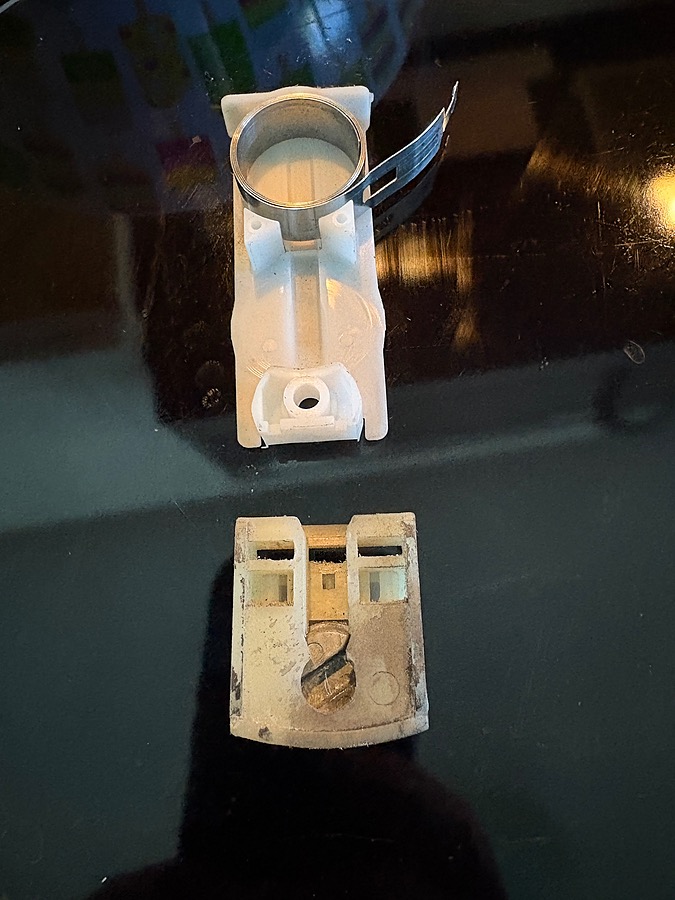

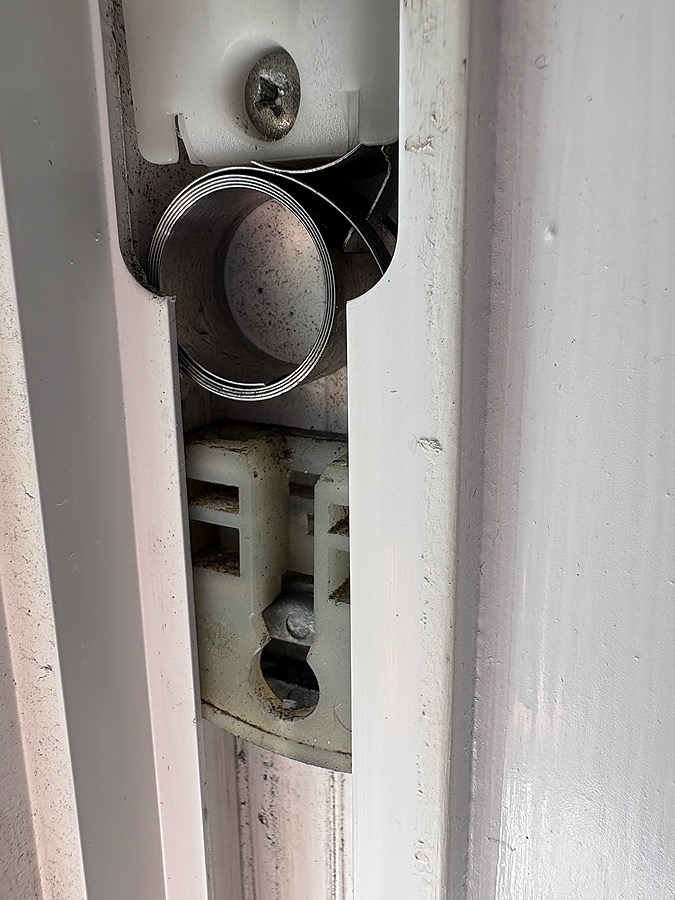

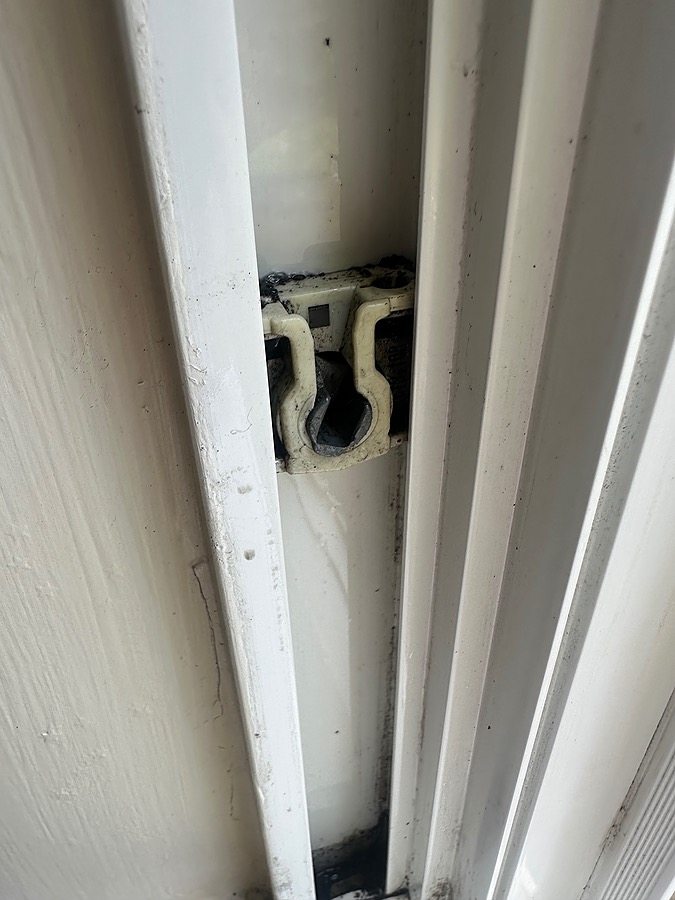

I'm looking for replacement parts for the above pictured windows. Anyone know where I can locate?

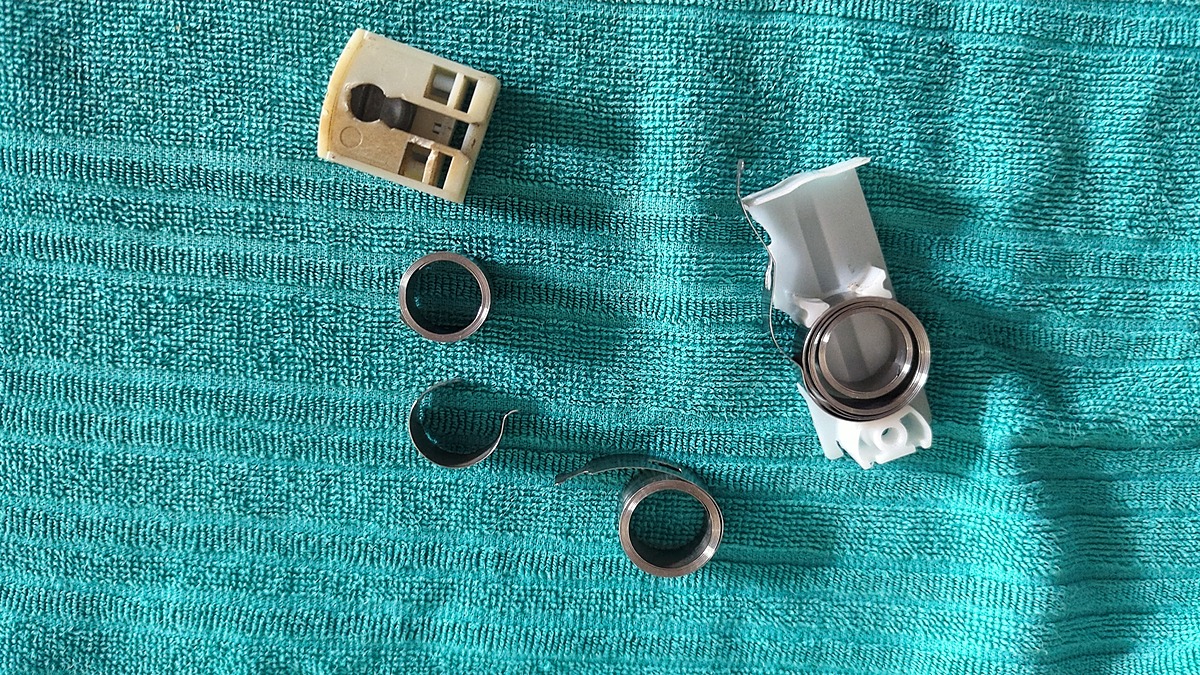

Replacement Coil Balance

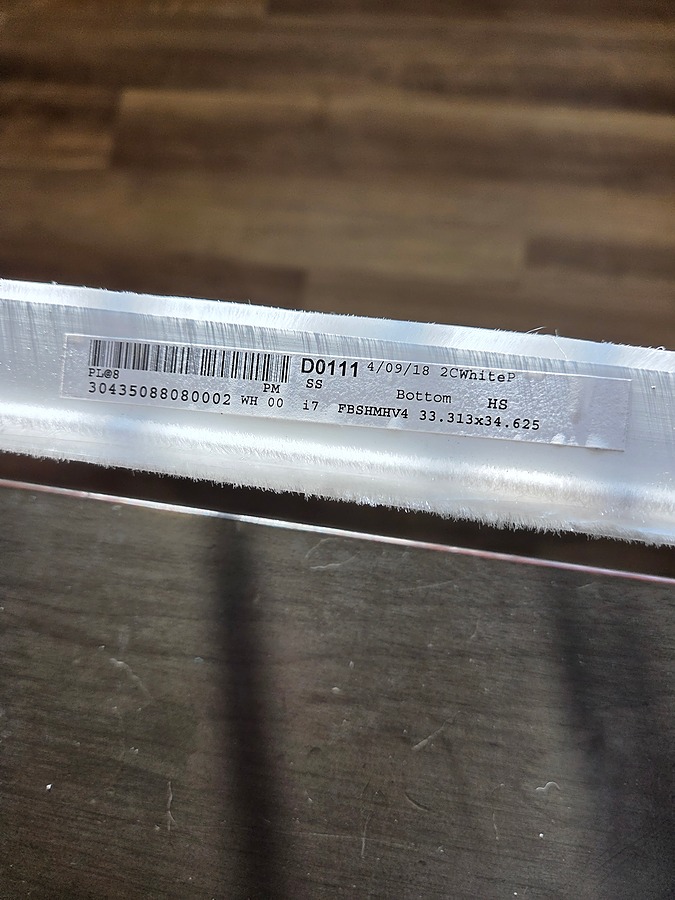

Can you tell me the coil balance part number for the window? The window weighs 21lbs. I have included a picture of the label on the inside of the window. They are in Part # 801020, Product Code: 15-150D1/2" Coil Double Support, ThanksJim

Window parts for "Alliance" window

I have been told by a window company that my windows are manufactured by Heartland but the only words on them are Alliance. I mostly need new balance covers although I have one window that all of the coils had to be pulled out because they got so messed up. I also need a few tilt window latches. ... (cont.)

Replacement coil balances for my window

Hi Which kind of coil balances do I need to fix my window that will not stay up? Do I need to replace both sides?
