Quick Learner from South Carolina

Apr 5, 2026 12:15 pm

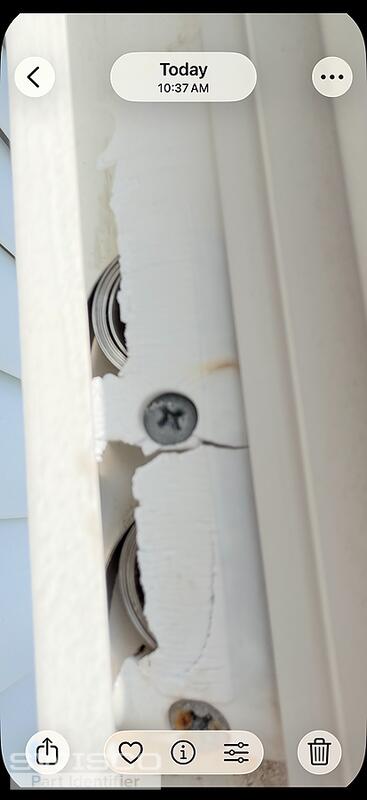

Coils have a #5.0 and 35 on them. The coil supports are 4 inches tall. I will need numbers for coils, coil supports, pivot shoes and pivots if bar.
thank you

5 user uploaded images

8 Replies

Emily from SWISCO

Apr 8, 2026 2:28 pm

Hi there!

We're happy to look into this, but we'll need more information. Can you show us photos of an undamaged version of the latch? We will also need to see undamaged versions of the pivot shoe and pivot bar removed from the window sash.

Quick Learner from South Carolina

Apr 8, 2026 3:34 pm

This is the best I could do the pivot covered is 23 years old and was baked by the sun

3 user uploaded images

Emily from SWISCO

Apr 9, 2026 11:07 am

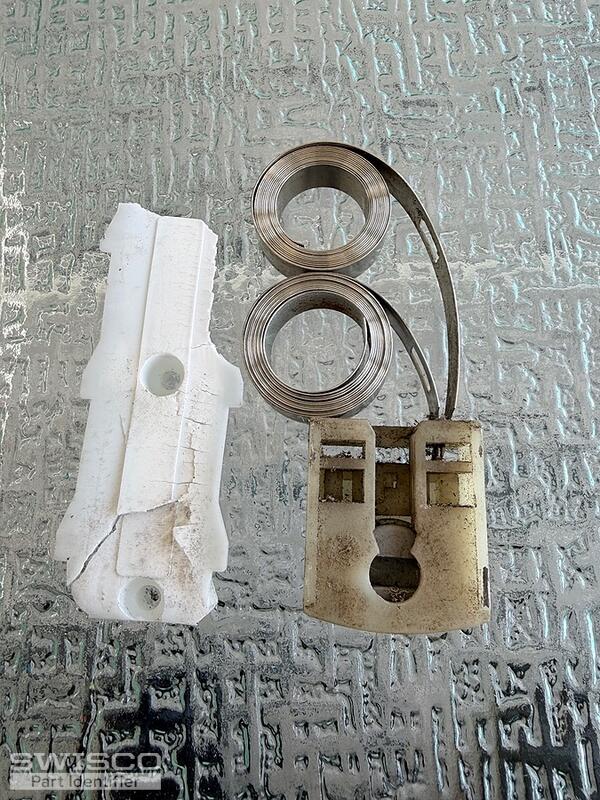

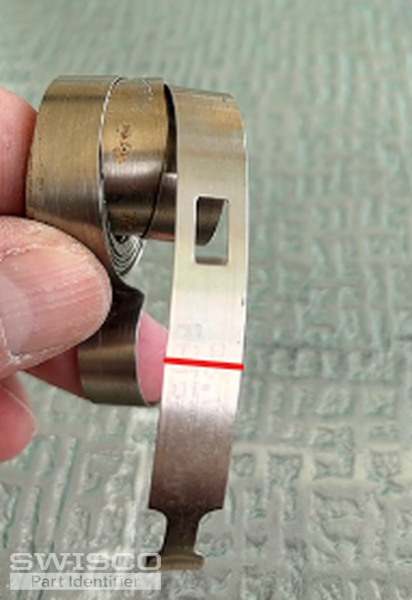

Thank you! These photos are just what we needed. Your pivot shoe is a match for the 15-199, which uses the 1/2" S160 and 3/8" S165 coil springs. Can you measure the old spring band width and tell us what you get?

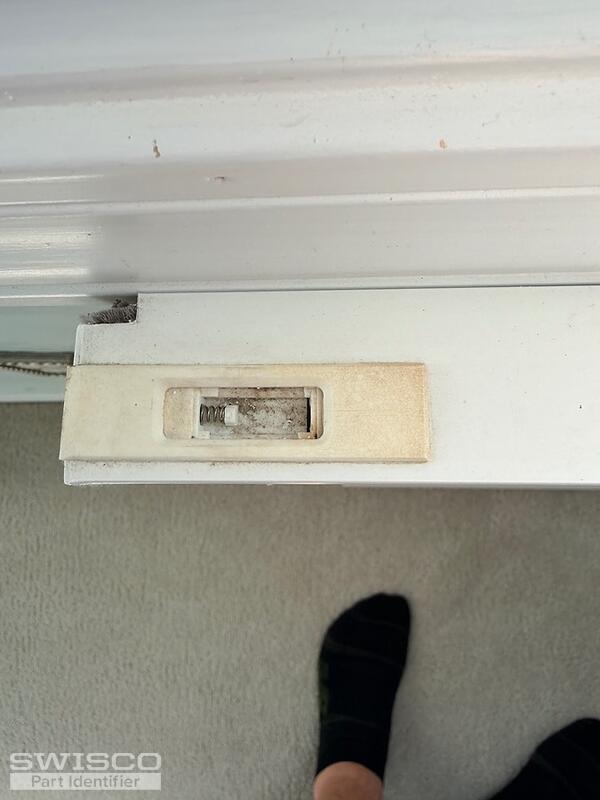

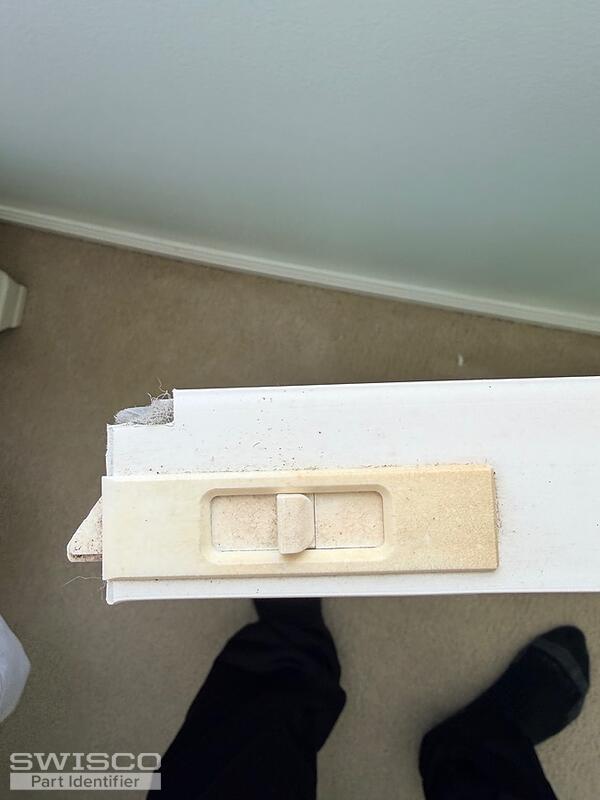

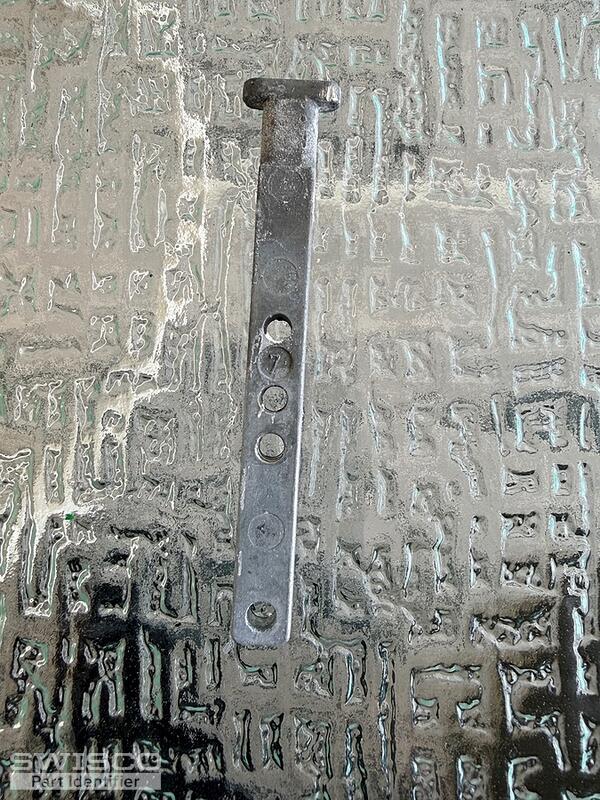

As for the latch, take a look at the 26-243A. The 26-244A is the opposite-handed version. The pivot bar resembles the 26-378. Review the specifications for these parts and see if they match what you need for this repair.
