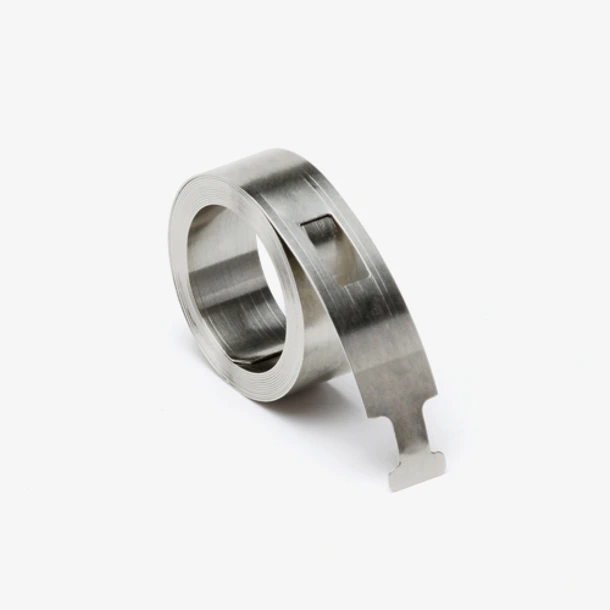

5 lb Series 165 Egress Coil Balance

Product Code: S165-5

Product Description
This is a Series 165 stainless steel spring for tilt windows. It moderates the operation of your window sash using a specifically calibrated coil spring that allows the window to stay open when raised and remain shut when closed.
  • Individually, this coil balance can hold 5 pounds. This is added together with the other coils to support the whole weight of the sash.

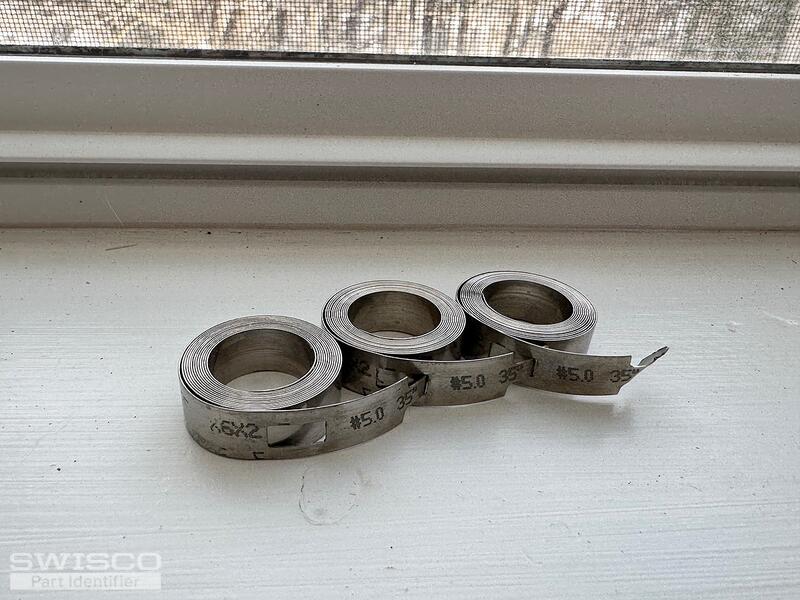

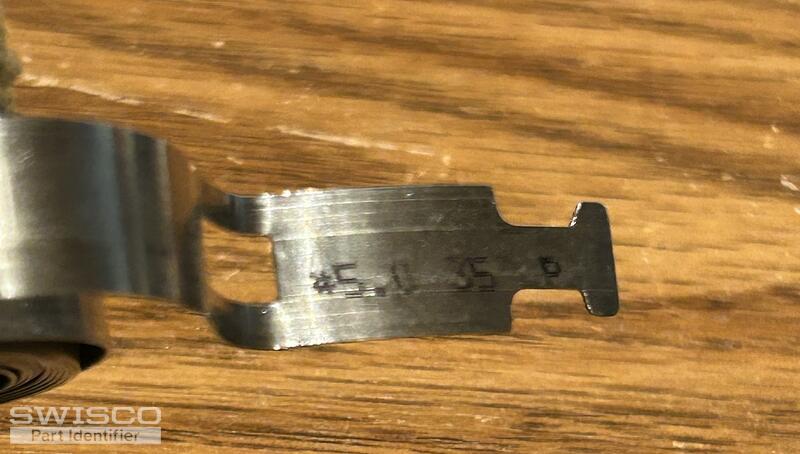

  • The weight you need should be indicated as a stamp or imprint on your old spring.

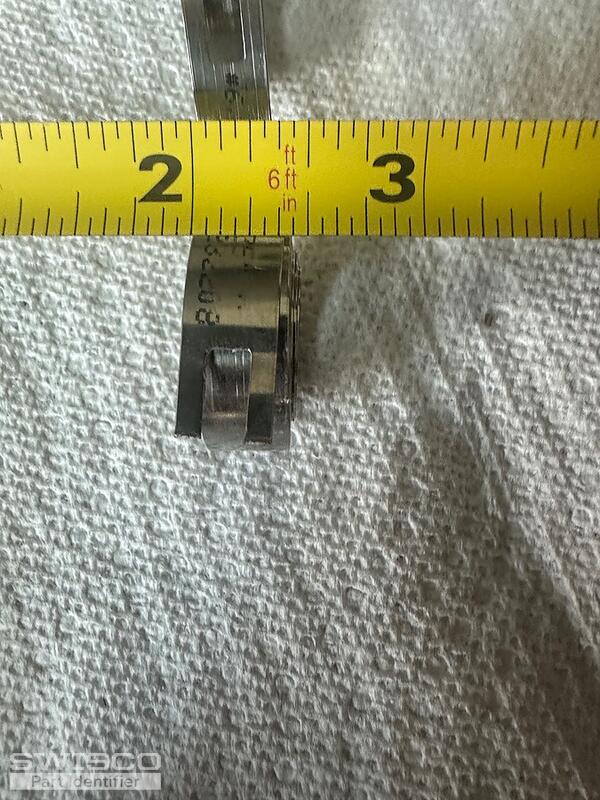

  • Measures 3/8" wide with a maximum travel of 35".
  • Designed to work with the 15-111 or 15-199 pivot shoe (sold separately). These shoes are not interchangeable.
  • This coil balance spring is sold individually, not in sets.
  • Can work for either the left or right side of the window interchangeably.
  • Coil balances are also known as constant force window balances.
Good Idea!
Balances are sold individually, however, it is a good idea to replace both window balances at the same time. Pairing a new balance with an old one would cause the new balance to wear out faster.
Customer Questions & Answers
Discussion # Of Replies Last Post Date

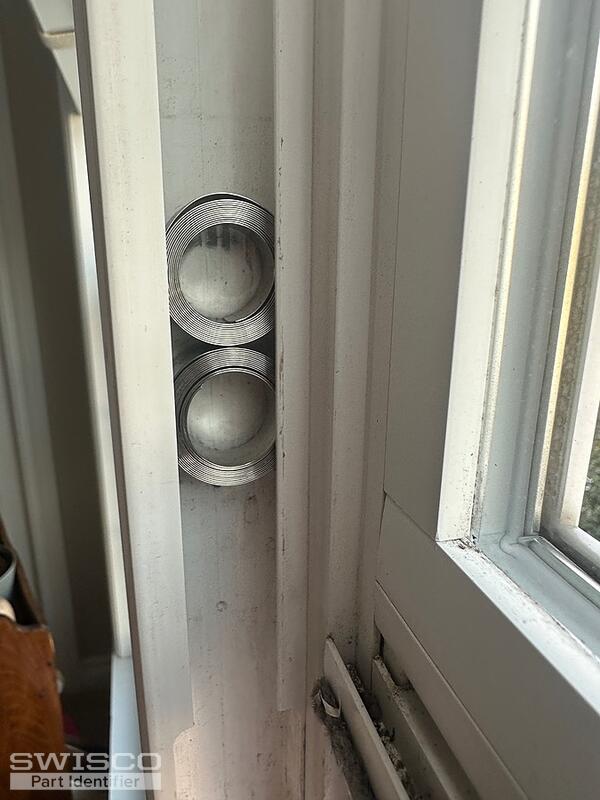

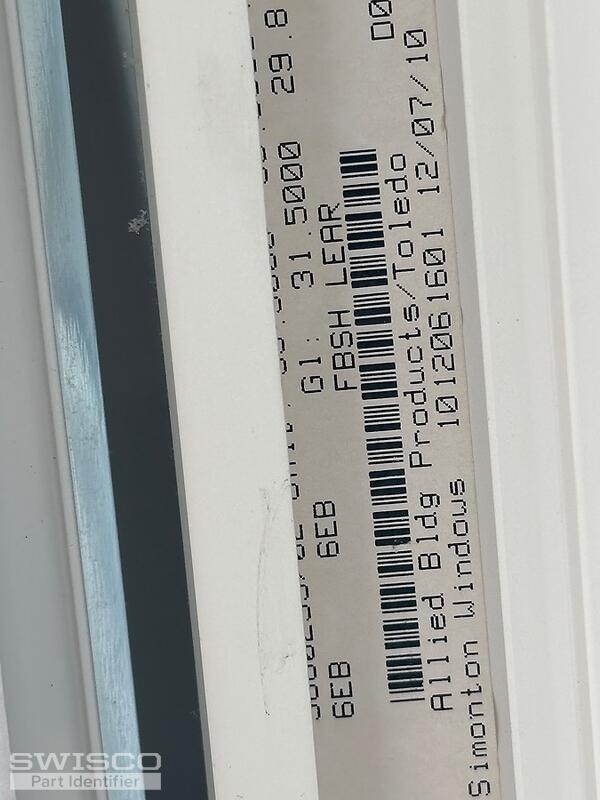

Simonton window balance This discussion includes image(s). 7 Dec 22, 2021
Vinyl window coil balance partsThis discussion includes image(s). 3 Sep 30, 2021
Cool balance holder brokenThis discussion includes image(s). 2 Jul 10, 2021
Coil Balance 2 Nov 17, 2020
Coil balance springs and shoesThis discussion includes image(s). 4 Nov 5, 2020
Still have not received a response This discussion includes image(s). 4 Aug 15, 2020
what window company is this balance This discussion includes image(s). 2 Aug 14, 2020
Need new coil balances for both sides of windowThis discussion includes image(s).This discussion includes video(s). 2 Jun 10, 2020
