Acme 17-4405

A contractor from Naples Fl says:

January 20, 2021

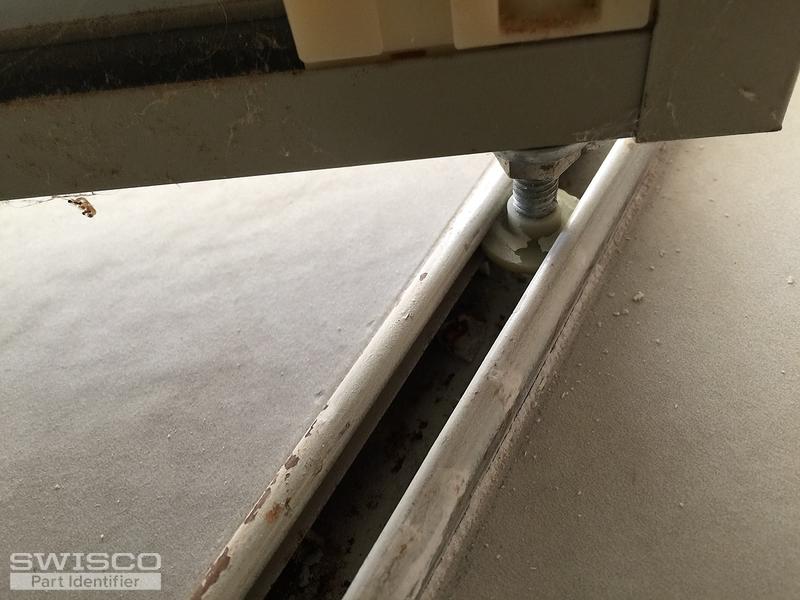

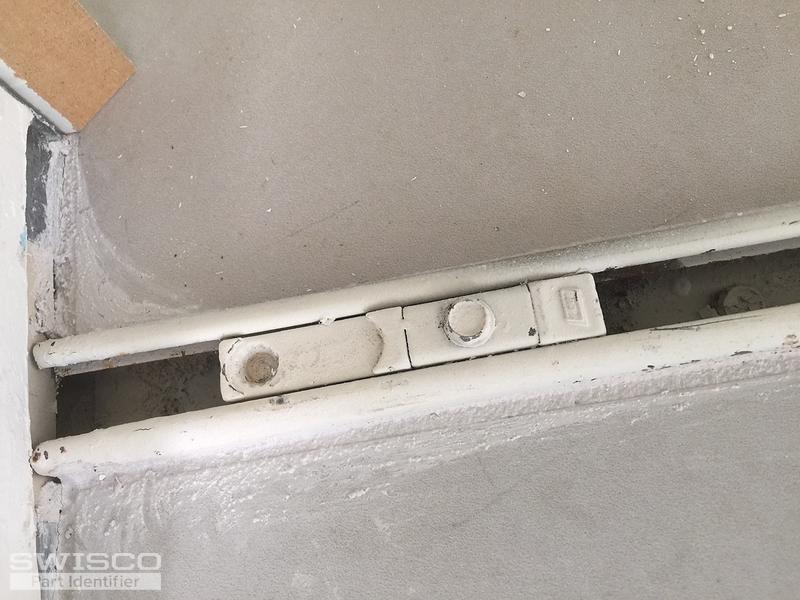

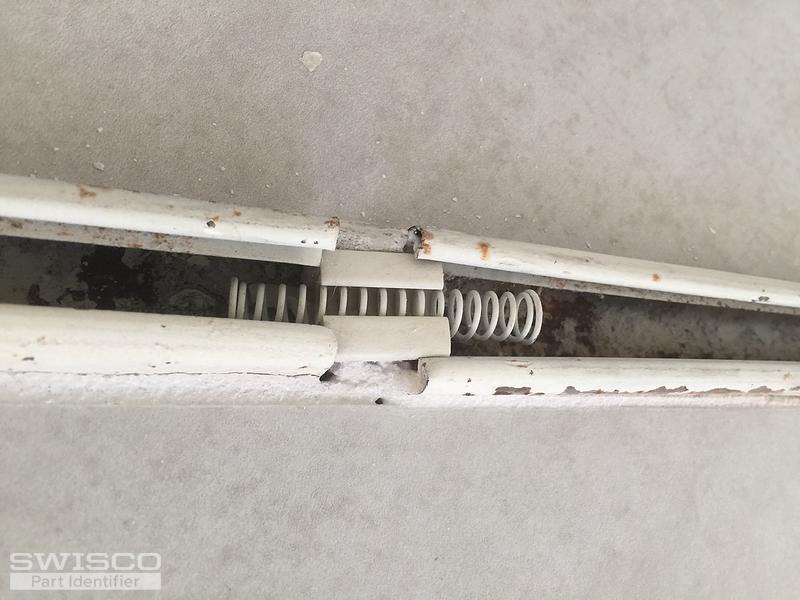

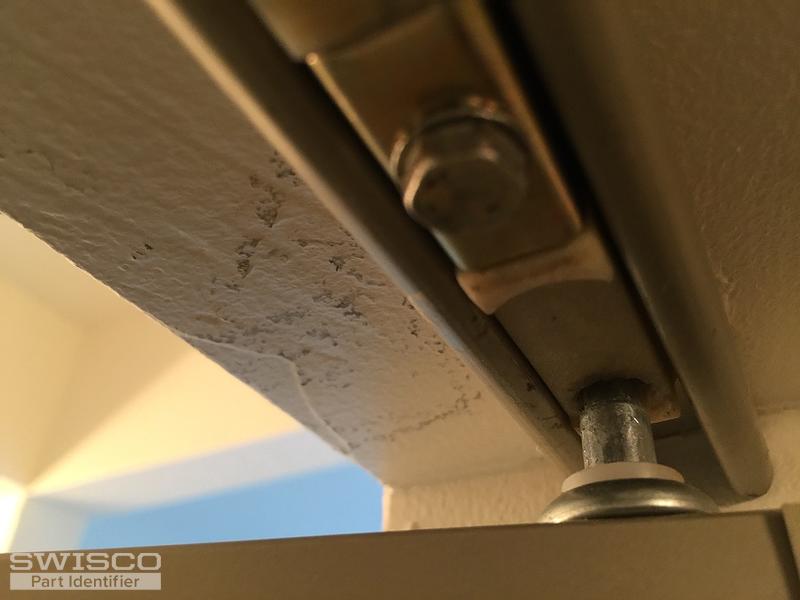

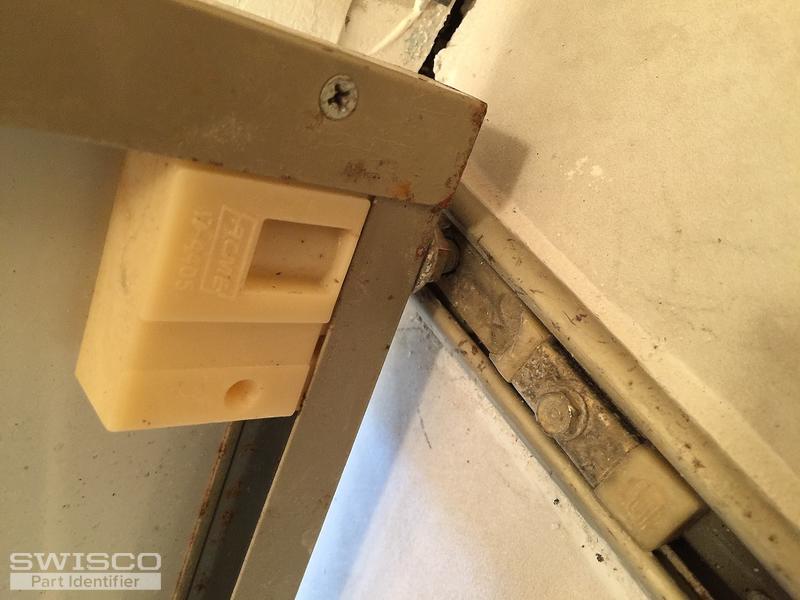

I understand that acme 17 -4405 has been discontinued. Here are photos of a 48" and 30" inch set of mirrored bifold doors to repair. I believe I could use
3 screw driver bottom 21-092
6 pivot blocks 23-181
3 bottom drivers with rollers

Am I missing any hardware that you might see from the pictures? The top track and rollers are all fine not sure if I need new corner blocks as well if this hardware adapts to it I should be just fine. Thank you for your time.

Thumbnail of the uploaded file named 8416B537-F501-48C9-AFC7-4F4D6E2220FA.jpeg

Thumbnail of the uploaded file named 443DF810-482B-4026-BA19-F7CB75F2841D.jpeg

Thumbnail of the uploaded file named 31E7E900-6860-4D8A-813A-407B1CECDC2F.jpeg

Thumbnail of the uploaded file named 0998D1E7-1DF1-4B69-AB74-EA68BCCDBA3B.jpeg

Thumbnail of the uploaded file named FAF3A80F-F5D1-444C-9958-87332D5F06CD.jpeg

Paul from SWISCO responded:

January 25, 2021

To use the bottom the 21-092 adjusting pin, you will need the 23-407 bottom corner block. If you want to reuse your Acme corner block, then go with the 23-113 adjusting pin. The roller guide would be the 21-174 and the spring loaded pin that goes with that is the 23-115.

Screw Driver Bottom Pivot

Spring Loaded Top Pivot

23-115

$1.77

Bi-fold Bottom Door Pivot
