Acorn Sliding Glass Door Rollers

Quick Learner from thomasville, Ga.

Jul 30, 2015 10:37 am

I need rollers for my SGD.
Mfr. Acorn (No ID found but all windows in house are Acorn)
Yr. 1985
Please advise which are appropriate.
THanks,
Tim

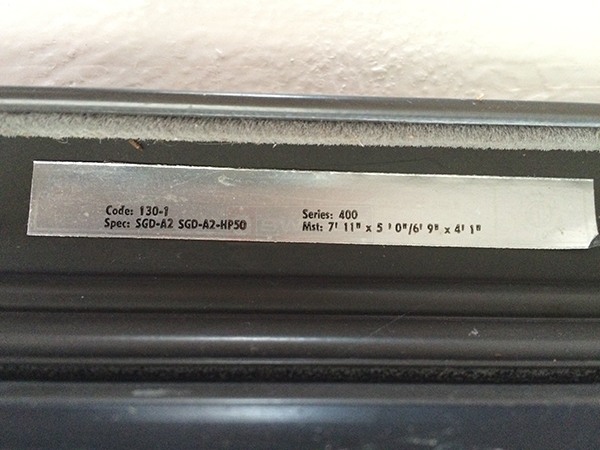

User submitted a photo of patio door hardware.

6 Replies

Tom from SWISCO

Jul 30, 2015 2:34 pm

Unfortunately, we cannot identify what rollers you need based on this information. We would need to see pictures of them removed from the door, along with dimensions.

Home Owner from Thomasville, Ga

Aug 3, 2015 3:18 pm

See attached images.Is 81005 correct? Your literature indicates this is the replacement for my Acorn Series 400 door.

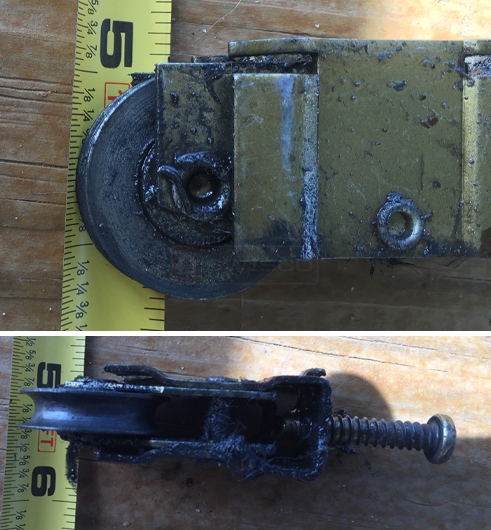

User submitted photo of their door roller.

Paul from SWISCO

Aug 5, 2015 11:33 am

No, I don't believe the 81-005 is the right match. Not all Acorn doors use the same hardware, which is why it's important that you match up your hardware to our pictures and dimensions. The 81-005 is very different than the picture you show. I think you may want something more like our 81-033.

Quick Learner from Raleigh NC

Jul 19, 2020 5:33 pm

My Label looks identical to this one. I have not yet lifted the door out. Did 81-003 end up being the correct part? And I would love a video link for this particular part replacement. Thanks.

Tom from SWISCO

Jul 21, 2020 2:51 pm

The label shown above doesn't have any information regarding the roller itself. You may have the suggested part, but in all likelihood you have something entirely different. You need to remove the original from the door to know for sure. There is no getting around it, unfortunately. That's the only way forward.

You may find the video below to be of some help.
