Alenco replacement window balance

Start a new Discussion

Home Owner from Rio Rancho, NM

Jul 11, 2024 5:08 pm

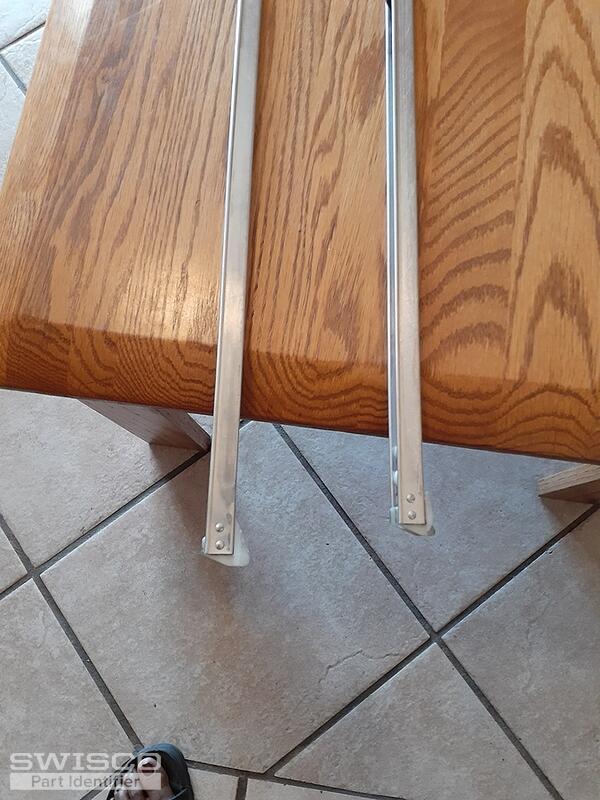

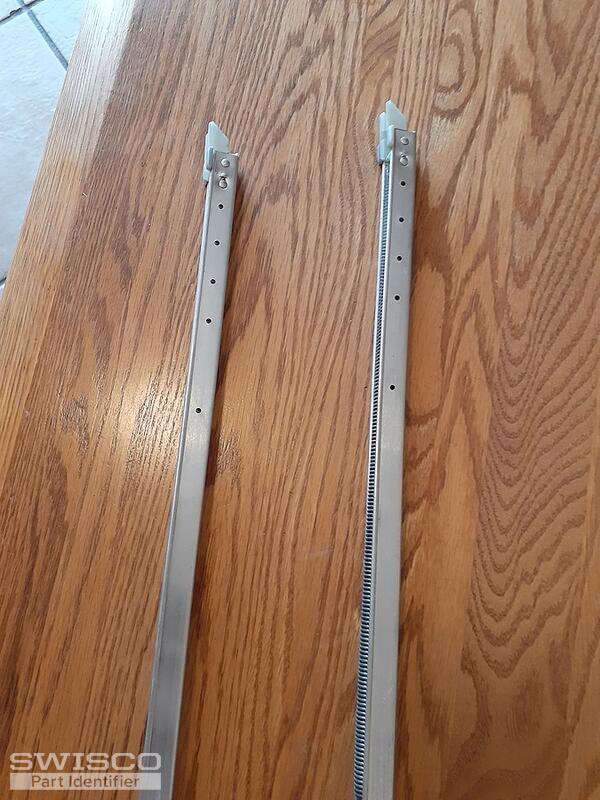

28 inches long, 1/2 inch wide, 5/8 inches high

5 user uploaded images

4 Replies

Lauren from SWISCO

Jul 12, 2024 10:51 am

Hello, thank you for posting,

Your balance assembly resembles the Series 395 channel balance. When measuring the length, make sure to measure the metal channel only excluding the nylon attachments.

The metal channel should be stamped with a number that indicates the strength of the spring needed. If there is no markings, you will need to weigh the window sash and compare to the strength chart on the product page to choose the correct stamp option.

Please review and let us know if you have any additional questions!

Home Owner from Rio Rancho, NM

Aug 31, 2024 2:40 pm

Thank you! You correctly identified my channel balances. My son installed them and now I have a working window.

Lauren from SWISCO

Sep 3, 2024 7:38 am

Great to hear! We are happy that we could assist with your repair and let us know if you have any future hardware questions.
