Alliance Window

Question

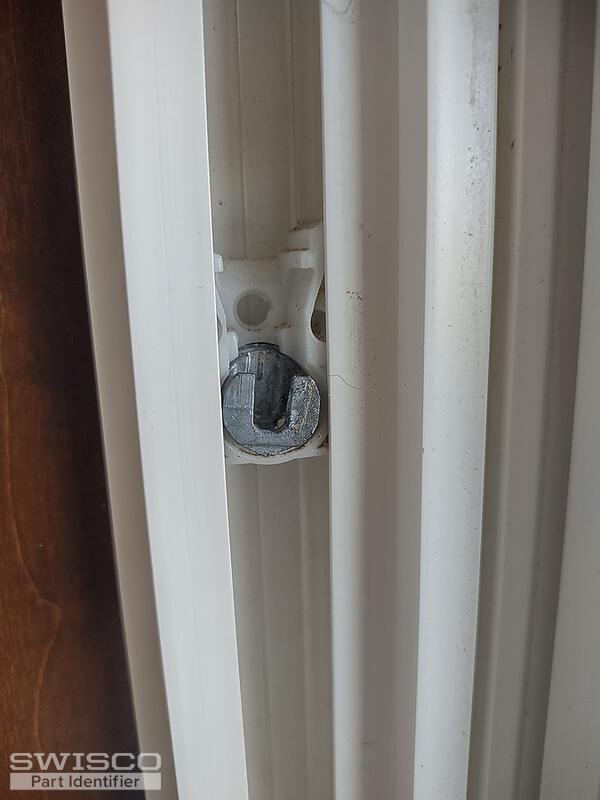

I have an Allianced window, picture included of the window identifier, not sure if one of those is a model#, but it is Alliance.  I have included a picture of the pivot bar, since I might as well get some of these for future replacements.  The real issue is the side window mechanism, picture of good and bad.  The bad is completely rotted out.  One I need to purchase, but also how do you replace that?

Jasmine · Accepted Answer

Thanks for reaching out to us! The cam in the pivot shoe has become damaged. This isn't something sold separately, so you'll need to replace the entire shoe.

I believe you'll need the 15-177 Coil Balance Shoe to replace the one here but you'll need to remove it and compare the dimensions below.

Alternate image for 15-177

The compatible coil is the Series 152 Coil Balance, which is attached to the shoe using the 33-072 screw. Take a look at the video tutorial, tagged below, for detailed instructions on selecting the correct coils spring.

The 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and 15-144 Coil Support Barrel can be used to replace the covers.

Your pivot bar reminds me of the 26-316 Interlocking Pivot Bar. Carefully compare it to your existing hardware to confirm.

Alternate image for 26-316
