Hello,

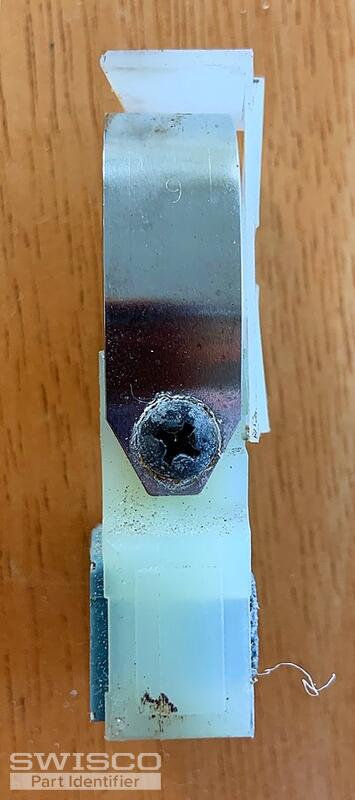

Thanks for posting! From what I can see in your photos, your pivot shoe appears to be similar to an older, discontinued shoe. Your exact pivot shoe has been discontinued and is no longer available but the good news is that we do have a replacement that will work just as well.

Start with reviewing and comparing our 15-177 Coil Balance Shoe to your existing hardware. You will need to remove your shoe from the window to accurately compare the dimensions.

Alternate image for 15-177

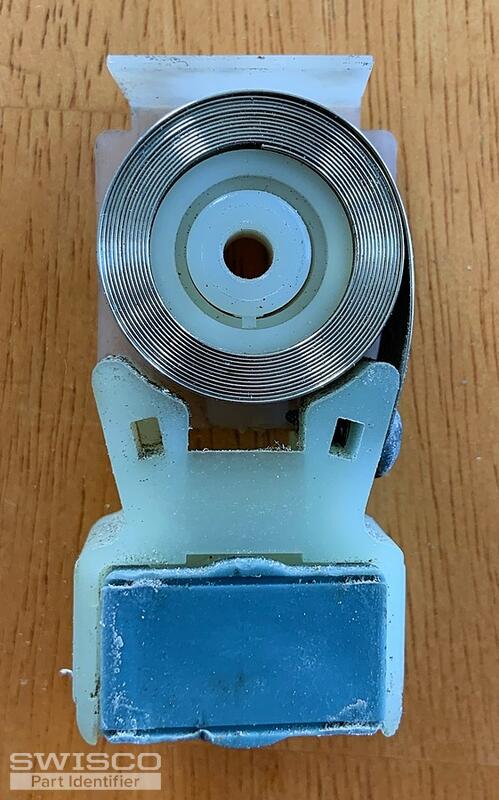

This shoe is compatible with the 1/2" thick Series 152 Coil Balance, which is secured to the shoe using the 33-072 screw. To determine the correct spring strength for a particular sash, you'll need to look for any stamps/markings on the metal coil(s) in the window.

If there are no stamps/markings or they are hard to read, you'll need to obtain the exact weight of your sash. Once you have the sash weight, you'll divide it by the number of coils in the window.

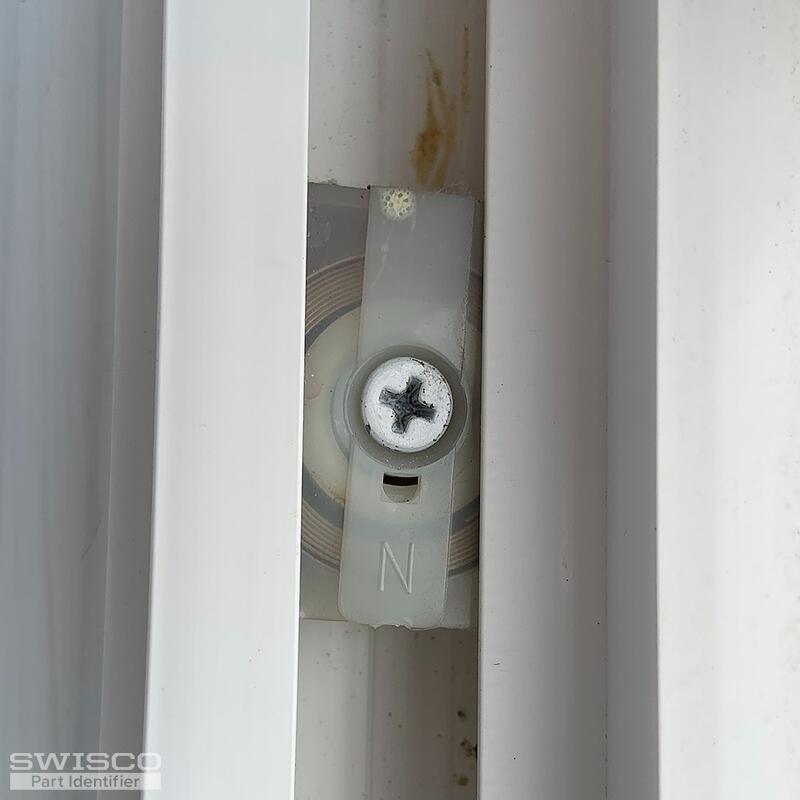

To replace the balance support cover, you'll need the 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and the 15-145 Coil Support Barrel.

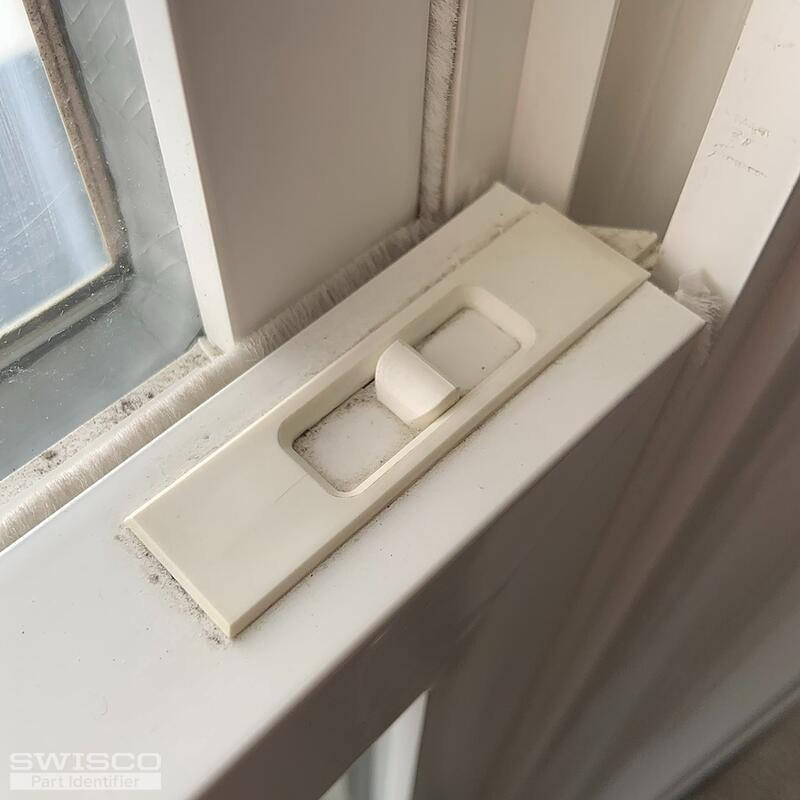

In regard to the tilt latches, I do agree that the 26-243 and 26-244 appear to be a good replacement match for them. However, you'll need to be sure to double check the dimensions to confirm.

Alternate view of 26-244

Profile view of 26-244

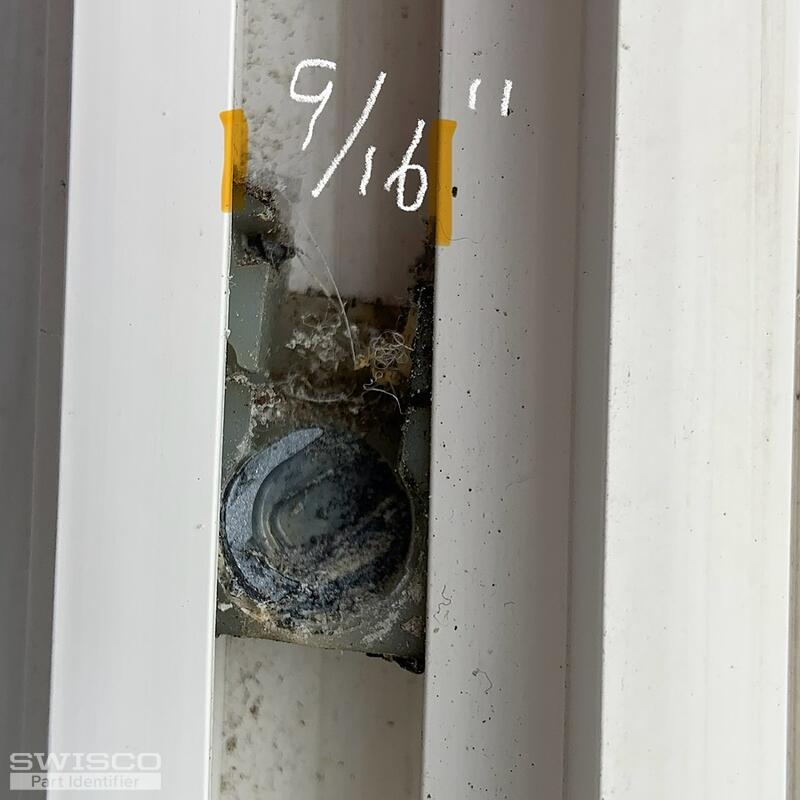

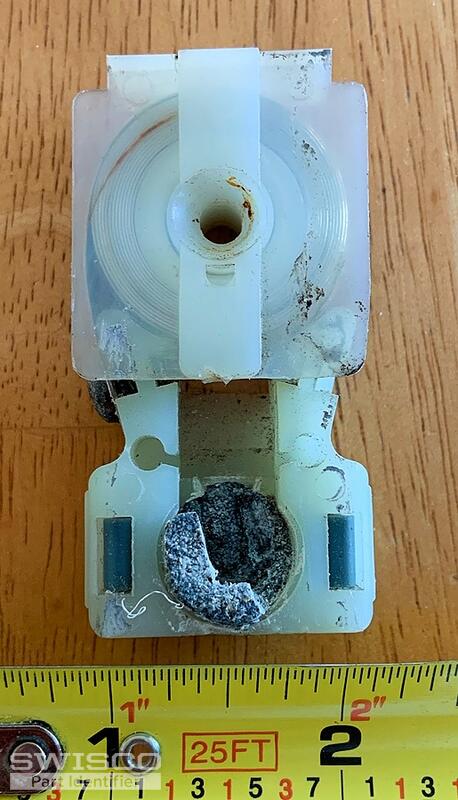

Would you be able to provide the written dimension for the width of your shoe? Unfortunately, I would not be able to read the measurement from the photos of the measuring tape. We've recommended the 15-177 as a replacement for this shoe to many other customers and have received confirmation that it works just fine as a replacement. I'm sure this should work for you.

In regard to the coil balances, if it weighs about 11lbs, chances are you are rounding up or down. If you are rounding up, I would suggest the 5lb coils; if rounding down, I suggest the 6lb coils.

I hope this helps!
