Alliance window sash replacement parts
Thanks for writing in! There is a good chance we can supply you with the coil balance springs you need for these repairs but I'll need to see photo of the compatible pivot shoe to confirm the right replacement.
You'll also need to remove the spring from the window to look for any stamps/markings that might indicate the spring strength needed to support the sash. If there are none, I'll need to know the exact weight of the sash, down to the ounce.

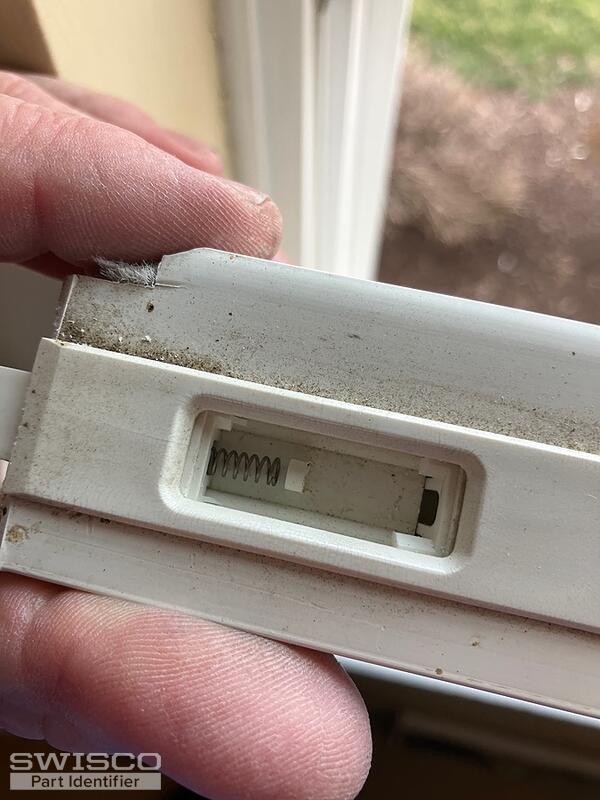

The tilt window latch you have pictured here could possibly be replaced with our 26-243 and 26-244 Tilt Window Latches. To confirm that these are the right fit for the sash, carefully review and compare the dimensions below. If they are not a match, I am happy to look for a more accurate replacement, I'll just need to know the dimensions of an undamaged latch, written out.
Sure! Take a look at the video tutorial tagged below this thread, we give a detailed explanation and demonstration on how to complete the repairs. I've also included videos for how to remove the coil balance assemblies.
Enjoy your spring break with your family!

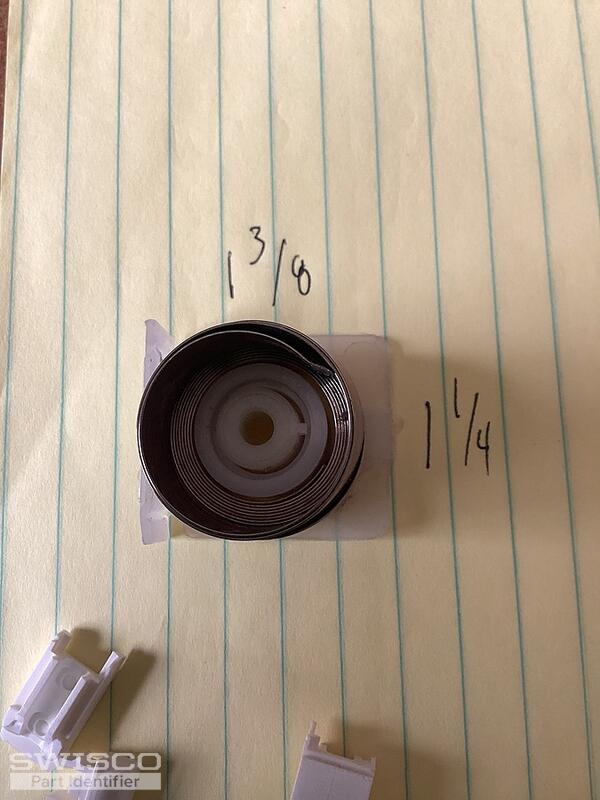

The coil system has no numbers on it. I took more pictures. I'll have to weigh the sash but wasn't prepared to do that.

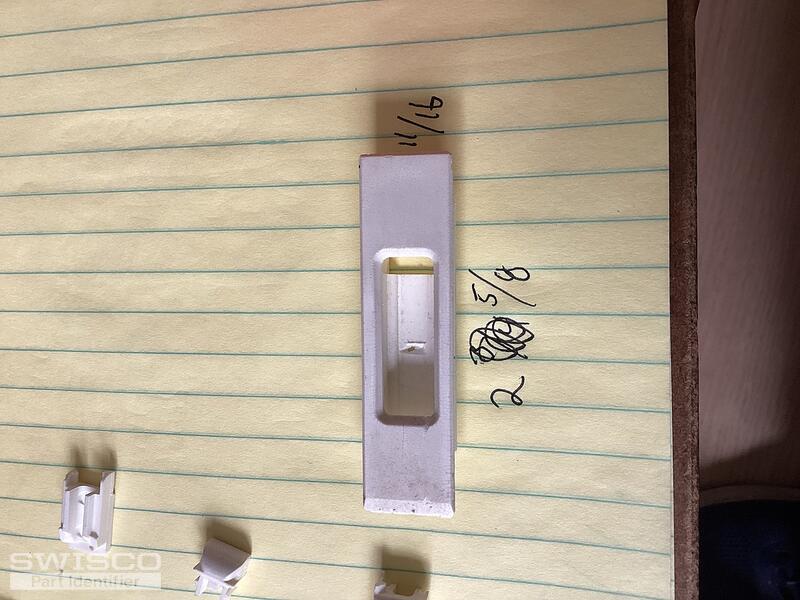

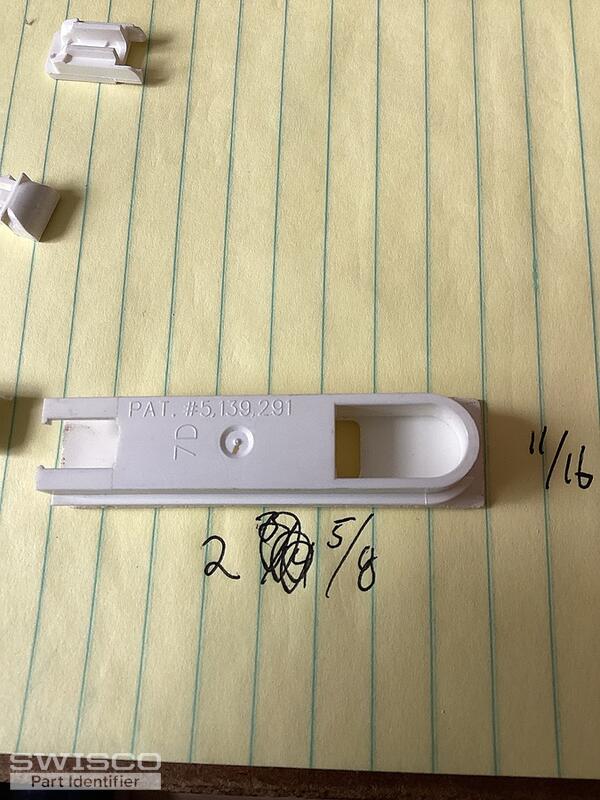

Thanks for the photos. Based on the dimensions you've confirmed, I do believe the 26-243 and 26-244 would be the right replacement but, ultimately, you'll need to confirm the dimensions to determine if it would be the right fit for the sash. There are a few different tilt latches that come up in our database.

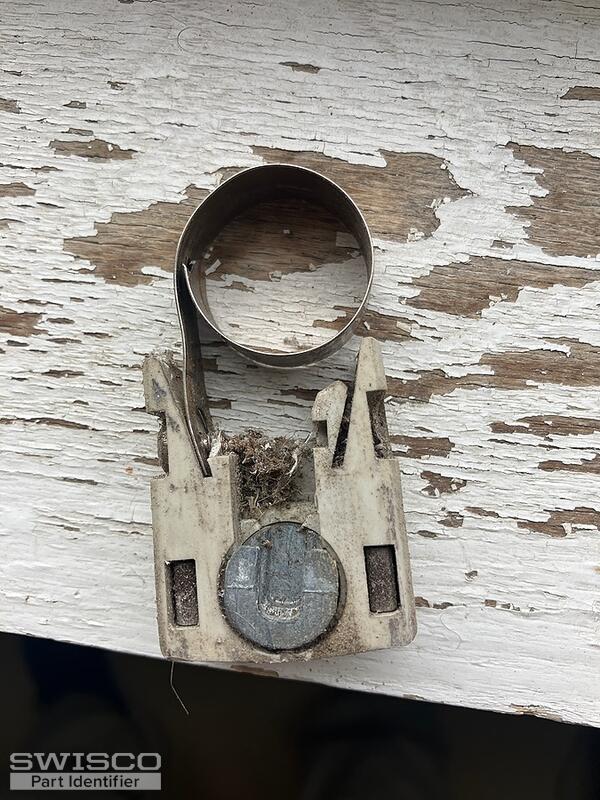

The you have pictured here resembles our 15-177 Coil Balance Shoe. This shoe is compatible with the Series 152 Coil Balance. Once you've obtained the sash weight, you'll need to divide that number by the total number of coils in the window; this will give your the spring strength need for the assemblies to support the weight of the sash. For example, if the sash weighs 16lbs, you would need to select the 8lb coil from the list of Series 152 Coil Balances.

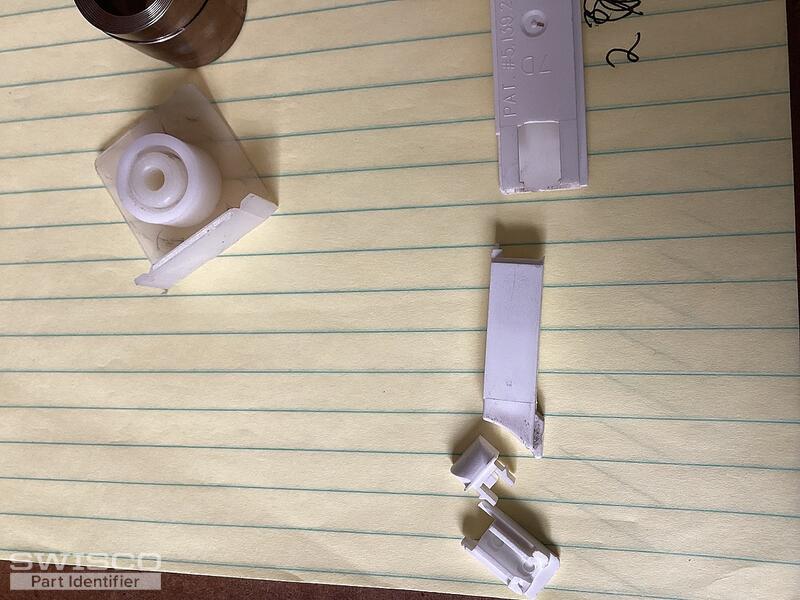

The 33-072 is used to secure the coil balance to the shoe. You may also need the 15-143 Coil Bushing, the 15-144 Coil Bushing Cap, and the 15-145 Coil Support Barrel if you cannot reuse your existing cover.
