Alside 80 series single hung 33" balance needed

Home Owner from 95441
Hi,
I would like to purchase two Alside 80 series single hung:

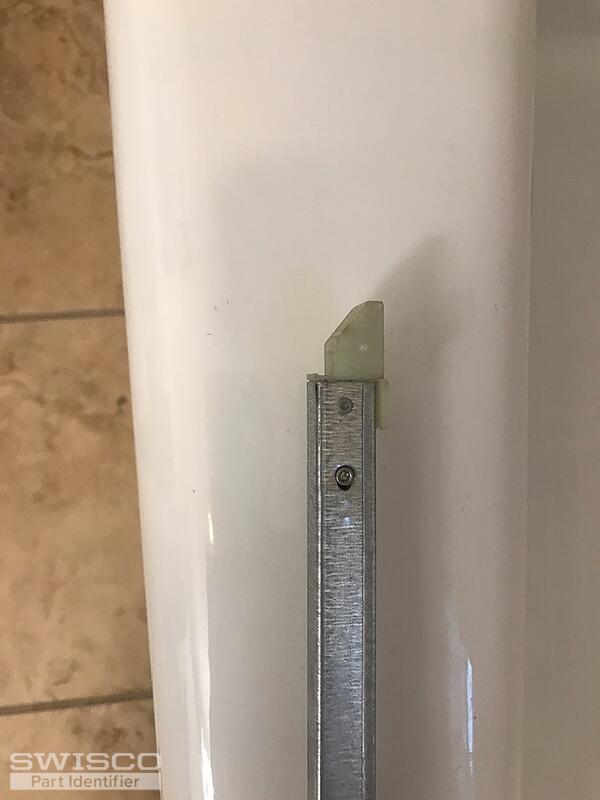

33" balance replacements that include the cable inside (which broke). The printed number on the side is:86 32-2 GC5 CMC 87. It appears to have a winged plastic part on each end attached.

Thank you!
2 user uploaded images
4 Replies
Emily
Emily from SWISCO
SWISCO
Expert

Hi there!

We'd be happy to help, but we'll need to see both the top and bottom nylon fittings. I can only make out the top fitting in your pictures. Take a look at the video below, it will go over exactly what we need to see to make a recommendation.

Home Owner from 95441
Thanks !it is 33" long and here are pictures of the top and bottom sides and front. Also I need to order the button part for the same ALSIDE 80 series single hung window
5 user uploaded images
Tom
Tom from SWISCO
SWISCO
Expert

Hey there, I can help you out from here on. What you have here is a special type of balance that will have to be a custom order. The key detail here is the stamp; specifically, how your stamp starts with "86." That tells me that your balance has a special calibration that isn't matched by any of our standard parts.

Thankfully the photos and info you provided tell me everything I need to get started. What I'll do now is email you a purchase link and price quote that you can use to place an order on our site. Please let me know if you had any questions or wanted to make any changes and I would be happy to do so.

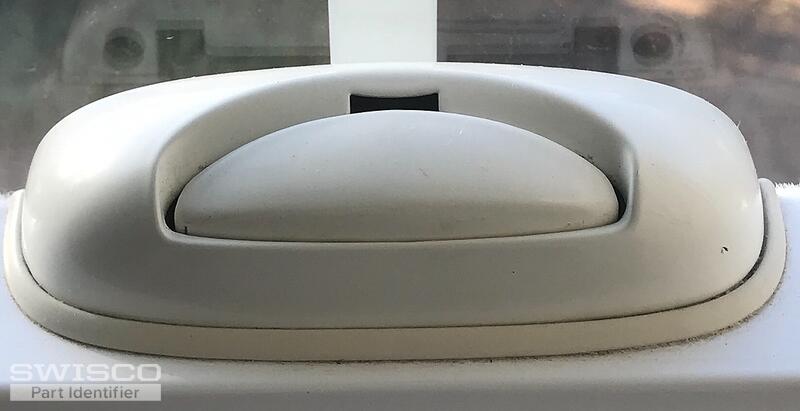

As for your lock, we don't have an exact match but you can consider our 90-252, as well as the 90-253 cover (sold separately). These may work as a substitute but I'm honestly not sure. I've never come across your exact style before.
