Alside Excalibur Double Hung Window Glide

A quick learner says:
September 15, 2017
Looking for window glide for Alside Excalibur Window has red marking on bottom of glide and double springs attached to it
Profile picture of Tom
Tom from SWISCO responded:
September 15, 2017
Can we see photos of this glide, removed from the window? We're having trouble visualizing what you might need.
A quick learner from Malden Ma. 02148 says:
September 17, 2017

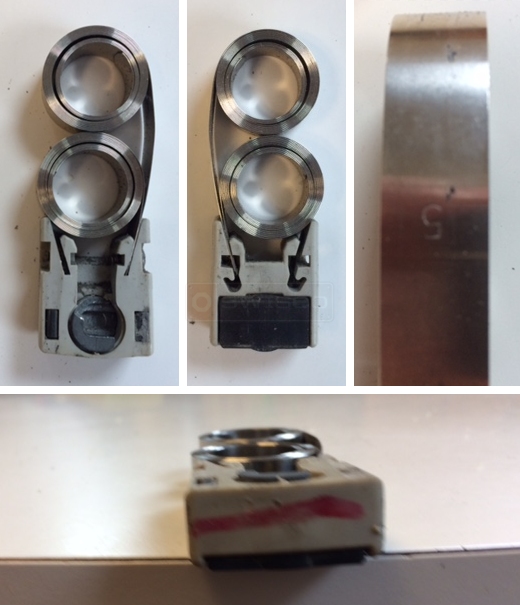

Here are the pictures you requested. The springs are both stamped with the number 5. The cam is broken where the window sets in don't know if you can just get the glide only without the springs.
Coil assembly
Profile picture of Tom
Tom from SWISCO responded:
September 20, 2017
Ah, this is a coil balance assembly. The shoe is likely our 15-177, which uses Series 152 coils. Your particular coil would be S152-5. Be sure to check the dimensions before you order.
Coil Balance Shoe, Slate Blue
Coil Balance Shoe, Slate Blue
15-177
$3.47
5 lb Series 152 Coil Balance
5 lb Series 152 Coil Balance
S152-5
$4.80
