"Hello,
I have Alside Excalibur double hung windows and I need coil balance shoes and coils.
I have a total of 17 windows. I have changed some of them in the past, but I have a few more that need changing.
My window sizes are below:Bottom sash is 29"W X 19"H
Top sash is 28"W X 18"H.Bottom sash is 33W X 19"H
Top sash is 32W X 18"H.Bottom sash is 21"W X 27"H
Top sash is 20"W X 26"H.
I also need a couple pivit pins? that screw into the bottom of the sash.
Can you please let me know if you have these parts.
Thank you so much for your help.
Sincerely,
Mark
|
Jasmine from SWISCO responded:
April 10, 2023
Thanks for reaching out! I am confident we have a replacement coil balance assemble we can recommend for you however, I won't be able to identify them by the brand name and the window information alone. I'll need to see a photo of the pivot shoe, the pivot bar, as well as the other compatible hardware to confirm the most accurate replacements for your window. You'll also need to have them removed to confirm any measurements and any stamps that could be on the coils, this will be especially important concerning the window weight. |
|
|
Jasmine from SWISCO responded:
April 13, 2023

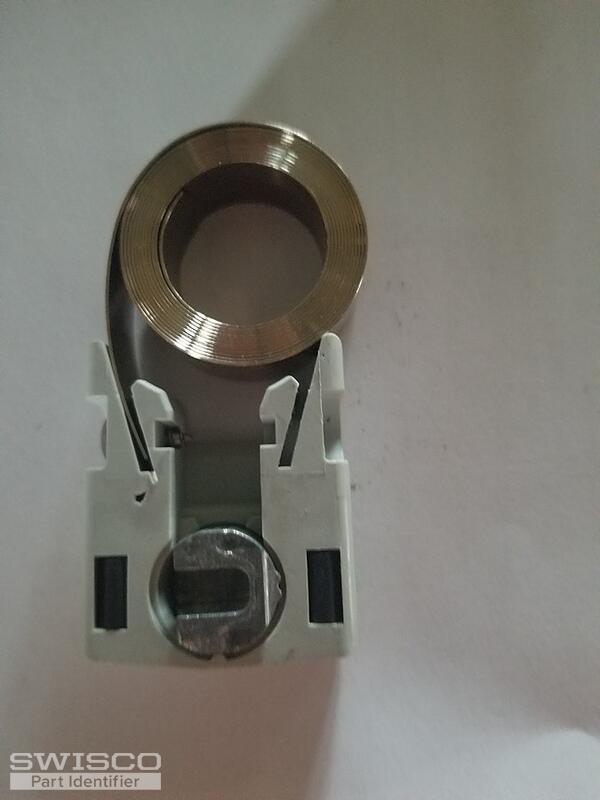

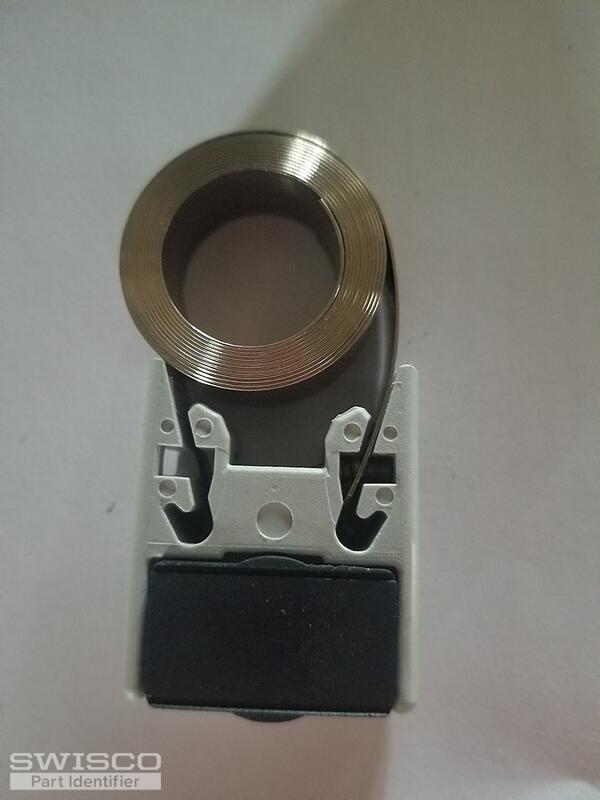

Thanks for reaching out! Your coil balance pivot shoe appears to be our part 15-177. Compare the dimensions to your existing shoe to confirm that this is the right replacement.
Alternate image for 15-177

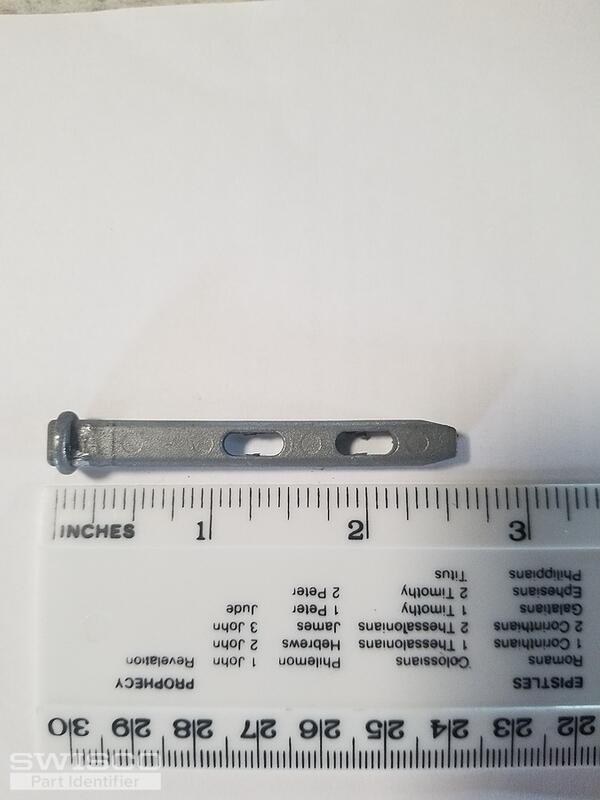

The compatible coil balance spring would be the Series 152 coils. Your pivot bar looks like it could be the 26-030. I am confident these are the replacement pivot bars you'll need.
Detail of 26-030
|
