Alside replacement window parts

Question

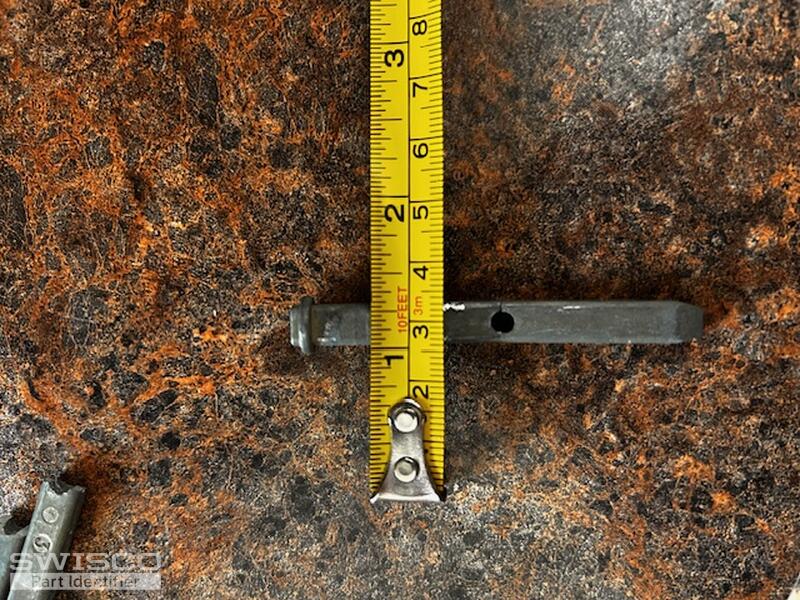

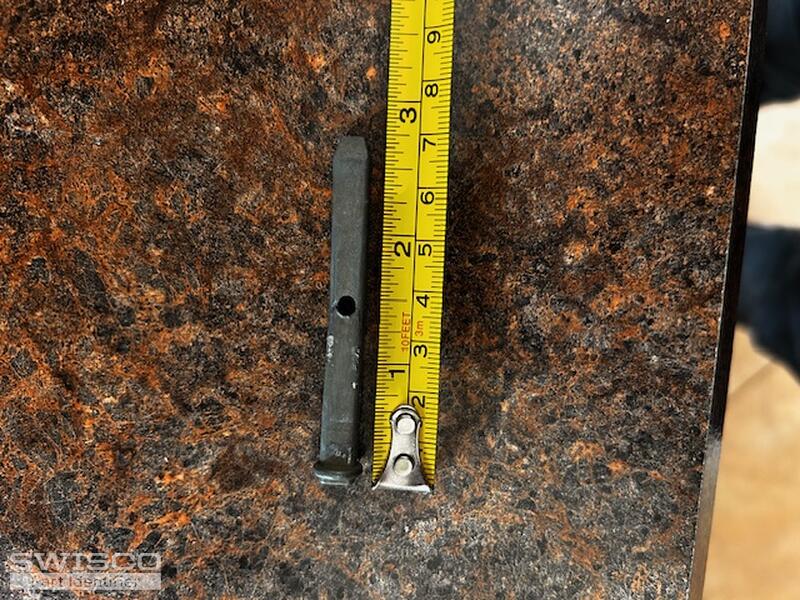

Need pivot pins and balance brake shoes for Alside replacement windows from 2007.

Jasmine · Accepted Answer

The window shoe you'll need for this repair is likely to be the 15-177 Coil Balance Shoe. The pivot bar reminds me of the 26-226, which is commonly used with this shoe. Another option for the pivot bar is the 26-352.

Be sure to carefully compare their dimensions on the website to confirm that the shoe is correct and determine the best replacement for the pivot bar.

These pivot shoes are compatible with our Series 152 Coil Balance. It is attached to the shoe using the 33-072 screw. For instructions on selecting the correct coil weight option, please see the tutorial below. It uses a different assembly but the process is the same.

If you need replacements for the coils supports, the 15-143 Coil Bushing, 15-144 Coil Bushing Cap, and 15-145 Coil Support Barrel are used to replace them. All three snap together to complete the supports.
