American Craftsman Vinyl window

A quick learner from South Caroilina says:
April 20, 2016

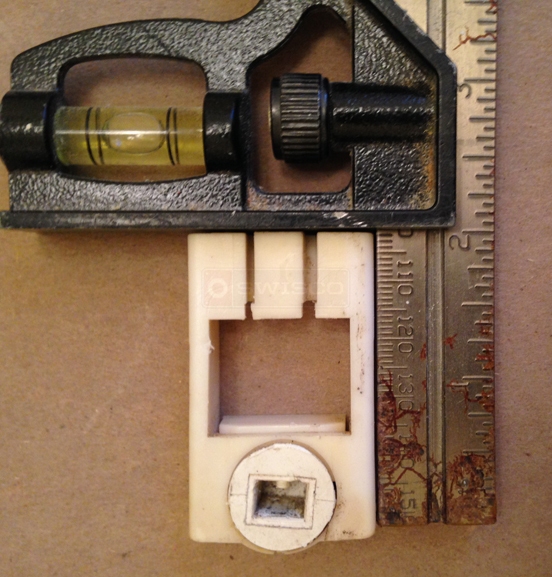

Here are 3 photos of the Pivot lock shoe i need. Thanks Les

there is a number on the window. #482295 cam from Home Depot in the 90's
User submitted image of their window hardware.
Profile picture of Paul
Paul from SWISCO responded:
April 21, 2016
Please see our 15-046 pivot shoe. I think this may work, but you should compare our measurements to yours in order to confirm. The most vital measurements are the width and depth.
A quick learner from South Caroilina says:
April 21, 2016
Thank you!!
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
