Quick Learner from San Francisco

Dec 12, 2023 6:30 pm

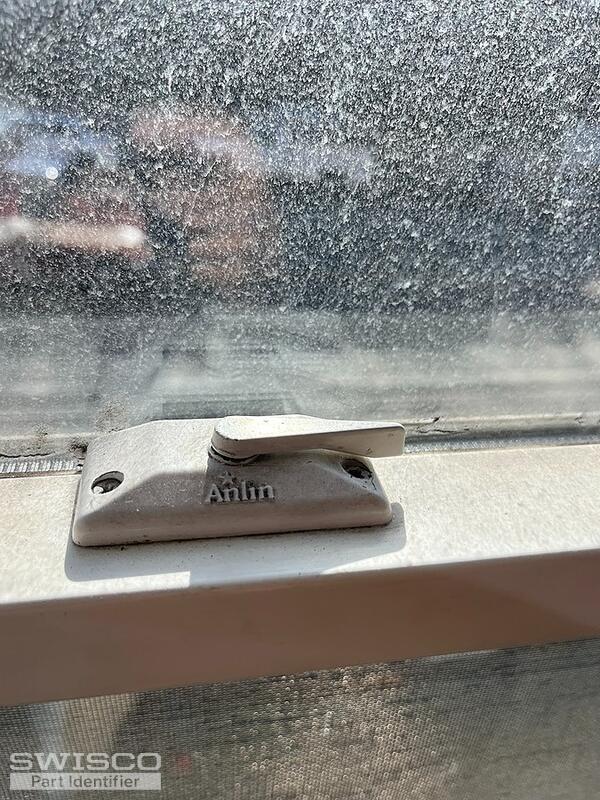

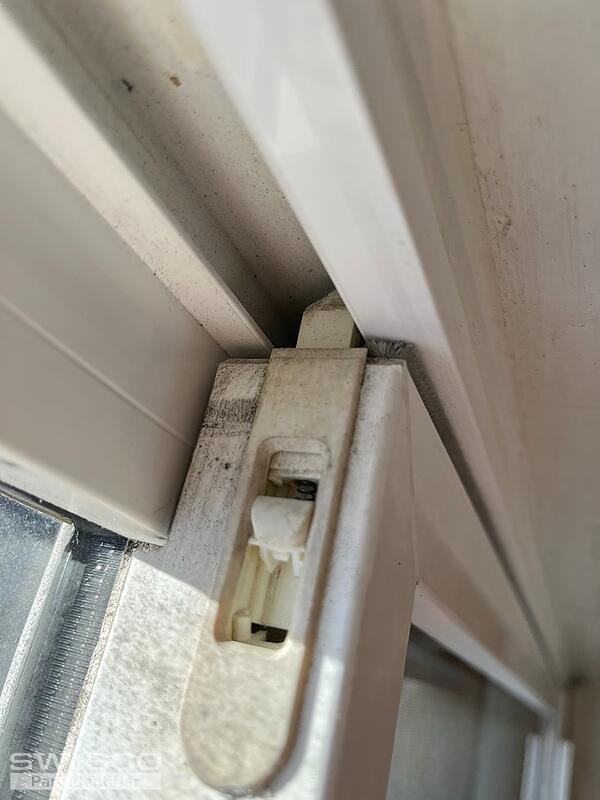

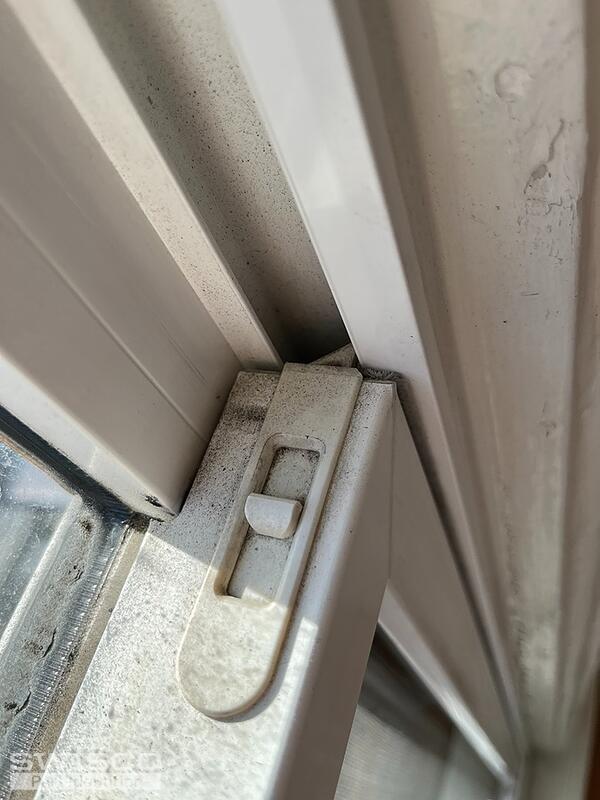

Hello. The photos show an Anlin window part with a broken spring. I included a photo of the same part intact/unbroken as well.

3 user uploaded images

6 Replies

Emily from SWISCO

Dec 13, 2023 2:48 pm

Hi there!

Start by taking a look at the 26-243 and 26-244 tilt latches. These look similar to your old one. Review the dimensions and see how they compare with yours.

Quick Learner from San Francisco

Dec 18, 2023 3:43 pm

Hi. The measurements seem to match, but these measurements match 26-420 as well.

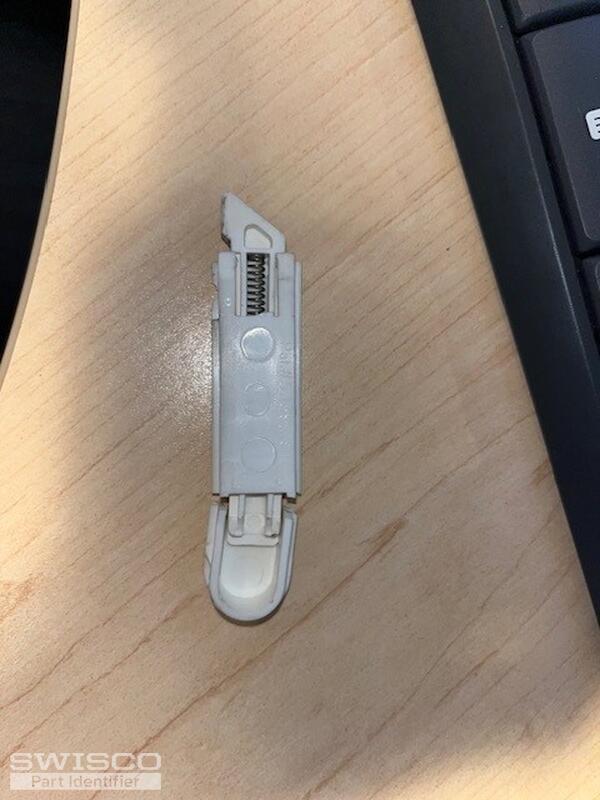

I pulled the broken pieces out and can see a patent# 5.139.29 imprinted on the bottom of the piece.

1 user uploaded image

Emily from SWISCO

Dec 19, 2023 7:58 am

The difference between the 26-243/26-244 and 26-419/26-420 is the tab located underneath the latch. See the images below. The 26-243's tab is 3/16" and the 26-419 is 3/8". I'm not sure which case yours may be since this latch appears to be damaged so you may want to check one in undamaged condition to be sure.

Alternate view of 26-243

Alternate view of 26-419

Quick Learner from San Francisco

Dec 19, 2023 11:57 am

Thank you. I believe your original recommendations are correct ? other posts mentioned the same patent number? and I have purchased those to try out.

I very much appreciate this service and support ? best place for diy window maintenance!

Emily from SWISCO

Dec 19, 2023 12:06 pm

It's my pleasure to help. Please let me know if I can be of further assistance and good luck with the repair!
