Anlin coil balnace

Question

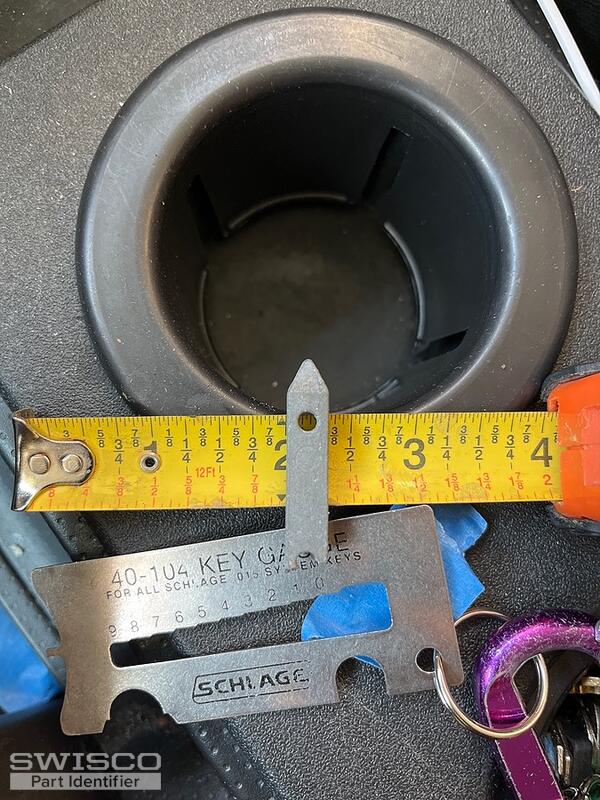

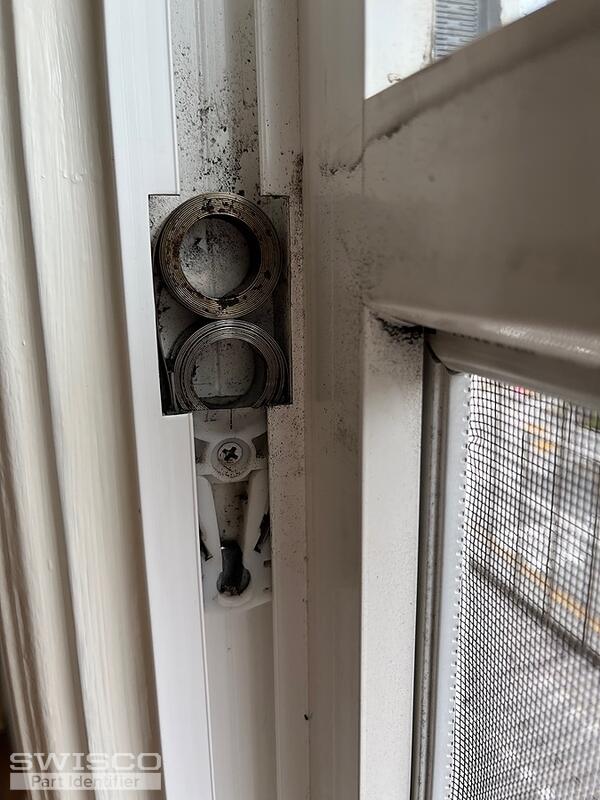

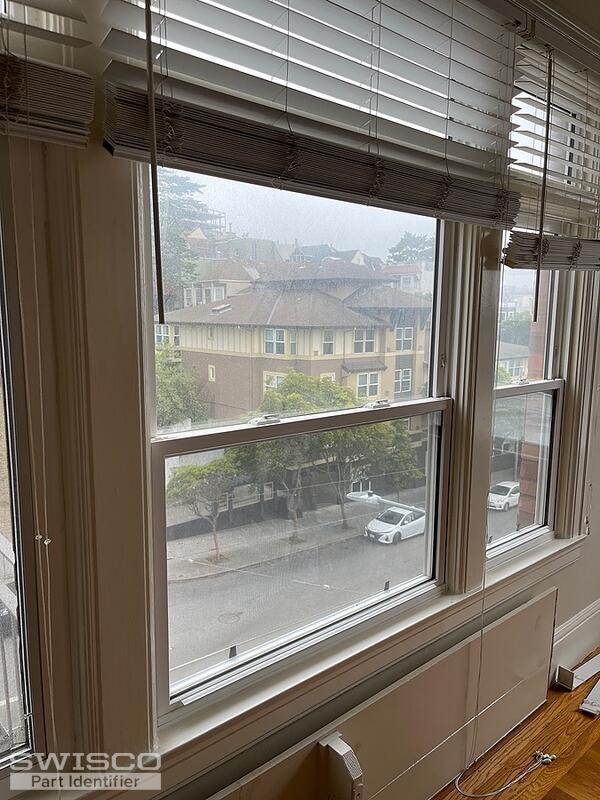

Hello. I have an old Anlin window and need new assembly for the coil balance and balance feet. The parts are corroded so I can't see exactly what the numbers are. Can you help based on these photos?

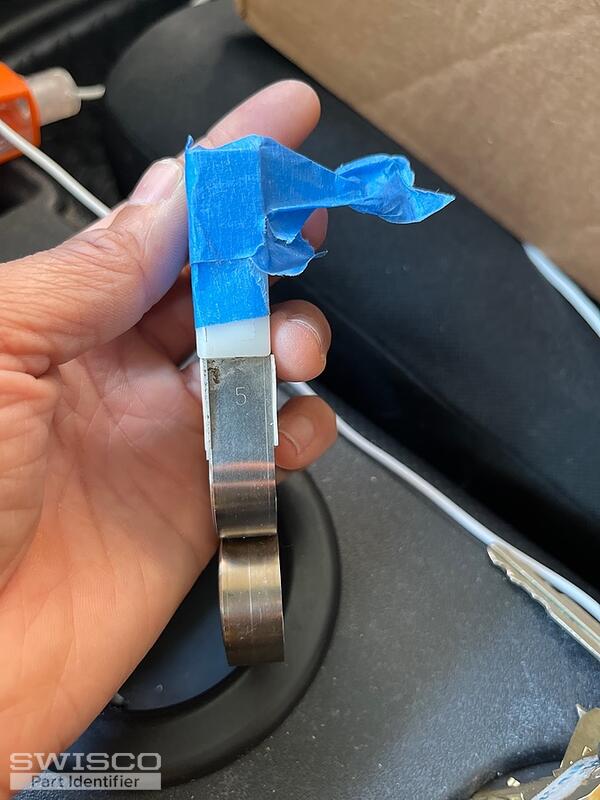

One of the white pieces holding a coil has a 12 on it. And one coil has a 5

Casey · Accepted Answer

Hello,

Your balance assembly resembles the S140 shown below depending on how the dimensions compare to yours. The 12 on the cover indicates that you would need the S140-12 to support a sash between 23-24.99 lbs. I would recommend weighing your sash to confirm that it falls within the supported weight range.

Alternate image for S140-12

As for the pivot bar, we've related a few options that are commonly used with the assembly. We would need to see an undamaged version removed from one of your windows with written-out dimensions to confirm the best match. Thank you!
